一。环境概述
k8s环境：1台master节点，3台node节点。
在三个节点上搭建MGR集群。mysql的数据文件是挂载在本地存储，在镜像制作完成后，需要把初始化后的数据文件copy到三个节点本地的挂载点/data/mysql/data/，另外需要修改auto.cnf里面的uuid，让三个节点的uuid不同。
二。搭建步骤
制作mysql 8.0.15镜像 此步骤略过，参照mysql官方的二进制包安装步骤， https://dev.mysql.com/doc/refman/8.0/en/binary-installation.html。 安装完毕后制作成镜像。
准备生成三个节点pod的相关yaml文件。 ---创建namespace的文件namespace.yaml: apiVersion: v1 kind: Namespace metadata: name: mysqldb ---节点1的configmap文件mysql-mgr-cnf-0.yaml： apiVersion: v1 data: mysql-mgr-0.cnf: | [mysqld] port = 3306 character_set_server = utf8 socket = /tmp/mysql.sock basedir = /usr/local/mysql log-error = /data/mysql/data/mysql.err pid-file = /data/mysql/data/mysql.pid datadir = /data/mysql/data server_id = 092832 log_bin = mysql-bin relay-log = relay-bin #back_log = 500 #max_connections = 3000 #wait_timeout = 5022397 interactive_timeout = 5022397 max_connect_errors = 1000 relay-log-recovery=1 #max_allowed_packet = 32M sort_buffer_size = 4M read_buffer_size = 4M join_buffer_size = 8M thread_cache_size = 64 #tmp_table_size = 256M log_slave_updates=1 long_query_time = 1 slow_query_log = 1 slow_query_log_file = /data/mysql/data/slow_sql.log skip-name-resolve sql_mode=NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES innodb_buffer_pool_size=700M #innodb_data_file_path = ibdata1:1024M:autoextend innodb_flush_log_at_trx_commit=1 innodb_log_buffer_size = 16M innodb_log_file_size = 256M innodb_log_files_in_group = 2 innodb_max_dirty_pages_pct = 50 sync_binlog=1 master_info_repository=TABLE relay_log_info_repository=TABLE log_timestamps=SYSTEM gtid_mode = ON enforce_gtid_consistency = ON master_info_repository = TABLE relay_log_info_repository = TABLE log_slave_updates = ON binlog_checksum = NONE log_slave_updates = ON slave_parallel_type=LOGICAL_CLOCK slave_parallel_workers=8 slave-preserve-commit-order=on #group_replication_compression_threshold=200000 transaction_write_set_extraction = XXHASH64 loose-group_replication_group_name="01e5fb97-be64-41f7-bafd-3afc7a6ab555" loose-group_replication_start_on_boot=off loose-group_replication_local_address="mysql-mgr-0.mgrtest.mysqldb.svc.cluster.local.:13306" loose-group_replication_group_seeds="mysql-mgr-0.mgrtest.mysqldb.svc.cluster.local.:13306,mysql-mgr-1.mgrtest.mysqldb.svc.cluster.local.:13306,mysql-mgr-2.mgrtest.mysqldb.svc.cluster.local.:13306" loose-group_replication_bootstrap_group = off loose-group_replication_ip_whitelist='10.244.0.0/16,172.17.0.0/16,10.229.0.0/16,10.228.0.0/16' report_host = mysql-mgr-0.mgrtest.mysqldb.svc.cluster.local [mysqldump] quick max_allowed_packet = 32M kind: ConfigMap metadata: name: mysql-mgr-0-cnf namespace: mysqldb ---节点2的configmap文件mysql-mgr-cnf-1.yaml： apiVersion: v1 data: mysql-mgr-1.cnf: | [mysqld] port = 3306 character_set_server = utf8 socket = /tmp/mysql.sock basedir = /usr/local/mysql log-error = /data/mysql/data/mysql.err pid-file = /data/mysql/data/mysql.pid datadir = /data/mysql/data server_id = 092231 log_bin = mysql-bin relay-log = relay-bin #back_log = 500 #max_connections = 3000 #wait_timeout = 5022397 interactive_timeout = 5022397 max_connect_errors = 1000 relay-log-recovery=1 #max_allowed_packet = 32M sort_buffer_size = 4M read_buffer_size = 4M join_buffer_size = 8M thread_cache_size = 64 #tmp_table_size = 256M log_slave_updates=1 long_query_time = 1 slow_query_log = 1 slow_query_log_file = /data/mysql/data/slow_sql.log skip-name-resolve sql_mode=NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES innodb_buffer_pool_size=700M #innodb_data_file_path = ibdata1:1024M:autoextend innodb_flush_log_at_trx_commit=1 innodb_log_buffer_size = 16M innodb_log_file_size = 256M innodb_log_files_in_group = 2 innodb_max_dirty_pages_pct = 50 sync_binlog=1 master_info_repository=TABLE relay_log_info_repository=TABLE log_timestamps=SYSTEM gtid_mode = ON enforce_gtid_consistency = ON master_info_repository = TABLE relay_log_info_repository = TABLE log_slave_updates = ON binlog_checksum = NONE log_slave_updates = ON slave_parallel_type=LOGICAL_CLOCK slave_parallel_workers=8 slave-preserve-commit-order=on #group_replication_compression_threshold=200000 transaction_write_set_extraction = XXHASH64 loose-group_replication_group_name="01e5fb97-be64-41f7-bafd-3afc7a6ab555" loose-group_replication_start_on_boot=off loose-group_replication_local_address="mysql-mgr-1.mgrtest.mysqldb.svc.cluster.local.:13306" loose-group_replication_group_seeds="mysql-mgr-0.mgrtest.mysqldb.svc.cluster.local.:13306,mysql-mgr-1.mgrtest.mysqldb.svc.cluster.local.:13306,mysql-mgr-2.mgrtest.mysqldb.svc.cluster.local.:13306" loose-group_replication_bootstrap_group = off loose-group_replication_ip_whitelist='10.244.0.0/16,172.17.0.0/16,10.229.0.0/16,10.228.0.0/16' report_host = mysql-mgr-1.mgrtest.mysqldb.svc.cluster.local [mysqldump] quick max_allowed_packet = 32M kind: ConfigMap metadata: name: mysql-mgr-1-cnf namespace: mysqldb ---节点3的configmap文件mysql-mgr-cnf-2.yaml： apiVersion: v1 data: mysql-mgr-2.cnf: | [mysqld] port = 3306 character_set_server = utf8 socket = /tmp/mysql.sock basedir = /usr/local/mysql log-error = /data/mysql/data/mysql.err pid-file = /data/mysql/data/mysql.pid datadir = /data/mysql/data server_id = 092132 log_bin = mysql-bin relay-log = relay-bin #back_log = 500 #max_connections = 3000 #wait_timeout = 5022397 interactive_timeout = 5022397 max_connect_errors = 1000 relay-log-recovery=1 #max_allowed_packet = 32M sort_buffer_size = 4M read_buffer_size = 4M join_buffer_size = 8M thread_cache_size = 64 #tmp_table_size = 256M log_slave_updates=1 long_query_time = 1 slow_query_log = 1 slow_query_log_file = /data/mysql/data/slow_sql.log skip-name-resolve sql_mode=NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES innodb_buffer_pool_size=700M #innodb_data_file_path = ibdata1:1024M:autoextend innodb_flush_log_at_trx_commit=1 innodb_log_buffer_size = 16M innodb_log_file_size = 256M innodb_log_files_in_group = 2 innodb_max_dirty_pages_pct = 50 sync_binlog=1 master_info_repository=TABLE relay_log_info_repository=TABLE log_timestamps=SYSTEM gtid_mode = ON enforce_gtid_consistency = ON master_info_repository = TABLE relay_log_info_repository = TABLE log_slave_updates = ON binlog_checksum = NONE log_slave_updates = ON slave_parallel_type=LOGICAL_CLOCK slave_parallel_workers=8 slave-preserve-commit-order=on #group_replication_compression_threshold=200000 transaction_write_set_extraction = XXHASH64 loose-group_replication_group_name="01e5fb97-be64-41f7-bafd-3afc7a6ab555" loose-group_replication_start_on_boot=off loose-group_replication_local_address="mysql-mgr-2.mgrtest.mysqldb.svc.cluster.local.:13306" loose-group_replication_group_seeds="mysql-mgr-0.mgrtest.mysqldb.svc.cluster.local.:13306,mysql-mgr-1.mgrtest.mysqldb.svc.cluster.local.:13306,mysql-mgr-2.mgrtest.mysqldb.svc.cluster.local.:13306" loose-group_replication_bootstrap_group = off loose-group_replication_ip_whitelist='10.244.0.0/16,172.17.0.0/16,10.229.0.0/16,10.228.0.0/16' report_host = mysql-mgr-2.mgrtest.mysqldb.svc.cluster.local [mysqldump] quick max_allowed_packet = 32M kind: ConfigMap metadata: name: mysql-mgr-2-cnf namespace: mysqldb ----节点1的pod的yaml文件: apiVersion: v1 kind: Pod metadata: name: mysql-mgr-0 namespace: mysqldb labels: name: mysql-mgr spec: affinity: nodeAffinity: requiredDuringSchedulingIgnoredDuringExecution: nodeSelectorTerms: - matchExpressions: - key: mysqlrole operator: In values: ["mysql-mgr-0"] hostname: mysql-mgr-0 subdomain: mgrtest containers: - image: 172.16.110.102:5000/mysql8.0:latest name: mysql-mgr-0 imagePullPolicy: IfNotPresent command: [ "/bin/bash", "-ce", "cd /usr/local/mysql && bin/mysqld_safe --defaults-file=/etc/my.cnf && tail -f /dev/null" ] #env: #- name: MYSQL_ROOT_PASSWORD # value: noc-mysql ports: - containerPort: 3306 volumeMounts: - name: tz-config mountPath: /etc/localtime - name: mysql-data mountPath: /data/mysql/data/ - name: mysql-config mountPath: /etc/my.cnf subPath: my.cnf env: - name: INNODB_BUFFER_POOL_SIZE value: 500M #- name: REPORT_HOST # value: mysql-mgr-0.mgrtest.mysqldb.svc.cluster.local volumes: - name: tz-config hostPath: path: /etc/localtime - name: mysql-data hostPath: path: /data/mysql/data/ - name: mysql-config configMap: name: mysql-mgr-0-cnf items: - key: mysql-mgr-0.cnf path: my.cnf ----节点2的pod的yaml文件: apiVersion: v1 kind: Pod metadata: name: mysql-mgr-1 namespace: mysqldb labels: name: mysql-mgr spec: affinity: nodeAffinity: requiredDuringSchedulingIgnoredDuringExecution: nodeSelectorTerms: - matchExpressions: - key: mysqlrole operator: In values: ["mysql-mgr-1"] hostname: mysql-mgr-1 subdomain: mgrtest containers: - image: 172.16.110.102:5000/mysql8.0:latest name: mysql-mgr-1 imagePullPolicy: IfNotPresent command: [ "/bin/bash", "-ce", "cd /usr/local/mysql && bin/mysqld_safe --defaults-file=/etc/my.cnf && tail -f /dev/null" ] #env: #- name: MYSQL_ROOT_PASSWORD # value: noc-mysql ports: - containerPort: 3306 volumeMounts: - name: tz-config mountPath: /etc/localtime - name: mysql-data mountPath: /data/mysql/data - name: mysql-config mountPath: /etc/my.cnf subPath: my.cnf env: - name: INNODB_BUFFER_POOL_SIZE value: 500M volumes: - name: tz-config hostPath: path: /etc/localtime - name: mysql-data hostPath: path: /data/mysql/data/ - name: mysql-config configMap: name: mysql-mgr-1-cnf items: - key: mysql-mgr-1.cnf path: my.cnf ---节点3的pod的yaml文件: apiVersion: v1 kind: Pod metadata: name: mysql-mgr-2 namespace: mysqldb labels: name: mysql-mgr spec: affinity: nodeAffinity: requiredDuringSchedulingIgnoredDuringExecution: nodeSelectorTerms: - matchExpressions: - key: mysqlrole operator: In values: ["mysql-mgr-2"] hostname: mysql-mgr-2 subdomain: mgrtest containers: - image: 172.16.110.102:5000/mysql8.0:latest name: mysql-mgr-2 imagePullPolicy: IfNotPresent command: [ "/bin/bash", "-ce", "cd /usr/local/mysql && bin/mysqld_safe --defaults-file=/etc/my.cnf && tail -f /dev/null" ] #env: #- name: MYSQL_ROOT_PASSWORD # value: noc-mysql ports: - containerPort: 3306 volumeMounts: - name: tz-config mountPath: /etc/localtime - name: mysql-data mountPath: /data/mysql/data - name: mysql-config mountPath: /etc/my.cnf subPath: my.cnf env: - name: INNODB_BUFFER_POOL_SIZE value: 500M volumes: - name: tz-config hostPath: path: /etc/localtime - name: mysql-data hostPath: path: /data/mysql/data/ - name: mysql-config configMap: name: mysql-mgr-2-cnf items: - key: mysql-mgr-2.cnf path: my.cnf ---为三个pod创建的service的yaml文件 apiVersion: v1 kind: Service metadata: name: mgrtest namespace: mysqldb spec: selector: name: mysql-mgr clusterIP: None ports: - name: foo port: 3306 targetPort: 3306
创建namespace，service，configmap，pod
kubectl create -f namespace.yaml
kubectl create -f mysql-mgr-svc.yaml
kubectl create -f mysql-mgr-cnf-0.yaml
kubectl create -f mysql-mgr-cnf-1.yaml
kubectl create -f mysql-mgr-cnf-2.yaml
kubectl create -f mysql-mgr-0-pod.yaml
kubectl create -f mysql-mgr-1-pod.yaml
kubectl create -f mysql-mgr-2-pod.yaml

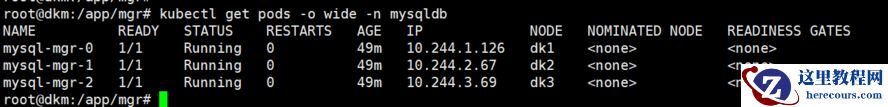

创建后如下图所示:
配置节点1：
root@dkm:/app/mgr# kubectl exec -it mysql-mgr-0 -n mysqldb /bin/bash
root@mysql-mgr-0:/# /usr/local/mysql/bin/mysql -uroot -p
alter user 'root'@'localhost' identified by 'Mysql123!@#';
set sql_log_bin=0;
create user rpl_user@'%' identified by 'Rpl_pass@123';
grant replication slave on *.* to rpl_user@'%';
flush privileges;
set sql_log_bin=1;
change master to master_user='rpl_user',master_password='Rpl_pass@123' for channel 'group_replication_recovery';
install PLUGIN group_replication SONAME 'group_replication.so';
reset master;
set global group_replication_single_primary_mode=FALSE;
set global group_replication_enforce_update_everywhere_checks=TRUE;
set global group_replication_bootstrap_group=ON;
start group_replication;
set global group_replication_bootstrap_group=OFF;

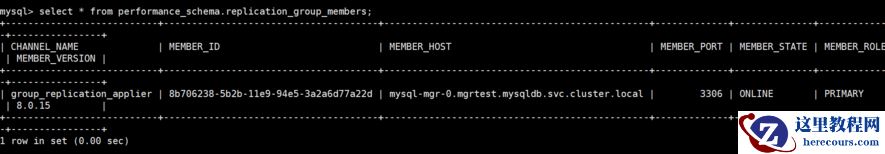

select * from performance_schema.replication_group_members;
配置节点2：
set sql_log_bin=0;
create user rpl_user@'%' identified by 'Rpl_pass@123';
grant replication slave on *.* to rpl_user@'%';
flush privileges;
set sql_log_bin=1;
change master to master_user='rpl_user',master_password='Rpl_pass@123' for channel 'group_replication_recovery';
install PLUGIN group_replication SONAME 'group_replication.so';
reset master;
set global group_replication_single_primary_mode=FALSE;
set global group_replication_enforce_update_everywhere_checks=TRUE;
set global group_replication_recovery_get_public_key=on;
start group_replication;
select * from performance_schema.replication_group_members;
配置节点3：
set sql_log_bin=0;
create user rpl_user@'%' identified by 'Rpl_pass@123';
grant replication slave on *.* to rpl_user@'%';
flush privileges;
set sql_log_bin=1;
change master to master_user='rpl_user',master_password='Rpl_pass@123' for channel 'group_replication_recovery';
install PLUGIN group_replication SONAME 'group_replication.so';
reset master;
set global group_replication_single_primary_mode=FALSE;
set global group_replication_enforce_update_everywhere_checks=TRUE;
set global group_replication_recovery_get_public_key=on;
start group_replication;

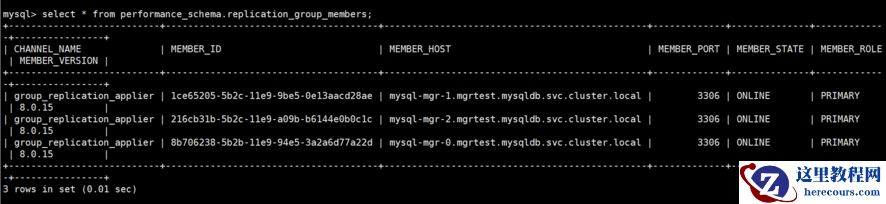

select * from performance_schema.replication_group_members;
总结： （1）节点之间是通过域名互相通讯，域名的构成: hostname.service.namespace.svc.cluster.local. （2）注意在每个节点的配置文件里配置report_host为该节点的域名，也就是hostname.service.namespace.svc.cluster.local。否则会报错： 2019-04-10T09:16:53.607069+08:00 55 [ERROR] [MY-010584] [Repl] Slave I/O for channel 'group_replication_recovery': error connecting to master 'rpl_user@mysql-mgr-0:3306' - retry-time: 60 retries: 1, Error_code: MY-002005 ... 2019-04-10T09:17:53.682099+08:00 24 [ERROR] [MY-011582] [Repl] Plugin group_replication reported: 'There was an error when connecting to the donor server. Please check that group_replication_recovery channel credentials and all MEMBER_HOST column values of performance_schema.replication_group_members table are correct and DNS resolvable.'
