Mysql MHA部署-06手动切换

来源：这里教程网时间：2026-03-01 15:00:57 作者：

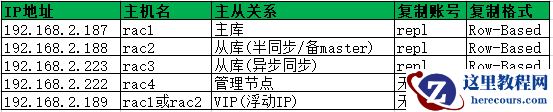

Mysql MHA部署-06手动切换 一 Mysql MHA部署-01介绍 二 Mysql MHA部署-02主从复制 三 Mysql MHA部署-03MHA软件安装 四 Mysql MHA部署-04MHA配置 五 Mysql MHA部署-05故障转移 六 Mysql MHA部署-06手动切换 七 Mysql MHA部署-07常见问题 架构说明：

参考： http://www.zhaibibei.cn/mysql/mha/

1 检查从库现有状态(188,223) ---show slave status\G 2 查看管理节点日志(222) 通过如下命令事实查看MHA当前状态 tail -f /etc/mha/manager/mha.log 3 关闭MHA的管理进程(222) [root@rac4 ~]# masterha_stop -conf=/etc/mha/mha.conf MHA Manager is not running on mha(2:NOT_RUNNING). 4.手动切换 相关命令如下： masterha_master_switch -master_state=alive –orig_master_is_new_slave –conf=/etc/mha/mha.conf -master_state=alive 代表告诉MHA原master还是存活的，不需要将其从配置文件删除 –orig_master_is_new_slave 参数代表原master会自动同步新的master --还有一些其他的参数如下 -running_updates_limit 如果主库的写操作时间超过了该参数，则退出切换 –interactive=0 代表直接确认，不需要输入YES 切换过程如下： [root@rac4 ~]# masterha_master_switch -master_state=alive -orig_master_is_new_slave -conf=/etc/mha/mha.conf Sat Mar 14 22:17:37 2020 - [info] MHA::MasterRotate version 0.56. Sat Mar 14 22:17:37 2020 - [info] Starting online master switch.. Sat Mar 14 22:17:37 2020 - [info] Sat Mar 14 22:17:37 2020 - [info] * Phase 1: Configuration Check Phase.. Sat Mar 14 22:17:37 2020 - [info] Sat Mar 14 22:17:37 2020 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping. Sat Mar 14 22:17:37 2020 - [info] Reading application default configuration from /etc/mha/mha.conf.. Sat Mar 14 22:17:37 2020 - [info] Reading server configuration from /etc/mha/mha.conf.. Sat Mar 14 22:17:38 2020 - [info] GTID failover mode = 1 Sat Mar 14 22:17:38 2020 - [info] Current Alive Master: rac1(192.168.2.187:3306) Sat Mar 14 22:17:38 2020 - [info] Alive Slaves: Sat Mar 14 22:17:38 2020 - [info] rac2(192.168.2.188:3306) Version=5.7.28-log (oldest major version between slaves) log-bin:enabled Sat Mar 14 22:17:38 2020 - [info] GTID ON Sat Mar 14 22:17:38 2020 - [info] Replicating from 192.168.2.187(192.168.2.187:3306) Sat Mar 14 22:17:38 2020 - [info] Primary candidate for the new Master (candidate_master is set) Sat Mar 14 22:17:38 2020 - [info] rac3(192.168.2.223:3306) Version=5.7.28-log (oldest major version between slaves) log-bin:enabled Sat Mar 14 22:17:38 2020 - [info] GTID ON Sat Mar 14 22:17:38 2020 - [info] Replicating from 192.168.2.187(192.168.2.187:3306) Sat Mar 14 22:17:38 2020 - [info] Not candidate for the new Master (no_master is set) It is better to execute FLUSH NO_WRITE_TO_BINLOG TABLES on the master before switching. Is it ok to execute on rac1(192.168.2.187:3306)? (YES/no): YES Sat Mar 14 22:19:01 2020 - [info] Executing FLUSH NO_WRITE_TO_BINLOG TABLES. This may take long time.. Sat Mar 14 22:19:01 2020 - [info] ok. Sat Mar 14 22:19:01 2020 - [info] Checking MHA is not monitoring or doing failover.. Sat Mar 14 22:19:01 2020 - [info] Checking replication health on rac2.. Sat Mar 14 22:19:01 2020 - [info] ok. Sat Mar 14 22:19:01 2020 - [info] Checking replication health on rac3.. Sat Mar 14 22:19:01 2020 - [info] ok. Sat Mar 14 22:19:01 2020 - [info] Searching new master from slaves.. Sat Mar 14 22:19:01 2020 - [info] Candidate masters from the configuration file: Sat Mar 14 22:19:01 2020 - [info] rac1(192.168.2.187:3306) Version=5.7.28-log log-bin:enabled Sat Mar 14 22:19:01 2020 - [info] GTID ON Sat Mar 14 22:19:01 2020 - [info] rac2(192.168.2.188:3306) Version=5.7.28-log (oldest major version between slaves) log-bin:enabled Sat Mar 14 22:19:01 2020 - [info] GTID ON Sat Mar 14 22:19:01 2020 - [info] Replicating from 192.168.2.187(192.168.2.187:3306) Sat Mar 14 22:19:01 2020 - [info] Primary candidate for the new Master (candidate_master is set) Sat Mar 14 22:19:01 2020 - [info] Non-candidate masters: Sat Mar 14 22:19:01 2020 - [info] rac3(192.168.2.223:3306) Version=5.7.28-log (oldest major version between slaves) log-bin:enabled Sat Mar 14 22:19:01 2020 - [info] GTID ON Sat Mar 14 22:19:01 2020 - [info] Replicating from 192.168.2.187(192.168.2.187:3306) Sat Mar 14 22:19:01 2020 - [info] Not candidate for the new Master (no_master is set) Sat Mar 14 22:19:01 2020 - [info] Searching from candidate_master slaves which have received the latest relay log events.. Sat Mar 14 22:19:01 2020 - [info] From: rac1(192.168.2.187:3306) (current master) +--rac2(192.168.2.188:3306) +--rac3(192.168.2.223:3306) To: rac2(192.168.2.188:3306) (new master) +--rac3(192.168.2.223:3306) +--rac1(192.168.2.187:3306) Starting master switch from rac1(192.168.2.187:3306) to rac2(192.168.2.188:3306)? (yes/NO): yes Sat Mar 14 22:19:32 2020 - [info] Checking whether rac2(192.168.2.188:3306) is ok for the new master.. Sat Mar 14 22:19:32 2020 - [info] ok. Sat Mar 14 22:19:32 2020 - [info] rac1(192.168.2.187:3306): SHOW SLAVE STATUS returned empty result. To check replication filtering rules, temporarily executing CHANGE MASTER to a dummy host. Sat Mar 14 22:19:32 2020 - [info] rac1(192.168.2.187:3306): Resetting slave pointing to the dummy host. Sat Mar 14 22:19:32 2020 - [info] ** Phase 1: Configuration Check Phase completed. Sat Mar 14 22:19:32 2020 - [info] Sat Mar 14 22:19:32 2020 - [info] * Phase 2: Rejecting updates Phase.. Sat Mar 14 22:19:32 2020 - [info] Sat Mar 14 22:19:32 2020 - [info] Executing master ip online change script to disable write on the current master: Sat Mar 14 22:19:32 2020 - [info] /etc/mha/script/master_ip_online_change --command=stop --orig_master_host=rac1 --orig_master_ip=192.168.2.187 --orig_master_port=3306 --orig_master_user='monitor' --orig_master_password='123456' --new_master_host=rac2 --new_master_ip=192.168.2.188 --new_master_port=3306 --new_master_user='monitor' --new_master_password='123456' --orig_master_ssh_user=root --new_master_ssh_user=root --orig_master_is_new_slave Sat Mar 14 22:19:32 2020 756531 Set read_only on the new master.. ok. Sat Mar 14 22:19:32 2020 761639 Set read_only=1 on the orig master.. ok. Sat Mar 14 22:19:32 2020 763740 Killing all application threads.. Sat Mar 14 22:19:32 2020 763785 done. Disabling the VIP an old master: rac1 eth0:2: ERROR while getting interface flags: No such device Sat Mar 14 22:19:33 2020 - [info] ok. Sat Mar 14 22:19:33 2020 - [info] Locking all tables on the orig master to reject updates from everybody (including root): Sat Mar 14 22:19:33 2020 - [info] Executing FLUSH TABLES WITH READ LOCK.. Sat Mar 14 22:19:33 2020 - [info] ok. Sat Mar 14 22:19:33 2020 - [info] Orig master binlog:pos is mysql-bin.000009:194. Sat Mar 14 22:19:33 2020 - [info] Waiting to execute all relay logs on rac2(192.168.2.188:3306).. Sat Mar 14 22:19:33 2020 - [info] master_pos_wait(mysql-bin.000009:194) completed on rac2(192.168.2.188:3306). Executed 0 events. Sat Mar 14 22:19:33 2020 - [info] done. Sat Mar 14 22:19:33 2020 - [info] Getting new master's binlog name and position.. Sat Mar 14 22:19:33 2020 - [info] mysql-bin.000006:3938 Sat Mar 14 22:19:33 2020 - [info] All other slaves should start replication from here. Statement should be: CHANGE MASTER TO MASTER_HOST='rac2 or 192.168.2.188', MASTER_PORT=3306, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='xxx'; Sat Mar 14 22:19:33 2020 - [info] Executing master ip online change script to allow write on the new master: Sat Mar 14 22:19:33 2020 - [info] /etc/mha/script/master_ip_online_change --command=start --orig_master_host=rac1 --orig_master_ip=192.168.2.187 --orig_master_port=3306 --orig_master_user='monitor' --orig_master_password='123456' --new_master_host=rac2 --new_master_ip=192.168.2.188 --new_master_port=3306 --new_master_user='monitor' --new_master_password='123456' --orig_master_ssh_user=root --new_master_ssh_user=root --orig_master_is_new_slave Sat Mar 14 22:19:33 2020 227880 Set read_only=0 on the new master. Enabling the VIP 192.168.2.189 on the new master: rac2 SIOCSIFADDR: No such device eth0:2: ERROR while getting interface flags: No such device SIOCSIFNETMASK: No such device arping: Device eth0 not available. Sat Mar 14 22:19:33 2020 - [info] ok. Sat Mar 14 22:19:33 2020 - [info] Sat Mar 14 22:19:33 2020 - [info] * Switching slaves in parallel.. Sat Mar 14 22:19:33 2020 - [info] Sat Mar 14 22:19:33 2020 - [info] -- Slave switch on host rac3(192.168.2.223:3306) started, pid: 12424 Sat Mar 14 22:19:33 2020 - [info] Sat Mar 14 22:19:34 2020 - [info] Log messages from rac3 ... Sat Mar 14 22:19:34 2020 - [info] Sat Mar 14 22:19:33 2020 - [info] Waiting to execute all relay logs on rac3(192.168.2.223:3306).. Sat Mar 14 22:19:33 2020 - [info] master_pos_wait(mysql-bin.000009:194) completed on rac3(192.168.2.223:3306). Executed 0 events. Sat Mar 14 22:19:33 2020 - [info] done. Sat Mar 14 22:19:33 2020 - [info] Resetting slave rac3(192.168.2.223:3306) and starting replication from the new master rac2(192.168.2.188:3306).. Sat Mar 14 22:19:33 2020 - [info] Executed CHANGE MASTER. Sat Mar 14 22:19:33 2020 - [info] Slave started. Sat Mar 14 22:19:34 2020 - [info] End of log messages from rac3 ... Sat Mar 14 22:19:34 2020 - [info] Sat Mar 14 22:19:34 2020 - [info] -- Slave switch on host rac3(192.168.2.223:3306) succeeded. Sat Mar 14 22:19:34 2020 - [info] Unlocking all tables on the orig master: Sat Mar 14 22:19:34 2020 - [info] Executing UNLOCK TABLES.. Sat Mar 14 22:19:34 2020 - [info] ok. Sat Mar 14 22:19:34 2020 - [info] Starting orig master as a new slave.. Sat Mar 14 22:19:34 2020 - [info] Resetting slave rac1(192.168.2.187:3306) and starting replication from the new master rac2(192.168.2.188:3306).. Sat Mar 14 22:19:34 2020 - [info] Executed CHANGE MASTER. Sat Mar 14 22:19:34 2020 - [info] Slave started. Sat Mar 14 22:19:34 2020 - [info] All new slave servers switched successfully. Sat Mar 14 22:19:34 2020 - [info] Sat Mar 14 22:19:34 2020 - [info] * Phase 5: New master cleanup phase.. Sat Mar 14 22:19:34 2020 - [info] Sat Mar 14 22:19:34 2020 - [info] rac2: Resetting slave info succeeded. Sat Mar 14 22:19:34 2020 - [info] Switching master to rac2(192.168.2.188:3306) completed successfully. 5.切换阶段 执行master_ip_online_change时当前master不可写新的主库设置只读旧的主库设置只读禁用原主库VIP 旧主库设全局锁获取新主库master信息新主库设置VIP 新主库取消只读异步从库重新同步至新主库原主库释放全局锁原主库同步至新主库 6.查看切换后状态 ---223 mysql> show slave status \G; *************************** 1. row *************************** Slave_IO_State: Waiting for master to send event Master_Host: 192.168.2.188 Master_User: repl Master_Port: 3306 Connect_Retry: 60 Master_Log_File: mysql-bin.000006 Read_Master_Log_Pos: 3938 Relay_Log_File: mysql-relay.000005 Relay_Log_Pos: 454 Relay_Master_Log_File: mysql-bin.000006 Slave_IO_Running: Yes Slave_SQL_Running: Yes ----187 mysql> show slave status \G; *************************** 1. row *************************** Slave_IO_State: Waiting for master to send event Master_Host: rac2 Master_User: repl Master_Port: 3306 Connect_Retry: 60 Master_Log_File: mysql-bin.000006 Read_Master_Log_Pos: 3938 Relay_Log_File: mysql-relay.000007 Relay_Log_Pos: 454 Relay_Master_Log_File: mysql-bin.000006 Slave_IO_Running: Yes Slave_SQL_Running: Yes Replicate_Do_DB: Replicate_Ignore_DB: ...... 7.数据测试 ---188： mysql> use jumptest mysql> insert into cjc01 values(3000); Query OK, 1 row affected (0.02 sec) mysql> select * from cjc01; +------+ | id | +------+ | 100 | | 3 | | 3000 | +------+ 3 rows in set (0.00 sec) ---187： mysql> select * from cjc01; +------+ | id | +------+ | 100 | | 3 | | 3000 | +------+ 3 rows in set (0.01 sec) ---223： mysql> select * from cjc01; +------+ | id | +------+ | 100 | | 3 | | 3000 | +------+ 3 rows in set (0.01 sec)
