12.2 Grid RUR 安装

数据库版本：12.2.0.1.0  RUR:p28251142_122010_Linux-x86-64.zip 12.2.0.1 Grid Infrastructure Release Update Revision (Revision)

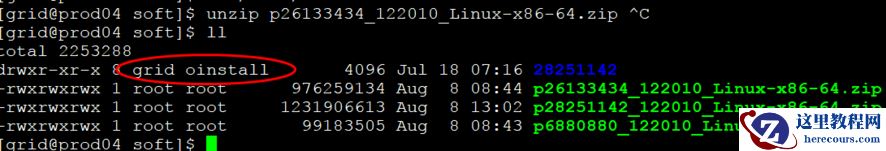

1,opatch 版本确定 #grid [grid@prod04 ~]$ /u01/app/grid_home/OPatch/opatch version OPatch Version: 12.2.0.1.14 #database [oracle@prod04 soft]$ /u01/app/oracle/product/12.2.0/dbhome_1/OPatch/opatch version OPatch Version: 12.2.0.1.14 2,grid 用户解压补丁 3，RUR 安装 [root@prod04 ~]# /u01/app/grid_home/OPatch/opatchauto apply /soft/28251142 -nonrolling  遇到报错，补丁安装 4，故障解决方法 $GRID_HOME/bin/clscfg -localpatch $GRID_HOME/crs/install/rootcrs.sh  -lock 手动启动has报错： [root@prod04 ~]# /u01/app/grid_home/bin/crsctl start crs CRS-6706: Oracle Clusterware Release patch level ('3106313030') does not match Software patch level ('0'). Oracle Clusterware cannot be started. CRS-4000: Command Start failed, or completed with errors 执行如下2条命令，集群软件正常启动： [root@prod04 ~]# /u01/app/grid_home/bin/clscfg -localpatch Creating OCR keys for user 'root', privgrp 'root'.. Operation successful. [root@prod04 ~]# /u01/app/grid_home/crs/install/rootcrs.sh -lock Using configuration parameter file: /u01/app/grid_home/crs/install/crsconfig_params The log of current session can be found at:   /u01/app/grid/crsdata/prod04/crsconfig/crslock_prod04_2018-08-09_01-47-23PM.log 2018/08/09 13:47:27 CLSRSC-329: Replacing Clusterware entries in file 'oracle-ohasd.service' [root@prod04 ~]# /u01/app/grid_home/bin/crsctl start crs CRS-4123: Oracle High Availability Services has been started. 5，数据库应用补丁 [oracle@prod04 ~]$ sqlplus / as sysdba SQL*Plus: Release 12.2.0.1.0 Production on Thu Aug 9 13:50:22 2018 Copyright (c) 1982, 2016, Oracle.  All rights reserved. Connected to an idle instance. SQL> startup ORACLE instance started. Total System Global Area 2466250752 bytes Fixed Size     8795760 bytes Variable Size   738199952 bytes Database Buffers 1711276032 bytes Redo Buffers     7979008 bytes Database mounted. Database opened. SQL> SQL> SQL> alter pluggable database all open; show pdbs; Pluggable database altered. SQL>      CON_ID CON_NAME   OPEN MODE  RESTRICTED ---------- ------------------------------ ---------- ---------- 2 PDB$SEED   READ ONLY  NO 3 PDB01   READ WRITE NO SQL> select patch_id,action,status,BUNDLE_SERIES from dba_registry_sqlpatch; no rows selected SQL> exit Disconnected from Oracle Database 12c Enterprise Edition Release 12.2.0.1.0 - 64bit Production [oracle@prod04 ~]$  [oracle@prod04 ~]$ cd /u01/app/oracle/product/12.2.0/dbhome_1/OPatch/ [oracle@prod04 OPatch]$  [oracle@prod04 OPatch]$ ./datapatch -verbose SQL Patching tool version 12.2.0.1.0 Production on Thu Aug  9 13:54:35 2018 Copyright (c) 2012, 2018, Oracle.  All rights reserved. Log file for this invocation: /u01/app/oracle/cfgtoollogs/sqlpatch/sqlpatch_38873_2018_08_09_13_54_35/sqlpatch_invocation.log Connecting to database...OK Note:  Datapatch will only apply or rollback SQL fixes for PDBs        that are in an open state, no patches will be applied to closed PDBs.        Please refer to Note: Datapatch: Database 12c Post Patch SQL Automation        (Doc ID 1585822.1) Bootstrapping registry and package to current versions...done Determining current state...done Current state of SQL patches: Bundle series 12.2.0.1.180717DBJAN2018RUR:   ID 180717 in the binary registry and not installed in any PDB Adding patches to installation queue and performing prereq checks... Installation queue:   For the following PDBs: CDB$ROOT PDB$SEED PDB01     Nothing to roll back     The following patches will be applied:       27872031 (DATABASE JAN 2018 RELEASE UPDATE REVISION 12.2.0.1.180717) Installing patches... Patch installation complete.  Total patches installed: 3 Validating logfiles... Patch 27872031 apply (pdb CDB$ROOT): SUCCESS   logfile: /u01/app/oracle/cfgtoollogs/sqlpatch/27872031/22311840/27872031_apply_CDB_CDBROOT_2018Aug09_13_55_39.log (no errors) Patch 27872031 apply (pdb PDB$SEED): SUCCESS   logfile: /u01/app/oracle/cfgtoollogs/sqlpatch/27872031/22311840/27872031_apply_CDB_PDBSEED_2018Aug09_13_58_16.log (no errors) Patch 27872031 apply (pdb PDB01): SUCCESS   logfile: /u01/app/oracle/cfgtoollogs/sqlpatch/27872031/22311840/27872031_apply_CDB_PDB01_2018Aug09_13_58_16.log (no errors) SQL Patching tool complete on Thu Aug  9 13:59:54 2018 select patch_id,action,status,BUNDLE_SERIES from dba_registry_sqlpatch; 6，补丁状态检测

Patch Numbers Getting Installed as Part of this Bundle Patch

^{Footnote 2}

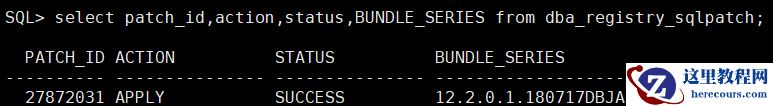

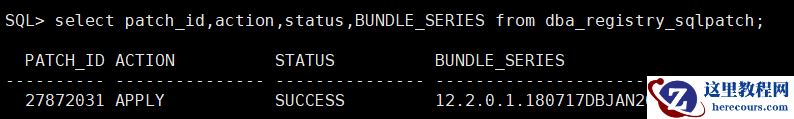

ACFS, DBWLM and TOMCAT subpatches are not applicable to the HP-UX Itanium and Linux on IBM System z platforms. [grid@prod04 ~]$ opatch lspatches 28222334;OCW JAN 2018 RELEASE UPDATE REVISION 12.2.0.1.0(ID:180620) (28222334) 27872031;Database Jan 2018 Release Update Revision : 12.2.0.1.180717 (27872031) 27144050;Tomcat Release Update 12.2.0.1.0(ID:171023.0830) (27144050) 27128906;ACFS Release Update : 12.2.0.1.0 (27128906) 26839277;DBWLM RELEASE UPDATE 12.2.0.1.0(ID:170913) (26839277) OPatch succeeded. [oracle@prod04 ~]$ /u01/app/oracle/product/12.2.0/dbhome_1/OPatch/opatch lspatches 28222334;OCW JAN 2018 RELEASE UPDATE REVISION 12.2.0.1.0(ID:180620) (28222334) 27872031;Database Jan 2018 Release Update Revision : 12.2.0.1.180717 (27872031) OPatch succeeded. select patch_id,action,status,BUNDLE_SERIES from dba_registry_sqlpatch; 附录： RUR按照日志： [root@prod04 ~]# /u01/app/grid_home/OPatch/opatchauto apply /soft/28251142 -nonrolling  OPatchauto session is initiated at Wed Aug  8 14:14:36 2018 System initialization log file is /u01/app/grid_home/cfgtoollogs/opatchautodb/systemconfig2018-08-08 Session log file is /u01/app/grid_home/cfgtoollogs/opatchauto/opatchauto2018-08-08_02-14-54PM.log The id for this session is 4VBV Executing OPatch prereq operations to verify patch applicability on home /u01/app/grid_home Executing OPatch prereq operations to verify patch applicability on home /u01/app/oracle/product/12. Patch applicability verified successfully on home /u01/app/oracle/product/12.2.0/dbhome_1 Patch applicability verified successfully on home /u01/app/grid_home Verifying SQL patch applicability on home /u01/app/oracle/product/12.2.0/dbhome_1 SQL patch applicability verified successfully on home /u01/app/oracle/product/12.2.0/dbhome_1 Preparing to bring down database service on home /u01/app/oracle/product/12.2.0/dbhome_1 Successfully prepared home /u01/app/oracle/product/12.2.0/dbhome_1 to bring down database service Bringing down database service on home /u01/app/oracle/product/12.2.0/dbhome_1 Following database(s) and/or service(s) are stopped and will be restarted later during the session:  Database service successfully brought down on home /u01/app/oracle/product/12.2.0/dbhome_1 Bringing down CRS service on home /u01/app/grid_home Prepatch operation log file location: /u01/app/grid/crsdata/prod04/crsconfig/crspatch_prod04_2018-08 CRS service brought down successfully on home /u01/app/grid_home Performing prepatch operation on home /u01/app/oracle/product/12.2.0/dbhome_1 Perpatch operation completed successfully on home /u01/app/oracle/product/12.2.0/dbhome_1 Start applying binary patch on home /u01/app/oracle/product/12.2.0/dbhome_1 Binary patch applied successfully on home /u01/app/oracle/product/12.2.0/dbhome_1 Performing postpatch operation on home /u01/app/oracle/product/12.2.0/dbhome_1 Postpatch operation completed successfully on home /u01/app/oracle/product/12.2.0/dbhome_1 Start applying binary patch on home /u01/app/grid_home Binary patch applied successfully on home /u01/app/grid_home Starting CRS service on home /u01/app/grid_home Postpatch operation log file location: /u01/app/grid/crsdata/prod04/crsconfig/crspatch_prod04_2018-0 Failed to start CRS service on home /u01/app/grid_home Execution of [GIStartupAction] patch action failed, check log for more details. Failures: Patch Target : prod04->/u01/app/grid_home Type[crs] Details: [ ---------------------------Patching Failed--------------------------------- Command execution failed during patching in home: /u01/app/grid_home, host: prod04. Command failed:  /u01/app/grid_home/perl/bin/perl -I/u01/app/grid_home/perl/lib -I/u01/app/grid_home /u01/app/grid_home/OPatch/auto/dbtmp/bootstrap_prod04/patchwork/crs/install/rootcrs.pl -postpatch - Command failure output:  Using configuration parameter file: /u01/app/grid_home/OPatch/auto/dbtmp/bootstrap_prod04/patchwork/ The log of current session can be found at:   /u01/app/grid/crsdata/prod04/crsconfig/crspatch_prod04_2018-08-08_02-26-32PM.log 2018/08/08 14:26:45 CLSRSC-4015: Performing install or upgrade action for Oracle Trace File Analyzer 2018/08/08 14:27:37 CLSRSC-4003: Successfully patched Oracle Trace File Analyzer (TFA) Collector. 2018/08/08 14:27:42 CLSRSC-329: Replacing Clusterware entries in file 'oracle-ohasd.service' 2018/08/08 14:27:58 CLSRSC-180: An error occurred while executing the command '/u01/app/grid_home/bi After fixing the cause of failure Run opatchauto resume ] OPATCHAUTO-68061: The orchestration engine failed. OPATCHAUTO-68061: The orchestration engine failed with return code 1 OPATCHAUTO-68061: Check the log for more details. OPatchAuto failed. OPatchauto session completed at Wed Aug  8 14:28:00 2018 Time taken to complete the session 13 minutes, 25 seconds  opatchauto failed with error code 42
