Oracle 12c 创建与删除CDB、PDBs

来源：这里教程网时间：2026-03-03 13:14:17 作者：

一、计划多租户环境

准备足够的内存，磁盘空间；需要考虑的问题包括如下 16 个方面：

1. PDB 数量 (max 253) 与空间计划

2. 后台进程数量（ processes 参数）： PDB+CDB 用户

3. DB_NAME ， global db name

4. Spfile 为 CDB 和 PDB 共用， pdb 可单独设置参数，操作 spfile 必须在 root

5. 字符集为 CDB 和 PDB 共用，推荐 al32utf8/al16utf16( 国家字符集 )

6. 时区可以 CDB 和 PDB 统一，也可以 PDB 单独设置

7. Db_block_size 为 CDB 内统一且不能修改

8. Online redo log 的 block size ， redo log 和 control file 都是实例级共用

9. 设计合适的 sysaux ，分别计划 CDB 和 PDB 的

10. 默认表空间，可分别计划 CDB 和 PDB 默认表空间，共享临时表空间

11. 默认临时表空间，可为分别计划 CDB 和 PDB

12. Undo 表空间，每个实例只有一个 active undo 表空间

13. 规划 Service

14. 熟悉 CDB 和 PDB 的启动与关闭

15. 是否使用 RAC 环境

16. 不支持的特征需要计划避开

二、创建与删除CDB&PDB

1. 创建 CDB

DBCA （推荐）、 create database CREATE DATABASE 必须包含 ENABLE PLUGGABLE DATABASE 从句，数据库创建时会默认创建 root 和 seed ；数据文件的位置和名字： 1. The SEED FILE_NAME_CONVERT clause 2. Oracle Managed Files 3. The PDB_FILE_NAME_CONVERT initialization parameter 创建 CDB CREATE DATABASE cdb_name DATAFILE '/u01/app/oracle/oradata/newcdb/system01.dbf' SIZE 325M REUSE SYSAUX DATAFILE '/u01/app/oracle/oradata/newcdb/sysaux01.dbf' SIZE 325M REUSE SEED #seed container's tbs SYSTEM DATAFILES SIZE 125M AUTOEXTEND ON NEXT 10M MAXSIZE UNLIMITED SYSAUX DATAFILES SIZE 100M

Example 1: Creating a CDB Without Using Oracle Managed Files CREATE DATABASE newcdb USER SYS IDENTIFIED BY sys_password USER SYSTEM IDENTIFIED BY system_password LOGFILE GROUP 1 ('/u01/logs/my/redo01a.log','/u02/logs/my/redo01b.log') SIZE 100M BLOCKSIZE 512, GROUP 2 ('/u01/logs/my/redo02a.log','/u02/logs/my/redo02b.log') SIZE 100M BLOCKSIZE 512, GROUP 3 ('/u01/logs/my/redo03a.log','/u02/logs/my/redo03b.log') SIZE 100M BLOCKSIZE 512 MAXLOGHISTORY 1 MAXLOGFILES 16 MAXLOGMEMBERS 3 MAXDATAFILES 1024 CHARACTER SET AL32UTF8 NATIONAL CHARACTER SET AL16UTF16 EXTENT MANAGEMENT LOCAL DATAFILE '/u01/app/oracle/oradata/newcdb/system01.dbf' SIZE 700M REUSE AUTOEXTEND ON NEXT 10240K MAXSIZE UNLIMITED SYSAUX DATAFILE '/u01/app/oracle/oradata/newcdb/sysaux01.dbf' SIZE 550M REUSE AUTOEXTEND ON NEXT 10240K MAXSIZE UNLIMITED DEFAULT TABLESPACE deftbs DATAFILE '/u01/app/oracle/oradata/newcdb/deftbs01.dbf' SIZE 500M REUSE AUTOEXTEND ON MAXSIZE UNLIMITED DEFAULT TEMPORARY TABLESPACE tempts1 TEMPFILE '/u01/app/oracle/oradata/newcdb/temp01.dbf' SIZE 20M REUSE AUTOEXTEND ON NEXT 640K MAXSIZE UNLIMITED UNDO TABLESPACE undotbs1 DATAFILE '/u01/app/oracle/oradata/newcdb/undotbs01.dbf' SIZE 200M REUSE AUTOEXTEND ON NEXT 5120K MAXSIZE UNLIMITED ENABLE PLUGGABLE DATABASE SEED FILE_NAME_CONVERT = ('/u01/app/oracle/oradata/newcdb/', '/u01/app/oracle/oradata/pdbseed/') SYSTEM DATAFILES SIZE 125M AUTOEXTEND ON NEXT 10M MAXSIZE UNLIMITED SYSAUX DATAFILES SIZE 100M USER_DATA TABLESPACE usertbs DATAFILE '/u01/app/oracle/oradata/pdbseed/usertbs01.dbf'

SIZE 200M REUSE AUTOEXTEND ON MAXSIZE UNLIMITED;

Example 2: Creating a CDB Using Oracle Managed Files parameter file: DB_CREATE_FILE_DEST ='/u01/app/oracle/oradata' This example sets the parameter Oracle ASM storage: DB_CREATE_FILE_DEST = +data CREATE DATABASE newcdb USER SYS IDENTIFIED BY sys_password USER SYSTEM IDENTIFIED BY system_password EXTENT MANAGEMENT LOCAL DEFAULT TABLESPACE users DEFAULT TEMPORARY TABLESPACE temp UNDO TABLESPACE undotbs1 ENABLE PLUGGABLE DATABASE SEED SYSTEM DATAFILES SIZE 125M AUTOEXTEND ON NEXT 10M MAXSIZE UNLIMITED SYSAUX DATAFILES SIZE 100M; 执行 catcdb.sql ，安装 CDB 组件

@?/rdbms/admin/catcdb.sql

SYSDBA 执行如下脚本： @?/rdbms/admin/catalog.sql @?/rdbms/admin/catproc.sql @?/rdbms/admin/utlrp.sql SYSTEM 用户执行： @?/sqlplus/admin/pupbld.sql

2. 配置 EM express

SYSDBA 权限执行： exec DBMS_XDB_CONFIG.SETHTTPPORT( http_port_number ); exec DBMS_XDB_CONFIG.SETHTTPSPORT( https_port_number ); 每个 container 必须使用一个唯一的端口，访问方法： http:// database_hostname : http_port_number /em/ https:// database_hostname : https_port_number /em/

3. 创建 PDB

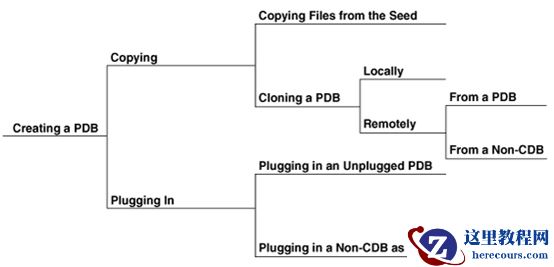

Figure 38-1 Options for Creating a PDB

Technique	Description
Create a PDB by using the seed	Create a PDB in a CDB using the files of the seed. This technique copies the files associated with the seed to a new location and associates the copied files with the new PDB.
Create a PDB by cloning an existing PDB or non-CDB	Create a PDB by cloning a source PDB or non-CDB and plugging the clone into the CDB. A source can be a PDB in the local CDB, a PDB in a remote CDB, or a non-CDB. This technique copies the files associated with the source to a new location and associates the copied files with the new PDB.
Create a PDB by plugging an unplugged PDB into a CDB	Create a PDB by using the XML metadata file that describes the PDB and the files associated with the PDB to plug it into the CDB.
Create a PDB by using a non-CDB	Create a PDB by moving a non-CDB into a PDB. You can use the DBMS_PDB package to create an unplugged PDB from an Oracle Database 12 c non-CDB. You can then plug the unplugged PDB into the CDB.

1) CREATE PLUGGABLE DATABASE 语句

a. 存储限制

STORAGE (MAXSIZE 2G)

STORAGE (MAXSIZE UNLIMITED)

b. PDB 文件位置


FILE_NAME_CONVERT


DB_CREATE_FILE_DEST


PDB_FILE_NAME_CONVERT


PATH_PREFIX #pdb


文件位置限制


SOURCE_FILE_NAME_CONVERT

、


SOURCE_FILE_DIRECTORY #


插拔

pdb

的

c. 其他

SERVICE_NAME_CONVERT # 重命名服务名


TEMPFILE REUSE #


临时文件重用

USER_TABLESPACES #move non-cdb to pdb 时指定 TBS,ALL /ALL EXCEPT /NONE/list('tbs1','tbs4','tbs5')

LOGGING/


NOLOGGING #

表空间日志记录

STANDBYS=ALL/NONE #standby CDB

NO DATA # 克隆 pdb 时，指定不克隆数据

2) 创建 PDB 前的准备

在创建 PDB 之前，必须满足先决条件。确保在创建 PDB 之前满足以下先决条件 : •CDB 必须存在。参见创建和配置 CDB 。 •CDB 必须处于读 / 写模式。 • 当前用户必须是 root 容器的 Common User 。 • 当前用户必须具有 CREATE PLUGGABLE DATABASE 系统权限。 • 您必须为每个 PDB 确定唯一的 PDB 名称。每个 PDB 名称在单个 CDB 中必须是惟一的，并且每个 PDB 名称在其实例通过特定侦听器到达的所有 CDBs 的范围内必须是惟一的。

3) 用 seed 创建 PDB

在使用 SNAPSHOT COPY 子句时，源 PDB 的所有数据文件必须存储在相同的存储类型中。

当使用 SNAPSHOT COPY 子句创建源 PDB 的克隆且 CLONEDB 初始化参数设置为 FALSE 时，源 PDB 文件的底层文件系统必须支持存储快照。这些文件系统包括 Oracle 自动存储管理集群文件系统 (Oracle ACFS) 和直接 NFS 客户端存储。

当你使用 SNAPSHOT COPY 来创建一个克隆， CLONEDB 初始化参数设置为 TRUE ，底层文件系统源码 PDB 文件可以是任何的本地文件系统、网络文件系统 (NFS) ，或集群文件系统，直接启用 NFS 。但是，只要存在克隆，源 PDB 必须保持开放只读模式。

Example 38-18 Creating a PDB Using No Clauses CREATE PLUGGABLE DATABASE salespdb ADMIN USER salesadm IDENTIFIED BY password;

Example 38-19 Creating a PDB and Granting Predefined Oracle Roles to the PDB Administrator CREATE PLUGGABLE DATABASE salespdb ADMIN USER salesadm IDENTIFIED BY password ROLES=(DBA);

Example 38-20 Creating a PDB Using the STORAGE, DEFAULT TABLESPACE, PATH_PREFIX, and FILE_NAME_CONVERT Clauses CREATE PLUGGABLE DATABASE salespdb ADMIN USER salesadm IDENTIFIED BY password STORAGE (MAXSIZE 2G) DEFAULT TABLESPACE sales DATAFILE '/disk1/oracle/dbs/salespdb/sales01.dbf' SIZE 250M AUTOEXTEND ON PATH_PREFIX = '/disk1/oracle/dbs/salespdb/' FILE_NAME_CONVERT = ('/disk1/oracle/dbs/pdbseed/', '/disk1/oracle/dbs/salespdb/');

4) 克隆 PDB 或者 non-CBD 创建 PDB

A. 克隆 Local PDB Example 38-21 Cloning a Local PDB Using No Clauses CREATE PLUGGABLE DATABASE pdb2 FROM pdb1; Example 38-22 Cloning a Local PDB With the PATH_PREFIX, FILE_NAME_CONVERT, and SERVICE_NAME_CONVERT Clauses CREATE PLUGGABLE DATABASE pdb2 FROM pdb1 PATH_PREFIX = '/disk2/oracle/pdb2' FILE_NAME_CONVERT = ('/disk1/oracle/pdb1/', '/disk2/oracle/pdb2/') SERVICE_NAME_CONVERT = ('salesrep','salesperson','orders','orderentry') NOLOGGING; Example 38-23 Cloning a Local PDB Using the FILE_NAME_CONVERT, STORAGE, and SERVICE_NAME_CONVERT Clauses CREATE PLUGGABLE DATABASE pdb2 FROM pdb1 FILE_NAME_CONVERT = ('/disk1/oracle/pdb1/', '/disk2/oracle/pdb2/') STORAGE (MAXSIZE 2G) SERVICE_NAME_CONVERT = ('salesrep','salesperson','orders','orderentry'); Example 38-24 Cloning a Local PDB Without Cloning Its Data ALTER PLUGGABLE DATABASE pdb1 OPEN READ ONLY; CREATE PLUGGABLE DATABASE pdb2 FROM pdb1 NO DATA; ALTER PLUGGABLE DATABASE pdb2 OPEN;

B. 克隆远程 PDB 或者 non-CDB

Example 38-25 Creating a PDB by Cloning a Remote PDB Using No Clauses

CREATE PLUGGABLE DATABASE pdb2 FROM pdb1@pdb1_link;

Example 38-26 Creating a PDB by Cloning a Remote Non-CDB

CREATE PLUGGABLE DATABASE pdb2 FROM mydb@mydb_link;

@$ORACLE_HOME/rdbms/admin/noncdb_to_pdb.sql

5) 插入 PDB 的方法创建 PDB

BEGIN DBMS_PDB.DESCRIBE( pdb_descr_file => '/disk1/oracle/salespdb.xml', pdb_name => 'SALESPDB'); END; / SET SERVEROUTPUT ON DECLARE compatible CONSTANT VARCHAR2(3) := CASE DBMS_PDB.CHECK_PLUG_COMPATIBILITY( pdb_descr_file => '/disk1/usr/salespdb.xml', pdb_name => 'SALESPDB') WHEN TRUE THEN 'YES' ELSE 'NO' END; BEGIN DBMS_OUTPUT.PUT_LINE(compatible); END; /

Example 38-27 Plugging In an Unplugged PDB Using the NOCOPY Clause CREATE PLUGGABLE DATABASE salespdb USING '/disk1/usr/salespdb.xml' NOCOPY TEMPFILE REUSE;

Example 38-28 Plugging In an Unplugged PDB Using the AS CLONE and NOCOPY Clauses CREATE PLUGGABLE DATABASE salespdb AS CLONE USING '/disk1/usr/salespdb.xml' NOCOPY TEMPFILE REUSE;

Example 38-29 Plugging In an Unplugged PDB Using the SOURCE_FILE_NAME_CONVERT, NOCOPY, and STORAGE Clauses CREATE PLUGGABLE DATABASE salespdb USING '/disk1/usr/salespdb.xml' SOURCE_FILE_NAME_CONVERT = ('/disk1/oracle/sales/', '/disk2/oracle/sales/') NOCOPY STORAGE (MAXSIZE 2G) TEMPFILE REUSE;

Example 38-30 Plugging In an Unplugged PDB With the COPY, PATH_PREFIX, and FILE_NAME_CONVERT Clauses CREATE PLUGGABLE DATABASE salespdb USING '/disk1/usr/salespdb.xml' COPY PATH_PREFIX = '/disk2/oracle/sales/' FILE_NAME_CONVERT = ('/disk1/oracle/sales/', '/disk2/oracle/sales/');

Example 38-31 Plugging In an Unplugged PDB Using the SOURCE_FILE_NAME_CONVERT, MOVE, FILE_NAME_CONVERT, and STORAGE Clauses CREATE PLUGGABLE DATABASE salespdb USING '/disk1/usr/salespdb.xml' SOURCE_FILE_NAME_CONVERT = ('/disk1/oracle/sales/', '/disk2/oracle/sales/') MOVE FILE_NAME_CONVERT = ('/disk2/oracle/sales/', '/disk3/oracle/sales/') STORAGE (MAXSIZE 2G);

Example 38-32 Plugging In an Unplugged PDB Using the SOURCE_FILE_DIRECTORY, MOVE, FILE_NAME_CONVERT, and STORAGE Clauses CREATE PLUGGABLE DATABASE salespdb USING '/disk1/usr/salespdb.xml' SOURCE_FILE_DIRECTORY = '/disk2/oracle/sales/' MOVE FILE_NAME_CONVERT = ('/disk2/oracle/sales/', '/disk3/oracle/sales/') STORAGE (MAXSIZE 2G);

6) 用 Non-CDB 创建 PDB

BEGIN DBMS_PDB.DESCRIBE( pdb_descr_file => '/disk1/oracle/ncdb.xml'); END; / SET SERVEROUTPUT ON DECLARE compatible CONSTANT VARCHAR2(3) := CASE DBMS_PDB.CHECK_PLUG_COMPATIBILITY( pdb_descr_file => '/disk1/oracle/ncdb.xml', pdb_name => 'NCDB') WHEN TRUE THEN 'YES' ELSE 'NO' END; BEGIN DBMS_OUTPUT.PUT_LINE(compatible); END; / CREATE PLUGGABLE DATABASE ncdb USING '/disk1/oracle/ncdb.xml' COPY FILE_NAME_CONVERT = ('/disk1/oracle/dbs/', '/disk2/oracle/ncdb/') USER_TABLESPACES=('tbs3'); @$ORACLE_HOME/rdbms/admin/noncdb_to_pdb.sql

4. Unplugging PDB

Example 38-33 Unplugging PDB salespdb ALTER PLUGGABLE DATABASE salespdb UNPLUG INTO '/oracle/data/salespdb.xml';

5. 删除 PDB

删除 PDB 时，将修改 CDB 的控制文件，以消除对删除的 PDB 的所有引用。与 PDB 关联的归档重做日志文件和备份不会被删除，但是您可以使用 Oracle Recovery Manager (RMAN) 删除它们。

Example 38-34 Dropping PDB salespdb While Keeping Its Data Files DROP PLUGGABLE DATABASE salespdb KEEP DATAFILES;

Example 38-35 Dropping PDB salespdb and Its Data Files DROP PLUGGABLE DATABASE salespdb INCLUDING DATAFILES; 【参考】 https://docs.oracle.com/database/121/ADMIN/cdb_create.htm#ADMIN13514 https://docs.oracle.com/database/121/ADMIN/cdb_plug.htm#ADMIN13549
