1、什么是SPA(SQL Performance Analyzer)？
SPA(
SQL Performance Analyzer)
是Oracle的SQL性能优化分析器。Oracle Database 11g 引入了 SQL 性能分析器；使用该工具可以准确地评估数据库变更对 SQL 语句的影响。SQL 性能分析器可帮助预测潜在的更改对 SQL 的性能影响。这种功能可向 DBA 提供有关 SQL 语句性能的详细信息，例如，执行前后的统计信息，提高或降低性能的语句。
SPA其实也是Oracle Real Application Testing的一个组件，另外一个组件Database Replay。SPA的原理是通过变更前对收集的STS进行执行，获取基线数据，变更后再次进行执行，然后进行对比，从多个维度比如CPU时间，I/O，buffer get等生成详细的变更对比报告。典型用法是捕捉STS，然后通过SPA生成对比报告，然后对变更后衰减的SQL调用STA进行优化。
2、SPA作用
SQL 性能分析器可用于预测和防止会影响 SQL 执行计划结构的任何数据库环境更改所带来的潜在性能问题。这些更改可以包括（但不限于）以下任何一种更改：
1）数据库升级
2）实施优化建议
3）更改方案
4）收集统计信息
5）更改数据库参数
6）更改操作系统和硬件
3、SPA测试流程
为了尽可能的减小对正式生产库的性能影响，SPA测试可以从AWR资料库中的SQL数据转化而来的SQL Tuning Set进行整体的SQL性能测试。
本次测试主要分为以下几个步骤：
在源端：
1.环境准备：创建SPA测试专用用户
2.采集数据：
a)在生产库转化AWR中SQL为SQL Tuning Set
b)在生产库从现有SQL Tuning Set提取SQL
3.导出数据：打包(pack)转化后的SQL Tuning Set，并导出传输到测试服务器
在目标库端：
1.环境准备：创建SPA测试专用用户
2.测试准备：导入SQL Tuning Set表，并解包(unpack)，创建SPA分析任务
3.前期性能：从SQL Tuning Set中转化得出11g的性能Trail
4.后期性能：在19c测试数据库中执行SQL Tuning Set中SQL，生成19c性能Trail
5.对比分析：执行对比分析任务，分别按执行时间，CPU时间和逻辑读三个维度进行

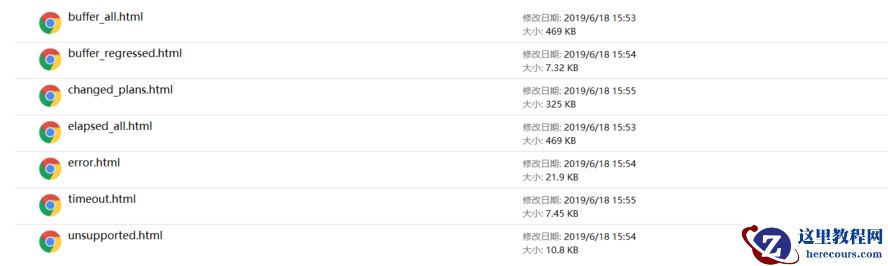

6.汇总报告：取出对比报告，对每个维度分别取出All，Unsupport，Error 3类报告
总结报告：分析汇总报告，优化其中的性能下降SQL，编写SPA测试报告
4、SPA实操
4.1、初始化数据库（源端和目标端数据库）
在进行SPA操作前，需要为数据库进行检测，目标端的数据库的表空间的大小和名字需要和源端的表空间的大小和名字一致（除去系统表空间） a、检测源端数据库的表空间
SQL> select tablespace_name,bytes/1024/1024m from dba_data_files; TABLESPACE_NAME M ------------------------------ ---------- SYSTEM 700 SYSAUX 600 UNDOTBS1 200 USERS 5 TEST 100
b、查看目标端表空间
SQL> select tablespace_name,bytes/1024/1024m from dba_data_files; TABLESPACE_NAME M ------------------------------ ---------- SYSTEM 900 SYSAUX 600 USERS 5 UNDOTBS1 55
通过对表空间的检测可以看到，目标端没有test表空间，需要在目标端创建一个名为TEST，大小为100 MB的表空间
c、目标端进行表空间创建
查看表空间的位置 SQL> col file_name for a80 SQL> select file_name,tablespace_name from dba_data_files; FILE_NAME TABLESPACE_NAME -------------------------------------------------------------------------------- ------------------------------ C:\ORACLE\APP\LI\ORADATA\HAPPY\LUFFY\DATAFILE\O1_MF_SYSTEM_GJ3K66GF_.DBF SYSTEM C:\ORACLE\APP\LI\ORADATA\HAPPY\LUFFY\DATAFILE\O1_MF_SYSAUX_GJ3K79OK_.DBF SYSAUX C:\ORACLE\APP\LI\ORADATA\HAPPY\LUFFY\DATAFILE\O1_MF_USERS_GJ3K7T1V_.DBF USERS C:\ORACLE\APP\LI\ORADATA\HAPPY\LUFFY\DATAFILE\O1_MF_UNDOTBS1_GJ3K7RWQ_.DBF UNDOTBS1 创建表空间 SQL> create tablespace test datafile 'C:\ORACLE\APP\LI\ORADATA\HAPPY\LUFFY\DATAFILE\TEST.DBF' size 100m; 表空间已创建。 SQL> select file_name,tablespace_name from dba_data_files; FILE_NAME TABLESPACE_NAME -------------------------------------------------------------------------------- ------------------------------ C:\ORACLE\APP\LI\ORADATA\HAPPY\LUFFY\DATAFILE\O1_MF_SYSTEM_GJ3K66GF_.DBF SYSTEM C:\ORACLE\APP\LI\ORADATA\HAPPY\LUFFY\DATAFILE\O1_MF_SYSAUX_GJ3K79OK_.DBF SYSAUX C:\ORACLE\APP\LI\ORADATA\HAPPY\LUFFY\DATAFILE\TEST.DBF TEST C:\ORACLE\APP\LI\ORADATA\HAPPY\LUFFY\DATAFILE\O1_MF_USERS_GJ3K7T1V_.DBF USERS C:\ORACLE\APP\LI\ORADATA\HAPPY\LUFFY\DATAFILE\O1_MF_UNDOTBS1_GJ3K7RWQ_.DBF UNDOTBS1
4.2、导入导出数据
把源端的tns拷贝到目标端（测试不需要，如果是生产库则需要进行tns的拷贝）
同时需要注意DB link a、源端导出数据
查看directory SQL> col DIRECTORY_PATH for a80 SQL> select * from dba_directories; OWNER DIRECTORY_NAME DIRECTORY_PATH ------------------------------ ------------------------------ -------------------------------------------------------------------------------- SYS ORACLE_OCM_CONFIG_DIR /oracle/app/oracle/product/11.2.0/dbhome_1/ccr/hosts/source/state SYS DATA_PUMP_DIR /oracle/app/oracle/admin/source/dpdump/ SYS ORACLE_OCM_CONFIG_DIR2 /oracle/app/oracle/product/11.2.0/dbhome_1/ccr/state 创建directory SQL> create directory dump_dir as '/oracle/app/dump'; Directory created. SQL> select * from dba_directories; OWNER DIRECTORY_NAME DIRECTORY_PATH ------------------------------ ------------------------------ -------------------------------------------------------------------------------- SYS DUMP_DIR /oracle/app/dump SYS ORACLE_OCM_CONFIG_DIR /oracle/app/oracle/product/11.2.0/dbhome_1/ccr/hosts/source/state SYS DATA_PUMP_DIR /oracle/app/oracle/admin/source/dpdump/ SYS ORACLE_OCM_CONFIG_DIR2 /oracle/app/oracle/product/11.2.0/dbhome_1/ccr/state
源端导出数据
[oracle@source dump]$ cat /oracle/app/dump/full.sh PATH=$PATH:$HOME/bin NLS_LANG=AMERICAN_AMERICA.ZHS16GBK; export NLS_LANG export PATHORACLE_SID=source; export ORACLE_SID ORACLE_BASE=/oracle/app/oracle; export ORACLE_BASE ORACLE_HOME=$ORACLE_BASE/product/11.2.0/dbhome_1; export ORACLE_HOME PATH=/usr/sbin:$PATH; export PATH PATH=$ORACLE_HOME/bin:$PATH; export PATH LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib; export LD_LIBRARY_PATH CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib; export CLASSPATH export LANG=C export 022 /oracle/app/oracle/product/11.2.0/dbhome_1/bin/expdp system/oracle DIRECTORY=dump_dir parallel=1 dumpfile=source_full_` date +%y%m%d`_%U.dmp logfile=source_full_` date +%y%m%d`.log compression=all cluster=N full=y
目标端导入数据
C:\Users\li>impdp ' / as sysdba' directory=dump parallel=1 dumpfile=source_full_190617_01.dmp logfile=impdp.source.full.log cluster=no full=y
Import: Release 19.0.0.0.0 - Production on 星期二 6月 18 14:40:49 2019
Version 19.3.0.0.0
Copyright (c) 1982, 2019, Oracle and/or its affiliates. All rights reserved.
口令:oracle
;;;
Import: Release 19.0.0.0.0 - Production on 星期二 6月 18 14:40:49 2019
Version 19.3.0.0.0
Copyright (c) 1982, 2019, Oracle and/or its affiliates. All rights reserved.
;;;
连接到: Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
已成功加载/卸载了主表 "SYS"."SYS_IMPORT_FULL_01"
启动 "SYS"."SYS_IMPORT_FULL_01": "/******** AS SYSDBA" directory=dump parallel=1 dumpfile=source_full_190617_01.dmp logfile=impdp.source.full.log cluster=no full=y
处理对象类型 DATABASE_EXPORT/TABLESPACE
导入报错内容
（1）表空间、角色、用户、序列等已存在，忽略
ORA-31684: 对象类型 TABLESPACE:"UNDOTBS1" 已存在
ORA-31684: 对象类型 TABLESPACE:"TEMP" 已存在
ORA-31684: 对象类型 TABLESPACE:"USERS" 已存在
ORA-31684: 对象类型 TABLESPACE:"TEST" 已存在
ORA-31685: 由于权限不足, 对象类型 USER:"SYS" 失败。失败的 sql 为:
ALTER USER "SYS" IDENTIFIED BY VALUES 'S:6BF11CCC7A4D3D308B5CF151AE6BE8E8981F1612723B5B95DDDD17182B38;8A8F025737A9097A' TEMPORARY TABLESPACE "TEMP"
ORA-31684: 对象类型 USER:"OUTLN" 已存在
ORA-31684: 对象类型 USER:"ORACLE" 已存在
ORA-31684: 对象类型 ROLE:"SELECT_CATALOG_ROLE" 已存在
ORA-31684: 对象类型 ROLE:"EXECUTE_CATALOG_ROLE" 已存在
ORA-31684: 对象类型 ROLE:"DBFS_ROLE" 已存在
ORA-31684: 对象类型 ROLE:"AQ_ADMINISTRATOR_ROLE" 已存在
ORA-31684: 对象类型 ROLE:"AQ_USER_ROLE" 已存在
ORA-31684: 对象类型 ROLE:"ADM_PARALLEL_EXECUTE_TASK" 已存在
ORA-31684: 对象类型 ROLE:"GATHER_SYSTEM_STATISTICS" 已存在
ORA-31684: 对象类型 ROLE:"RECOVERY_CATALOG_OWNER" 已存在
ORA-31684: 对象类型 ROLE:"SCHEDULER_ADMIN" 已存在
ORA-31684: 对象类型 ROLE:"HS_ADMIN_SELECT_ROLE" 已存在
ORA-31684: 对象类型 ROLE:"HS_ADMIN_EXECUTE_ROLE" 已存在
ORA-31684: 对象类型 ROLE:"HS_ADMIN_ROLE" 已存在
ORA-31684: 对象类型 ROLE:"GLOBAL_AQ_USER_ROLE" 已存在
ORA-31684: 对象类型 ROLE:"OEM_ADVISOR" 已存在
ORA-31684: 对象类型 ROLE:"OEM_MONITOR" 已存在
ORA-31684: 对象类型 ROLE:"WM_ADMIN_ROLE" 已存在
ORA-31684: 对象类型 DIRECTORY:"DATA_PUMP_DIR" 已存在
ORA-31684: 对象类型 CONTEXT:"GLOBAL_AQCLNTDB_CTX" 已存在
ORA-31684: 对象类型 CONTEXT:"DBFS_CONTEXT" 已存在
ORA-31684: 对象类型 CONTEXT:"REGISTRY$CTX" 已存在
ORA-31684: 对象类型 CONTEXT:"LT_CTX" 已存在
ORA-39083: 对象类型 PROCACT_SYSTEM 创建失败, 出现错误:
ORA-20000: Incompatible version of Workspace Manager Installed
失败的 sql 为:
BEGIN
declare ver varchar2(100) ; cnt integer ; dummy integer; vdummy varchar2(30) ; compile_exception EXCEPTION; PRAGMA EXCEPTION_INIT(compile_exception, -06550); invalid_table EXCEPTION; PRAGMA EXCEPTION_INIT(invalid_table, -00942); procedure createErrorProc is begin execute immediate 'create or replace function system.wm$_check_install return boolean is begin return true ; end;' ; end ; begin select status into vdummy from dba_registry where comp_id = 'OWM' ; if (vdummy not in ('VALID', 'UPGRADED', 'LOADED')) then raise compile_exception ; end if ; select 1 into dummy from dual where exists (select 1 from all_users where username = 'WMSYS') ; execute immediate 'create or replace function wmsys.wm$_old_version return varchar2 is begin return ''11.2.0.4.0'' ; end;' ; select count(*) into cnt from dba_procedures where object_name='LT_EXPORT_PKG' and procedure_name='IMPORTEXPORTSUPPORT'; if (cnt=0) then raise_application_error(-20000, 'Incompatible version of Workspace Manager Installed'); end if ; execute immediate 'select value from wmsys.wm$env_vars where name=''OWM_VERSION''' into ver ; if (0>0 and ver != '11.2.0.4.0') then raise_application_error(-20000, 'Unable to import due to one or more versioned tables not having a ''VERSIONED'' status'); end if ; execute immediate 'declare cnt integer ; begin select count(*) into cnt from (select workspace from wmsys.wm$version_hierarchy_table where version!=0 union all select table_name from wmsys.wm$versioned_tables) ; if (cnt>0)
ORA-39083: 对象类型 PROCACT_SYSTEM 创建失败, 出现错误:
ORA-20000: Incompatible version of Workspace Manager Installed
失败的 sql 为:
BEGIN
declare ver varchar2(100) ; cnt integer ; dummy integer; vdummy varchar2(30) ; compile_exception EXCEPTION; PRAGMA EXCEPTION_INIT(compile_exception, -06550); invalid_table EXCEPTION; PRAGMA EXCEPTION_INIT(invalid_table, -00942); procedure createErrorProc is begin execute immediate 'create or replace function system.wm$_check_install return boolean is begin return true ; end;' ; end ; begin select status into vdummy from dba_registry where comp_id = 'OWM' ; if (vdummy not in ('VALID', 'UPGRADED', 'LOADED')) then raise compile_exception ; end if ; select 1 into dummy from dual where exists (select 1 from all_users where username = 'WMSYS') ; execute immediate 'create or replace function wmsys.wm$_old_version return varchar2 is begin return ''11.2.0.4.0'' ; end;' ; select count(*) into cnt from dba_procedures where object_name='LT_EXPORT_PKG' and procedure_name='IMPORTEXPORTSUPPORT'; if (cnt=0) then raise_application_error(-20000, 'Incompatible version of Workspace Manager Installed'); end if ; execute immediate 'select value from wmsys.wm$env_vars where name=''OWM_VERSION''' into ver ; if (0>0 and ver != '11.2.0.4.0') then raise_application_error(-20000, 'Unable to import due to one or more versioned tables not having a ''VERSIONED'' status'); end if ; execute immediate 'declare cnt integer ; begin select count(*) into cnt from (select workspace from wmsys.wm$version_hierarchy_table where version!=0 union all select table_name from wmsys.wm$versioned_tables) ; if (cnt>0)
ORA-39126: 在 KUPW$WORKER.SEND_TRACE_MSG [KUPW: ORA-39083: 对象类型 PROCACT_SYSTEM 创建失败, 出现错误:
ORA-20000: Incompatible version of Workspace Manager Installed
失败的 sql 为:
BEGIN
declare ver varchar2(100) ; cnt integer ; dummy integer; vdummy varchar2(30) ; compile_exception EXCEPTION; PRAGMA EXCEPTION_INIT(compile_exception, -06550); invalid_table EXCEPTION; PRAGMA EXCEPTION_INIT(invalid_table, -00942); procedure createErrorProc is begin execute immediate 'create or replace function system.wm$_check_install return boolean is begin return true ; end;' ; end ; begin select status into vdummy from dba_registry where comp_id = 'OWM' ; if (vdummy not in ('VALID', 'UPGRADED', 'LOADED')) then raise compile_exception ; end if ; select 1 into dummy from dual where exists (select 1 from all_users where username = 'WMSYS') ; execute immediate 'create or replace function wmsys.wm$_old_version return varchar2 is begin return ''11.2.0.4.0'' ; end;' ; select count(*) into cnt from dba_procedures where object_name='LT_EXPORT_PKG' and procedure_name='IMPORTEXPORTSUPPORT'; if (cnt=0) then raise_application_error(-20000, 'Incompatible version of Workspace Manager Installed'); end if ; execute immediate 'select value from wmsys.wm$env_vars where name=''OWM_VERSION''' into ver ; if (0>0 and ver != '11.2.0.4.0') then raise_application_error(-20000, 'Unable to import due to one or more versioned tables not having a ''VERSIONED'' status'); end if ; execute immediate 'declare cnt integer ; begin select count(*) into cnt from (select workspace from wmsys.wm$version_hierarchy_table where version!=0 union all select table_name from wmsys.wm$versioned_tables) ; if (cnt>0)
] 中 Worker 发生意外致命错误
PROCACT_SYSTEM
ORA-06502: PL/SQL: 数字或值错误 : 字符串缓冲区太小
ORA-06512: 在 "SYS.DBMS_SYS_ERROR", line 105
ORA-06512: 在 "SYS.KUPW$WORKER", line 12620
ORA-06512: 在 "SYS.DBMS_SYS_ERROR", line 105
ORA-06512: 在 "SYS.KUPW$WORKER", line 34278
----- PL/SQL Call Stack -----
object line object
handle number name
00007FF70BE8F840 33476 package body SYS.KUPW$WORKER.WRITE_ERROR_INFORMATION
00007FF70BE8F840 12641 package body SYS.KUPW$WORKER.DETERMINE_FATAL_ERROR
00007FF70BE8F840 34341 package body SYS.KUPW$WORKER.SEND_TRACE_MSG
00007FF70BE8F840 28767 package body SYS.KUPW$WORKER.SEND_MSG
00007FF70BE8F840 5418 package body SYS.KUPW$WORKER.LOAD_METADATA
00007FF70BE8F840 13781 package body SYS.KUPW$WORKER.DISPATCH_WORK_ITEMS
00007FF70BE8F840 2429 package body SYS.KUPW$WORKER.MAIN
00007FF70BD34800 2 anonymous block
DBMS_LOB.TRIM
DBMS_LOB.FREETEMPORARY
DBMS_LOB.FREETEMPORARY
KUPW: In procedure UPDATE_TYPE_COMPLETION_ROW
KUPW: Old Seqno: 108 New Path: PO Num: -6 New Seqno: 0 error count: 1
KUPW: Primary row is: FALSE
KUPW: Working on old seqno with count of: 4
KUPW: In procedure SEND_MSG. Fatal=0
KUPW: Error count: 1
KUPW: In procedure DETERMINE_FATAL_ERROR with ORA-06502: PL/SQL: 数字或值错误 : 字符串缓冲区太小
ORA-39083: 对象类型 PROCACT_SYSTEM 创建失败, 出现错误:
ORA-29371: 暂挂区未激活
失败的 sql 为:
BEGIN
dbms_resource_manager.set_consumer_group_mapping_pri(1,7,6,9,8,10,5,4,3,2,11);
dbms_resource_manager.set_consumer_group_mapping('ORACLE_USER','"SYSTEM"','SYS_GROUP');
dbms_resource_manager.set_consumer_group_mapping('ORACLE_USER','"SYS"','SYS_GROUP');
dbms_resource_manager.set_consumer_group_mapping('ORACLE_FUNCTION','"BACKUP"','BATCH_GROUP');
dbms_resource_manager.set_consumer_group_mapping('ORACLE_FUNCTION','"COPY"','BATCH_GROUP');
dbms_resource_manager.set_consumer_group_mapping('ORACLE_FUNCTION','"DATALOAD"','ETL_GROUP');
dbms_resource_manager.submit_pending_area;COMMIT; END;
ORA-39083: 对象类型 PROCACT_SYSTEM 创建失败, 出现错误:
ORA-04042: 过程, 函数, 程序包或程序包体不存在
失败的 sql 为:
BEGIN
SYS.DBMS_UTILITY.EXEC_DDL_STATEMENT('GRANT EXECUTE ON DBMS_DEFER_SYS TO "DBA"');COMMIT; END;
4.3、源端与目标端进行SPA
4.3.1、源端操作
1、环境准备
创建SPA专用用户
create user spa identified by spa default tablespace users;
grant dba to spa;
grant advisor to spa;
grant select any dictionary to spa;
grant administer sql tuning set to spa;
2、采集数据
a)在生产库转化AWR中SQL为SQL Tuning Set
b)在生产库从现有SQL Tuning Set提取SQL
在生产端，使用Oracle SQL Tuning工具包，从AWR资料库数据中转化得到SQL Tuning Set，用于整个SPA测试流程中的SQL来源。
为了确保对生产环境影响最小，我们只对生产端采集AWR的SQL，具体采集步骤如下：
a、获取AWR快照的边界ID
set lines 188 pages 1000
col snap_time for a22
col min_id new_value minid
col max_id new_value maxid
select min(snap_id) min_id, max(snap_id) max_id
from dba_hist_snapshot
where end_interval_time > trunc(sysdate)-30
order by 1;
MIN_ID MAX_ID
---------- ----------
20 20
b、 创建SQL Set
连接用户：
conn spa/spa
如果之前有这个SQLSET的名字，可以这样删除：
EXEC DBMS_SQLTUNE.DROP_SQLSET (SQLSET_NAME => 'SOL_SQLSET_201906', SQLSET_OWNER => 'SPA');
新建SQLSET：SOL_SQLSET_201906
EXEC DBMS_SQLTUNE.CREATE_SQLSET (-
SQLSET_NAME => 'SOL_SQLSET_201906',-
DESCRIPTION => 'SQL Set Create at : '||TO_CHAR(SYSDATE, 'YYYY-MM-DD HH24:MI:SS'),-
SQLSET_OWNER => 'SPA');
查询sql set信息：
col DESCRIPTION for a50
select owner,name,STATEMENT_COUNT,DESCRIPTION,CREATED from dba_sqlset;
OWNER NAME STATEMENT_COUNT DESCRIPTION CREATED
------------------------------ ------------------------------ --------------- -------------------------------------------------- ---------
SPA SOL_SQLSET_201906 0 SQL Set Create at : 2019-06-17 23:57:05 17-JUN-19
c、 转化AWR数据中的SQL数据，将其中的SQL载入到SQL Set中
注意：过滤太多的账户会报错
从AWR中提取：
DECLARE
SQLSET_CUR DBMS_SQLTUNE.SQLSET_CURSOR;
BEGIN
OPEN SQLSET_CUR FOR
SELECT VALUE(P) FROM TABLE(
DBMS_SQLTUNE.SELECT_WORKLOAD_REPOSITORY( 20, 21,
'PARSING_SCHEMA_NAME NOT IN (''SYS'', ''SYSTEM'')',
NULL, NULL, NULL, NULL, 1, NULL, 'ALL')) P;
DBMS_SQLTUNE.LOAD_SQLSET(
SQLSET_NAME => 'SOL_SQLSET_201906',
SQLSET_OWNER => 'SPA',
POPULATE_CURSOR => SQLSET_CUR,
LOAD_OPTION => 'MERGE',
UPDATE_OPTION => 'ACCUMULATE');
CLOSE SQLSET_CUR;
END;
/
查询sql set信息：
col DESCRIPTION for a50
select owner,name,STATEMENT_COUNT,DESCRIPTION,CREATED from dba_sqlset;
OWNER NAME STATEMENT_COUNT DESCRIPTION CREATED
------------------------------ ------------------------------ --------------- -------------------------------------------------- ---------
SPA SOL_SQLSET_201906 5 SQL Set Create at : 2019-06-17 23:57:05 17-JUN-19
d、 转化当前cursor cache中的SQL数据，将其中的SQL载入到SQL Set中
从当前cursor cache中提取：排除sys、system用户执行的语句
DECLARE
SQLSET_CUR DBMS_SQLTUNE.SQLSET_CURSOR;
BEGIN
OPEN SQLSET_CUR FOR
SELECT VALUE(P) FROM TABLE(
DBMS_SQLTUNE.SELECT_CURSOR_CACHE(
'PARSING_SCHEMA_NAME NOT IN (''SYS'', ''SYSTEM'')',
NULL, NULL, NULL, NULL, 1, NULL,'ALL')) P;
DBMS_SQLTUNE.LOAD_SQLSET(
SQLSET_NAME => 'SOL_SQLSET_201906',
SQLSET_OWNER => 'SPA',
POPULATE_CURSOR => SQLSET_CUR,
LOAD_OPTION => 'MERGE',
UPDATE_OPTION => 'ACCUMULATE');
CLOSE SQLSET_CUR;
END;
/
查询sql set信息：
col DESCRIPTION for a50
select owner,name,STATEMENT_COUNT,DESCRIPTION,CREATED from dba_sqlset;
OWNER NAME STATEMENT_COUNT DESCRIPTION CREATED
------------------------------ ------------------------------ --------------- -------------------------------------------------- ---------
SPA SOL_SQLSET_201906 36 SQL Set Create at : 2019-06-17 23:57:05 17-JUN-19
e、 打包SQL Set
DROP TABLE SPA.SOL_STSTAB_201906;
EXEC DBMS_SQLTUNE.CREATE_STGTAB_SQLSET ('SOL_STSTAB_201906', 'SPA', 'USERS');
EXEC DBMS_SQLTUNE.PACK_STGTAB_SQLSET ( -
SQLSET_NAME => 'SOL_SQLSET_201906', -
SQLSET_OWNER => 'SPA', -
STAGING_TABLE_NAME => 'SOL_STSTAB_201906', -
STAGING_SCHEMA_OWNER => 'SPA');
查看spa下用户下的表对象：
SQL> select * from tab;
TNAME TABTYPE CLUSTERID
------------------------------ ------- ----------
SOL_STSTAB_201906 TABLE
4.3.3、源端操作（导出SPA的数据）
打包(pack)转化后的SQL Tuning Set，并导出传输到测试服务器
将采集到的数据打包后，需要将其中生产库导出，并传输到测试服务器中，用于在测试数据库中进行SPA测试工作。
1）在操作系统中，导出打包后的SQL Set数据
[oracle@source ~]$ cat /home/oracle/export_sqlset_201903.par USERID=spa/spa FILE=SOL_STSTAB_201906.dmp LOG=exp_spa_sqlset_201906.log TABLES=SOL_STSTAB_201906 DIRECT=Y BUFFER=10240000 STATISTICS=NONE
导出数据
[oracle@source ~]$ export NLS_LANG=AMERICAN_AMERICA.ZHS16GBK [oracle@source ~]$ exp PARFILE=export_sqlset_201906.par Export: Release 11.2.0.4.0 - Production on Tue Jun 18 00:17:57 2019 Copyright (c) 1982, 2011, Oracle and/or its affiliates. All rights reserved. Connected to: Oracle Database 11g Enterprise Edition Release 11.2.0.4.0 - 64bit Production With the Partitioning, OLAP, Data Mining and Real Application Testing options Export done in ZHS16GBK character set and AL16UTF16 NCHAR character set About to export specified tables via Direct Path ... Table SOL_STSTAB_201906 will be exported in conventional path. . . exporting table SOL_STSTAB_201906 183 rows exported Export terminated successfully without warnings.
2）将导出后的Dump文件传输到测试服务器
将SOL_STSTAB_201906.dmp 传输到 目标服务器 [C:\Users\li] 下：
4.3.4、目标端操作
1、环境准备
创建SPA专用用户
为了进行SPA测试，在测试数据库中创建SPA测试专用用户，避免与其他用户相互混淆与可能产生的误操作。
create user spa identified by spa default tablespace users;
grant dba to spa;
grant advisor to spa;
grant select any dictionary to spa;
grant administer sql tuning set to spa;
2、 测试准备
导入SQL Tuning Set表，并解包(unpack)，创建SPA分析任务
在进行SPA测试前需要准备测试环境，包括导入生产库中的SQL Set，对其进行解包(unpack)操作，并创建SPA分析任务。
1）在操作系统中，执行导入命令，导入SQL Set表
###win使用imp，进入到dmp的文件位置
C:\Users\li>imp USERID=spa/spa FILE=SOL_STSTAB_201906.dmp LOG=imp_spa_sqlset_201906.log FULL=Y
Import: Release 19.0.0.0.0 - Production on 星期二 6月 18 15:33:34 2019
Version 19.3.0.0.0
Copyright (c) 1982, 2019, Oracle and/or its affiliates. All rights reserved.
连接到: Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.3.0.0.0
经由直接路径由 EXPORT:V11.02.00 创建的导出文件
已经完成 ZHS16GBK 字符集和 AL16UTF16 NCHAR 字符集中的导入
IMP-00403:
警告: 此导入生成了单独的 SQL 文件 "imp_spa_sqlset_201906_sys.sql", 其中包含了由于权限问题而失败的 DDL。
. 正在将 SPA 的对象导入到 SPA
. 正在将 SPA 的对象导入到 SPA
IMP-00015: 由于对象已存在, 下列语句失败:
"CREATE PUBLIC SYNONYM "ANYDATA" FOR "SYS"."ANYDATA""
. . 正在导入表 "SOL_STSTAB_201906"导入了 183 行
成功终止导入, 但出现警告。
2）连接到spa
C:\Users\li>sqlplus spa/spa
3）解包(unpack)SQL Set
