ORA-07445: [kkorminl()+306] 故障处理

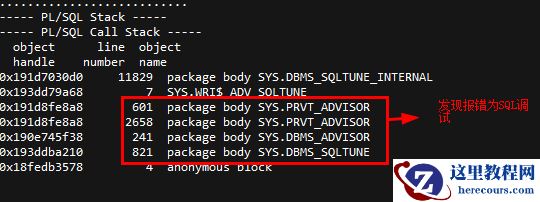

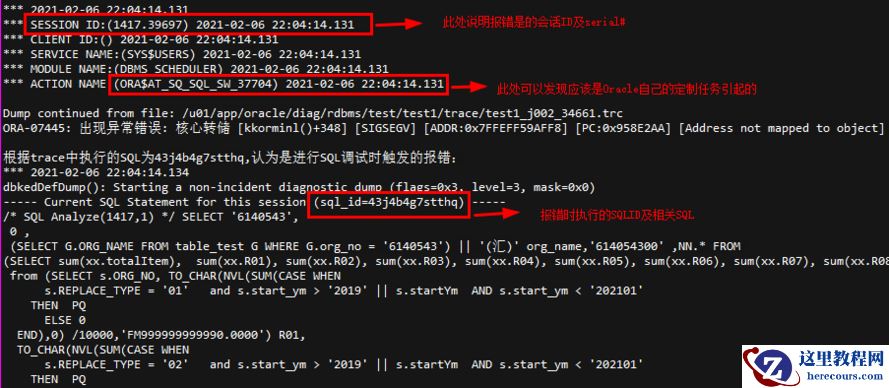

1 数据库告警Sun Feb 07 10:03:50 2021Exception [type: SIGSEGV, Address not mapped to object] [ADDR:0x7FFEF8708FF8] [PC:0x958E280, kkorminl()+306] [flags: 0x0, count: 1]Errors in file /u01/app/oracle/diag/rdbms/test/test2/trace/test2_j000_94047.trc  (incident=301804): ORA-07445: exception encountered: core dump [kkorminl()+306] [SIGSEGV] [ADDR:0x7FFEF8708FF8] [PC:0x958E280] [Address not mapped to object] []Incident details in: /u01/app/oracle/diag/rdbms/test/test2/incident/incdir_301804/test2_j000_94047_i301804.trcUse ADRCI or Support Workbench to package the incident.2 查看trace文件 发现应该是ORA$AT_SQ_SQL_SW_37704 SQL调试引起的 3 根据trace文件中的sid和serial#,查看此会话执行的SQL，发现同trace中报错的SQL是一致的 SQL>  select INSTANCE_NUMBER,to_char(SAMPLE_TIME,'yyyy-mm-dd HH24:mi:ss'),SESSION_ID,SESSION_SERIAL#,SQL_ID from dba_hist_active_sess_history where   2  SESSION_ID=1417  and SESSION_SERIAL#=39697;   I TO_CHAR(SAMPLE_TIME SESSION_ID SESSION_SERIAL# SQL_ID --- ------------------- ---------- --------------- ------------------   1 2021-02-06 22:03:40       1417           39697 424h0nf7bhqzd   1 2021-02-06 22:03:50       1417           39697 a4spu779ntqpd   1 2021-02-06 22:04:00       1417           39697 fh6jwhykj1v30   1 2021-02-06 22:04:10       1417           39697 43j4b4g7stthq   1 2021-02-06 22:04:20       1417           39697 43j4b4g7stthq 4 根据报错的信息，对相关SQL再次进行调试测试，看是否可以再次触发ORA-07445，发现进行调试，再次触发了ORA-07445错误 SQL> @?/rdbms/admin/sqltrpt.sql 15 Most expensive SQL in the cursor cache ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ................................. Specify the Sql id ~~~~~~~~~~~~~~~~~~ Enter value for sqlid: 43j4b4g7stthq Sql Id specified: 43j4b4g7stthq Tune the sql ~~~~~~~~~~~~ ERROR: ORA-03114: not connected to ORACLE DECLARE * ERROR at line 1: ORA-03113: end-of-file on communication channel Process ID: 84320 Session ID: 1537 Serial number: 30531 ERROR: ORA-03114: not connected to ORACLE 5 在执行此SQL的调试时，触发了ORA-07445错误Mon Feb 08 18:17:23 2021Exception [type: SIGSEGV, Address not mapped to object] [ADDR:0x7FFBFF42AFE8] [PC:0x958E280, kkorminl()+306] [flags: 0x0, count: 1]Errors in file /u01/app/oracle/diag/rdbms/test/test1/trace/test1_ora_84320.trc  (incident=302098):ORA-07445: exception encountered: core dump [kkorminl()+306] [SIGSEGV] [ADDR:0x7FFBFF42AFE8] [PC:0x958E280] [Address not mapped to object] []Incident details in: /u01/app/oracle/diag/rdbms/test/test1/incident/incdir_302098/test1_ora_84320_i302098.trcUse ADRCI or Support Workbench to package the incident.See Note 411.1 at My Oracle Support for error and packaging details. 6  查看数据库的定制JOB，发现SQL调试是开启的 SQL> select client_name,status from dba_autotask_client where client_name='sql tuning advisor' and status='ENABLED'; CLIENT_NAME                                                      STATUS ---------------------------------------------------------------- -------- sql tuning advisor                                               ENABLED 7 根据ORA-07445 Core dump file generation and ORA-07445 [kkorminl()] error (Doc ID 2198790.1)文档，此BUG的修复需要禁用sql tuning advisor Core dump file generation and ORA-07445 [kkorminl()] error (Doc ID 2198790.1) In this Document Symptoms Cause Solution References APPLIES TO: Oracle Database - Enterprise Edition - Version 11.2.0.4 and later Oracle Database Cloud Schema Service - Version N/A and later Oracle Database Exadata Cloud Machine - Version N/A and later Oracle Cloud Infrastructure - Database Service - Version N/A and later Oracle Database Backup Service - Version N/A and later Information in this document applies to any platform. SYMPTOMS 1. ORA-07445 error reported in the alert log: ORA-07445: exception encountered: core dump [kkorminl()] 2. Incident trace reports the error plus details indicating execution of SQL Tuning Advisor: ORA-07445: exception encountered: core dump [kkorminl()] [SIGSEGV] [ADDR:0xFFFFFFFF7DFFE000] [PC:0x102EA4860] [Stack Overflow] [] ... ----- Current SQL Statement for this session (sql_id=9v57mb092px43) ----- /* SQL Analyze(320,1) */ SELECT ....... ----- PL/SQL Call Stack ----- object line object handle number name 4fb303040 0 package body SYS.DBMS_SQLTUNE_INTERNAL 4fb225fa0 0 SYS.WRI$_ADV_SQLTUNE 4fb5e12c8 0 package body SYS.PRVT_ADVISOR 4fb5e12c8 0 package body SYS.PRVT_ADVISOR 4fb30c598 0 package body SYS.DBMS_ADVISOR 4fb80aba0 0 package body SYS.DBMS_SQLTUNE 4fb267828 4 anonymous block 3. Call Stack similar to: kkorminl <- kkorminl <- kkorminl <- kkorminl <- kkorminl <- kkoConvertFilterInLists <- kkoipt <- kkoqbc <- apakkoqb <- apaqbdDescendents <- apadrv CAUSE This has been investigated in the below bug Bug 18451758 : ORA-07445 [KKORMINL+306] SOON AFTER JOB SYS_AUTO_SQL_TUNING_TASK RUNS ==== closed as duplicate Bug 17339455 ORA-7445 [kkorminl] or similar can occur when running Automatic tuning tasks / DBMS_SQLTUNE Index Advisor - this is a code defect SOLUTION 1. Install patch 17339455 OR 2. WORKAROUND If the issue occurs during automatic tuning then an option to avoid the dumps is to disable the automatic tuning job. eg: BEGIN dbms_auto_task_admin.disable( client_name => 'sql tuning advisor', operation => NULL, window_name => NULL); END; / OR 3. Upgrade to a fixed release: - 12.1.0.2 - 12.2 (Future Release) 8 使用文档的方法，禁用SQl的自动调试
