ORA-600 16703故障解析—tab$表被清空

来源：这里教程网时间：2026-03-03 16:47:14 作者：

最近连续遇到两次数据库启动报ORA-600 16703错误,而导致数据库无法正常启动的问题

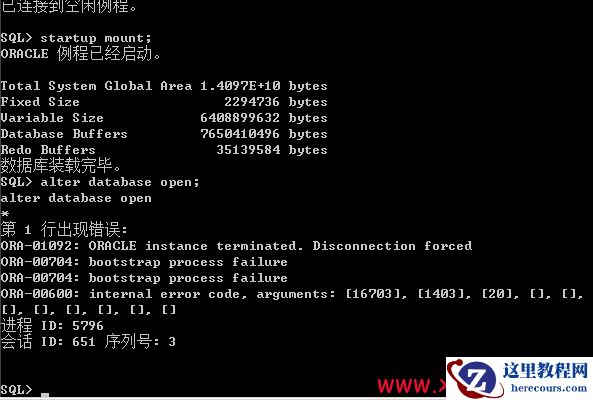

ORA-600 16703报错 ora-600-16703

Completed: ALTER DATABASE RECOVER  database

alter database
open

Beginning crash recovery of 1 threads


parallel recovery started with 32 processes

Started redo scan

Completed redo scan


read
0 KB redo, 0 data blocks need recovery

Started redo application at


Thread 1: logseq 993752, block 2, scn 14872376881763

Recovery of Online Redo Log: Thread 1 Group 6 Seq 993752 Reading mem 0


Mem
# 0: /oracle/oradata/xifenfei/redo06.log

Completed redo application of 0.00MB

Completed crash recovery at


Thread 1: logseq 993752, block 3, scn 14872376901765


0 data blocks
read
, 0 data blocks written, 0 redo k-bytes
read

Tue Jul 04 23:13:29 2017

Thread 1 advanced to log sequence 993753 (thread
open
)

Thread 1 opened at log sequence 993753


Current log
# 7 seq# 993753 mem# 0: /oracle/oradata/xifenfei/redo07.log

Successful
open
of redo thread 1

MTTR advisory is disabled because FAST_START_MTTR_TARGET is not
set

Tue Jul 04 23:13:29 2017

SMON: enabling cache recovery

Errors
in
file
/oracle/diag/rdbms/xifenfei/xifenfei/trace/xifenfei_ora_15886
.trc  (incident=163595):

ORA-00600: internal error code, arguments: [16703], [1403], [20], [], [], [], [], [], [], [], [], []

Incident details
in
:
/oracle/diag/rdbms/xifenfei/xifenfei/incident/incdir_163595/xifenfei_ora_15886_i163595
.trc

Tue Jul 04 23:13:30 2017

Use ADRCI or Support Workbench to package the incident.

See Note 411.1 at My Oracle Support
for
error and packaging details.

Errors
in
file
/oracle/diag/rdbms/xifenfei/xifenfei/trace/xifenfei_ora_15886
.trc:

ORA-00704: bootstrap process failure

ORA-00704: bootstrap process failure

ORA-00600: internal error code, arguments: [16703], [1403], [20], [], [], [], [], [], [], [], [], []

Errors
in
file
/oracle/diag/rdbms/xifenfei/xifenfei/trace/xifenfei_ora_15886
.trc:

ORA-00704: bootstrap process failure

ORA-00704: bootstrap process failure

ORA-00600: internal error code, arguments: [16703], [1403], [20], [], [], [], [], [], [], [], [], []

Error 704 happened during db
open
, shutting down database

USER (ospid: 15886): terminating the instance due to error 704

Instance terminated by USER, pid = 15886

ORA-1092 signalled during: alter database
open
...

opiodr aborting process unknown ospid (15886) as a result of ORA-1092

这里报错比较明显ORA-600 16703,而且是在启动时bootstrap$中的对象出现该问题.

10046分析启动过程

=====================

select
rowcnt,blkcnt,empcnt,avgspc,chncnt,avgrln,nvl(degree,1), nvl(instances,1) from tab$ where obj
# = :1

END OF STMT

PARSE
#140048443935120:c=0,e=390,p=0,cr=0,cu=0,mis=1,r=0,dep=1,og=4,plh=0,tim=1499185905161433

=====================

select
blevel, leafcnt, distkey, lblkkey, dblkkey, clufac,        nvl(degree,1), nvl(instances,1) from ind$ where bo
# = :1 and obj# = :2

END OF STMT

PARSE
#140048443934176:c=1000,e=601,p=0,cr=0,cu=0,mis=1,r=0,dep=1,og=4,plh=0,tim=1499185905162088

=====================

PARSING IN CURSOR
#140048443933232 len=70 dep=1 uid=0 oct=3 lid=0 tim=1499185905162444 hv=3377894161 ad='84f13d70' sqlid='32d4jrb4pd4sj'

select
charsetid, charsetform from col$  where obj
# = :1 and col# = :2

END OF STMT

PARSE
#140048443933232:c=0,e=294,p=0,cr=0,cu=0,mis=1,r=0,dep=1,og=4,plh=0,tim=1499185905162443

=====================

PARSING IN CURSOR
#140048443932288 len=52 dep=1 uid=0 oct=3 lid=0 tim=1499185905247020 hv=429618617 ad='84f0f2d0' sqlid='4krwuz0ctqxdt'

select
ctime, mtime, stime from obj$ where obj
# = :1

END OF STMT

PARSE
#140048443932288:c=0,e=549,p=0,cr=0,cu=0,mis=1,r=0,dep=1,og=4,plh=0,tim=1499185905247019

BINDS
#140048443932288:

select
blevel, leafcnt, distkey, lblkkey, dblkkey, clufac,        nvl(degree,1), nvl(instances,1) from ind$ where bo
# = :1 and obj# = :2

END OF STMT

PARSE
#140048443934176:c=1000,e=601,p=0,cr=0,cu=0,mis=1,r=0,dep=1,og=4,plh=0,tim=1499185905162088

=====================

PARSING IN CURSOR
#140048443933232 len=70 dep=1 uid=0 oct=3 lid=0 tim=1499185905162444 hv=3377894161 ad='84f13d70' sqlid='32d4jrb4pd4sj'

select
charsetid, charsetform from col$  where obj
# = :1 and col# = :2

END OF STMT

PARSE
#140048443933232:c=0,e=294,p=0,cr=0,cu=0,mis=1,r=0,dep=1,og=4,plh=0,tim=1499185905162443

=====================

PARSING IN CURSOR
#140048443932288 len=52 dep=1 uid=0 oct=3 lid=0 tim=1499185905247020 hv=429618617 ad='84f0f2d0' sqlid='4krwuz0ctqxdt'

select
ctime, mtime, stime from obj$ where obj
# = :1

END OF STMT

PARSE
#140048443932288:c=0,e=549,p=0,cr=0,cu=0,mis=1,r=0,dep=1,og=4,plh=0,tim=1499185905247019

BINDS
#140048443932288:


Bind
#0


oacdty=02 mxl=22(22) mxlc=00 mal=00 scl=00 pre=00


oacflg=00 fl2=0001 frm=00 csi=00 siz=24 off=0


kxsbbbfp=7f5f91b87bd0  bln=22  avl=02  flg=05


value=20

EXEC
#140048443932288:c=2000,e=2686,p=0,cr=0,cu=0,mis=1,r=0,dep=1,og=4,plh=1218588913,tim=1499185905249810

WAIT
#140048443932288: nam='db file sequential read' ela= 6205 file#=1 block#=337 blocks=1 obj#=36 tim=1499185905256132

WAIT
#140048443932288: nam='db file sequential read' ela= 3739 file#=1 block#=338 blocks=1 obj#=36 tim=1499185905266704

WAIT
#140048443932288: nam='db file sequential read' ela= 4966 file#=1 block#=241 blocks=1 obj#=18 tim=1499185905271761

FETCH
#140048443932288:c=0,e=21976,p=3,cr=3,cu=0,mis=0,r=1,dep=1,og=4,plh=1218588913,tim=1499185905271820

STAT
#140048443932288 id=1 cnt=1 pid=0 pos=1 obj=18 op='TABLE ACCESS BY INDEX ROWID OBJ$ (cr=3 pr=3 pw=0 time=21993 us)'

STAT
#140048443932288 id=2 cnt=1 pid=1 pos=1 obj=36 op='INDEX RANGE SCAN I_OBJ1 (cr=2 pr=2 pw=0 time=16923 us)'

CLOSE
#140048443932288:c=0,e=63,dep=1,type=0,tim=1499185905271941

BINDS
#140048443935120:


Bind
#0


oacdty=02 mxl=22(22) mxlc=00 mal=00 scl=00 pre=00


oacflg=08 fl2=0001 frm=00 csi=00 siz=24 off=0


kxsbbbfp=7f5f91c07de8  bln=22  avl=02  flg=05


value=20

EXEC
#140048443935120:c=1000,e=795,p=0,cr=0,cu=0,mis=1,r=0,dep=1,og=4,plh=2970138452,tim=1499185905272802

WAIT
#140048443935120: nam='db file sequential read' ela= 3197 file#=1 block#=169 blocks=1 obj#=3 tim=1499185905276069

WAIT
#140048443935120: nam='db file sequential read' ela= 3459 file#=1 block#=170 blocks=1 obj#=3 tim=1499185905404084

WAIT
#140048443935120: nam='db file sequential read' ela= 6358 file#=1 block#=145 blocks=1 obj#=4 tim=1499185905410548

FETCH
#140048443935120:c=999,e=137805,p=3,cr=3,cu=0,mis=0,r=0,dep=1,og=4,plh=2970138452,tim=1499185905410635

STAT
#140048443935120 id=1 cnt=0 pid=0 pos=1 obj=4 op='TABLE ACCESS CLUSTER TAB$ (cr=3 pr=3 pw=0 time=137810 us)'

STAT
#140048443935120 id=2 cnt=1 pid=1 pos=1 obj=3 op='INDEX UNIQUE SCAN I_OBJ# (cr=2 pr=2 pw=0 time=131330 us)'

*** 2017-07-05 00:31:46.094

Incident 176395 created, dump
file
:
/oracle/diag/rdbms/xifenfei/xifenfei/incident/incdir_176395/xifenfei_ora_51261_i176395
.trc

ORA-00600: internal error code, arguments: [16703], [1403], [20], [], [], [], [], [], [], [], [], []

报错信息明显,由于select rowcnt,blkcnt,empcnt,avgspc,chncnt,avgrln,nvl(degree,1), nvl(instances,1) from tab$ where obj# = :1无法正常执行.从而出现了ORA-600 16703的错误,更加直接一点的解释就是obj#=20的对象在tab$中找不到记录，从而出现此类报错.和官方解释ORA-600 TAB$和obj$不匹配一致.

分析system文件 通过dul等工具分析system文件发现tab$表记录为空

Data UnLoader: 11.2.0.1.5 - Internal Only - on Wed Jul 05 01:28:53 2017

with 64-bit io functions and the decompression option

Copyright (c) 1994 2017 Bernard van Duijnen All rights reserved.

Strictly Oracle Internal Use Only

Found db_id = 1334610369

Found db_name = xifenfei

DUL> unload table TAB$( OBJ
# number, DATAOBJ# number,

2      TS
# number, FILE# number, BLOCK# number,

3      BOBJ
# number, TAB# number, COLS number, CLUCOLS number,

4      PCTFREE$ ignore, PCTUSED$ ignore, INITRANS ignore, MAXTRANS ignore,

5      FLAGS ignore, AUDIT$ ignore, ROWCNT ignore, BLKCNT ignore,

6      EMPCNT ignore, AVGSPC ignore, CHNCNT ignore, AVGRLN ignore,

7      AVGSPC_FLB ignore, FLBCNT ignore,

8      ANALYZETIME ignore, SAMPLESIZE ignore,

9      DEGREE ignore, INSTANCES ignore,

10      INTCOLS ignore, KERNELCOLS number, PROPERTY number)

11      cluster  C_OBJ
#(OBJ#)

12      storage ( tablespace 0 segobjno 2 tabno 1
file
1 block 144);

. unloading table                      TAB$       0 rows unloaded

DUL> unload table OBJ$( OBJ
# number, DATAOBJ# number, OWNER# number,

2      NAME clean varchar2(30), NAMESPACE ignore, SUBNAME clean varchar2(30),

3      TYPE
# number, CTIME ignore, MTIME ignore, STIME ignore,

4      STATUS ignore, REMOTEOWNER ignore, LINKNAME ignore,

5      FLAGS ignore, OID$ hexraw)

6      storage ( tablespace 0 segobjno 18
file
1 block 240);

. unloading table                      OBJ$   89804 rows unloaded

DUL>

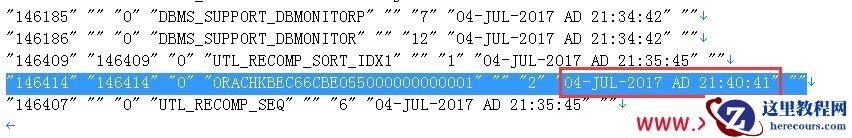

发现在obj$中有创建表ORACHKBEC66CBE055000000000001(ORACHK+16进制24位)的一个表名字 orachk

该表用途通过分析数据库日志发现 create table ORACHKBEC66CBE055000000000001 tablespace system as select * from sys.tab$; 也就是说,这个orachk的表是用来备份tab$的,然后进一步发现有delete from tab$.至此基本上分析清楚,tab$表备份到ORACHK表中,然后delete tab$表数据.实现数据库破坏以及难以恢复的效果.有点类似 plsql dev引起的数据库被黑勒索比特币实现原理分析和解决方案的破坏案例源头已经分析清楚,是有人篡改了oracle安装介质,导致数据库运行300天之后出现该问题,具体见: 警告：互联网中有oracle介质被注入恶意程序导致—ORA-600 16703
