OGG的抽取进程合并

来源：这里教程网时间：2026-03-03 17:16:13 作者：

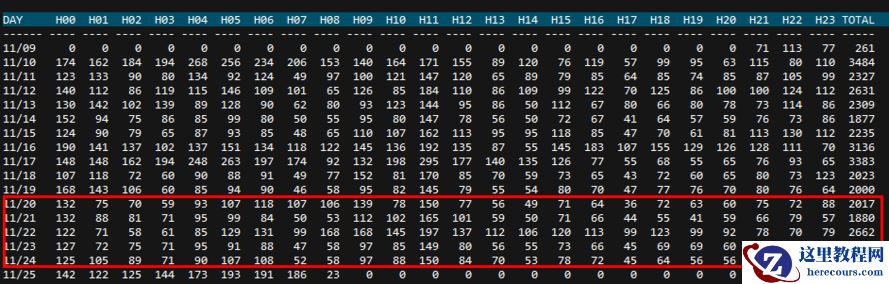

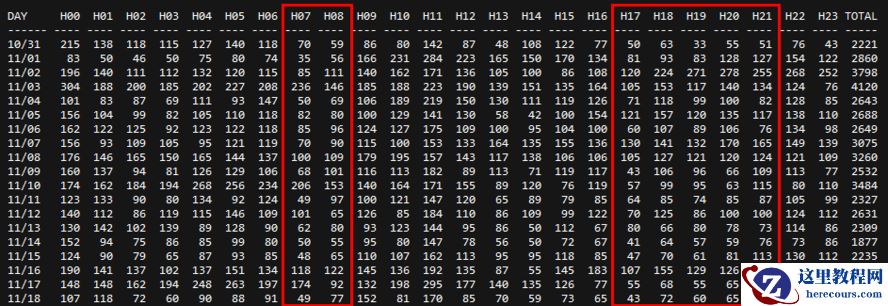

1 寻找一个时间点，四个OGG抽取进程读取的日志相差特别小，使用强制命令停止OGG进程首先根据归档日志切换，找到每日数据库压力最小的时间点，认为7-9点和17点-21点为业务数据量比较清闲是时间段。在此时间段内寻找合并的抽取进程差异最小的时间点，数据量相差在10M内。使用 info ET_* 查看合并的OGG抽取进程读取的归档日志，找到合并的进程差异最小时间点，并强行停止OGG抽取进程。如果MGR进程配置OGG进程自动重启，则需要将此参数禁用，并重启MGR进程。 SEND EXTRACT ET_CJ, FORCESTOP SEND EXTRACT ET_JA, FORCESTOP SEND EXTRACT ET_TB, FORCESTOP SEND EXTRACT ET_YD, FORCESTOP 停止后的状态如下 EXTRACT ABENDED ET_CJ 00:00:01 00:01:19 EXTRACT ABENDED ET_JA 00:00:01 00:01:16 EXTRACT STOPPED ET_TB 00:00:00 00:01:13 EXTRACT STOPPED ET_YD 00:00:01 00:01:13 查看每个抽取进程进程读取的RBA号的位置，并以最小的时间为准。 GGSCI (XXDB３) 24> info ET_* EXTRACT ET_CJ Last Started 2021-11-19 08:49 Status ABENDED Checkpoint Lag 00:00:01 (updated 00:00:13 ago) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:51:38 Thread 1, Seqno 923151, RBA 226304 SCN 3689.4151044528 (15848285399472) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:51:40 Thread 2, Seqno 513373, RBA 580112 SCN 3689.4151046683 (15848285401627) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:43:41 Thread 3, Seqno 700612, RBA 759541456 SCN 3689.4150310212 (15848284665156) EXTRACT ET_JA Last Started 2021-11-19 08:49 Status ABENDED Checkpoint Lag 00:00:01 (updated 00:00:10 ago) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:51:42 Thread 1, Seqno 923151, RBA 243200 SCN 3689.4151048854 (15848285403798) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:51:43 Thread 2, Seqno 513373, RBA 599568 SCN 3689.4151049970 (15848285404914) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:43:40 Thread 3, Seqno 700612, RBA 750326584 SCN 3689.4150309682 (15848284664626) EXTRACT ET_TB Last Started 2021-11-19 08:49 Status STOPPED Checkpoint Lag 00:00:00 (updated 00:00:07 ago) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:51:45 Thread 1, Seqno 923151, RBA 261120 SCN 3689.4151052791 (15848285407735) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:51:47 Thread 2, Seqno 513373, RBA 616292 SCN 3689.4151054181 (15848285409125) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:43:50 Thread 3, Seqno 700612, RBA 1104938896 SCN 3689.4150328763 (15848284683707) EXTRACT ET_YD Last Started 2021-11-19 08:49 Status STOPPED Checkpoint Lag 00:00:01 (updated 00:00:07 ago) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:51:45 Thread 1, Seqno 923151, RBA 259072 SCN 3689.4151052078 (15848285407022) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:51:46 Thread 2, Seqno 513373, RBA 614928 SCN 3689.4151053645 (15848285408589) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:43:50 Thread 3, Seqno 700612, RBA 1089680932 SCN 3689.4150328161 (15848284683105) 根据如上信息，决定使用使用每个线程最低的RBA号进行数据抽取，差异在10M内，有可能会导致目标端的数据有重复数据但不会导致数据丢失，应该是在可以接受的范围内。否则，则需要业务系统所有的业务，才能保证几个抽取进程读取的位置一致。实例1 2021-11-19 08:51:38 Thread 1, Seqno 923151, RBA 226304实例2 2021-11-19 08:51:40 Thread 2, Seqno 513373, RBA 580112实例3 2021-11-19 08:43:40 Thread 3, Seqno 700612, RBA 750326584 2 停止投递进程，并将投递进程中的参数文件予以修改。即将抽取进程中的表，复制到投递进程中， 并记录投递进程读取的RBA号，以作回退使用。 GGSCI (XXDB3) 24> stop DP_* Sending STOP request to EXTRACT DP_CJ ... Request processed. Sending STOP request to EXTRACT DP_JA ... Request processed. Sending STOP request to EXTRACT DP_TB ... Request processed. Sending STOP request to EXTRACT DP_YD ... Request processed. GGSCI (XXDB3) 25> info DP_* EXTRACT DP_CJ Last Started 2021-11-15 23:33 Status STOPPED Checkpoint Lag 00:00:00 (updated 00:00:08 ago) Log Read Checkpoint File ./dirdat/cj2/cj041171 2021-11-19 08:49:45.202412 RBA 1384 EXTRACT DP_JA Last Started 2021-11-19 09:42 Status STOPPED Checkpoint Lag 00:00:00 (updated 00:00:07 ago) Log Read Checkpoint File ./dirdat/ja/jb128023 2021-11-19 08:49:45.275881 RBA 1385 EXTRACT DP_TB Last Started 2021-11-15 23:33 Status STOPPED Checkpoint Lag 00:00:00 (updated 00:00:07 ago) Log Read Checkpoint File ./dirdat/tb/tb004071 2021-11-19 08:49:45.523086 RBA 1061 EXTRACT DP_YD Last Started 2021-11-15 23:33 Status STOPPED Checkpoint Lag 00:00:00 (updated 00:00:06 ago) Log Read Checkpoint File ./dirdat/yd/yd008514 2021-11-19 08:49:45.218477 RBA 1061 ３　将 ET_CJ、ET_JA、ET_TB、ET_YD 四个抽取进程中的表进行整理去重，合并到一起,并添加到ET_TB进程中此步骤相关的表就不列在此处了。 ４　调整ET_TB进程的trail文件大小及读取的位置，此此调整ｔｒａｉｌ文件大小，主要是解决１１G的OGG的ｔｒａｉｌ 文件号达到９９９９９９时的故障，提前进行处理，避免未来某一天因为此问题导致OGG进程的异常。 修改ET_TB 的抽取trail文件大小为2G extract Trail: ./dirdat/tb/tb extract: ET_TB Seqno: 4071 RBA: 1061 File Size: 200M --修改前 以下为执行的修改命令 GGSCI (XXDB3) 39> ALTER EXTTRAIL ./dirdat/tb/tb, EXTRACT ET_TB, MEGABYTES 2000 EXTTRAIL altered. extract Trail: ./dirdat/tb/tb extract: ET_TB Seqno: 4071 RBA: 1061 File Size: 2000M --修改后修改ET_TB 读取归档日志的位置： GGSCI (XXDB3) 41> info ET_tb EXTRACT ET_TB Initialized 2021-11-19 08:49 Status STOPPED Checkpoint Lag 00:00:00 (updated 01:19:32 ago) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:51:45 Thread 1, Seqno 923151, RBA 261120 SCN 3689.4151052791 (15848285407735) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:51:47 Thread 2, Seqno 513373, RBA 616292 SCN 3689.4151054181 (15848285409125) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:43:50 Thread 3, Seqno 700612, RBA 1104938896 SCN 3689.4150328763 (15848284683707) GGSCI (XXDB3) 42> ALTER EXTRACT ET_TB, Thread 1, ET_SEQNO 923151, ET_RBA 226304 EXTRACT altered. GGSCI (XXDB3) 43> ALTER EXTRACT ET_TB, Thread 2, ET_SEQNO 513373, ET_RBA 580112 EXTRACT altered. GGSCI (XXDB3) 44> ALTER EXTRACT ET_TB, Thread 3, ET_SEQNO 700612, ET_RBA 750326584 EXTRACT altered. GGSCI (XXDB3) 45> info ET_tb EXTRACT ET_TB Initialized 2021-11-19 10:12 Status STOPPED Checkpoint Lag 01:20:20 (updated 00:00:04 ago) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:51:45 Thread 1, Seqno 923151, RBA 226304 SCN 0.0 (0) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:51:47 Thread 2, Seqno 513373, RBA 580112 SCN 0.0 (0) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:43:50 Thread 3, Seqno 700612, RBA 750326584 SCN 0.0 (0) 5 启动OGG抽取进程，发现报错，对错误的处理 2021-11-19 10:13:14 INFO OGG-01516 Positioned to (Thread 2) Sequence 513373, RBA 580112, SCN 0.0, Nov 19, 2021 8:51:47 AM. 2021-11-19 10:13:14 INFO OGG-01513 Positioning to (Thread 3) Sequence 700612, RBA 750326584, SCN 0.0. 2021-11-19 10:13:15 INFO OGG-01516 Positioned to (Thread 3) Sequence 700612, RBA 750326584, SCN 0.0, Nov 19, 2021 8:43:50 AM. 2021-11-19 10:13:15 INFO OGG-01517 Position of first record processed for Thread 1, Sequence 923151, RBA 226320, SCN 3689.4151044612, N ov 19, 2021 8:51:38 AM. 2021-11-19 10:13:15 INFO OGG-01055 Recovery initialization completed for target file ./dirdat/tb/tb004071, at RBA 1061. 2021-11-19 10:13:15 INFO OGG-01478 Output file ./dirdat/tb/tb is using format RELEASE 11.2. 2021-11-19 10:13:15 INFO OGG-01026 Rolling over remote file ./dirdat/tb/tb004071. 2021-11-19 10:13:15 INFO OGG-01053 Recovery completed for target file ./dirdat/tb/tb004072, at RBA 1061. 2021-11-19 10:13:15 INFO OGG-01057 Recovery completed for all targets. *********************************************************************** ** Run Time Messages ** *********************************************************************** Source ContET_ : SourceModule : [er.redo.ora.rtc] SourceID : [/scratch/pradshar/view_storage/pradshar_pse_15852019/oggcore/OpenSys/src/app/er/redo/oracle/rtc.c] SourceFunction : [RTC_producer] SourceLine : [2111] ThreadBacktrace : [6] elements : [/goldengate/libgglog.so(CMessageContET_::AddThreadContET_()+0x1e) [0x7f46be57771e]] : [/goldengate/libgglog.so(CMessageFactory::CreateMessage(CSourceContET_*, unsigned int, ...)+0x2cc) [0x7f46be5706 bc]] : [/goldengate/libgglog.so(_MSG_ERR_ER_GENERIC_FAILURE(CSourceContET_*, char const*, CMessageFactory::MessageDispo sition)+0x31) [0x7f46be55b859]] : [/goldengate/ET_ract(RTC_producer+0x4f6) [0x72b826]] : [/lib64/libpthread.so.0(+0x7dd5) [0x7f46be6f1dd5]] : [/lib64/libc.so.6(clone+0x6d) [0x7f46ba78fb3d]] 2021-11-19 10:13:15 ERROR OGG-01028 Non-standard redo detected in 10g compatible format. 根据如下文档ET_ract Abends with OGG-01028 Non-Standard Redo Detected in 10g Compatible Format (Doc ID 1313864.1) 　进行调整，抽取进程恢复正常 以下为执行的操作 GGSCI (XXDB3) 53> ALTER EXTRACT ET_TB, Thread 2, BEGIN 2021-11-19 08:51:40 EXTRACT altered. GGSCI (XXDB3) 54> ALTER EXTRACT ET_TB, Thread 3, BEGIN 2021-11-19 08:43:40 EXTRACT altered. GGSCI (XXDB3) 59> info ET_tb　　　--OGG抽取进程已经恢复正常 EXTRACT ET_TB Last Started 2021-11-19 10:26 Status RUNNING Checkpoint Lag 01:26:07 (updated 00:00:00 ago) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:55:00 Thread 1, Seqno 923152, RBA 325136 SCN 3689.4151325171 (15848285680115) Log Read Checkpoint Oracle Redo Logs 2021-11-19 09:00:39 Thread 2, Seqno 513376, RBA 13507168 SCN 3689.4151908598 (15848286263542) Log Read Checkpoint Oracle Redo Logs 2021-11-19 08:43:40 Thread 3, Seqno 700612, RBA 748003028 SCN 3689.4150309574 (15848284664518) 查看生产的trail文件，为调整其它OGG投递进程做依据。[oracle@XXDB3 tb]$ ls -ltrtotal 3736044-rw-rw-rw- 1 oracle oinstall 1061 Nov 19 10:13 tb004071-rw-rw-rw- 1 oracle oinstall 1061 Nov 19 10:26 tb004072-rw-rw-rw- 1 oracle oinstall 1999998590 Nov 19 10:31 tb004073-rw-rw-rw- 1 oracle oinstall 798726201 Nov 19 10:32 tb004074 6 修改DP_tb 投递进程的大小，并启动（由于此投递进程以前就是ET_TB抽取进程对应的投递进程，故只需要调整大小就行了） GGSCI (XXDB3) 61> ALTER RMTTRAIL ./dirdat/tb, EXTRACT DP_TB, MEGABYTES 2000 RMTTRAIL altered. GGSCI (XXDB3) 62> info ET_trail ./dirdat/tb extract Trail: ./dirdat/tb ET_ract: DP_TB Seqno: 4066 RBA: 111462747 File Size: 2000M GGSCI (XXDB3) 64> start DP_TB Sending START request to MANAGER ... EXTRACT DP_TB starting GGSCI (XXDB3) 74> info DP_tb EXTRACT DP_TB Last Started 2021-11-19 10:31 Status RUNNING Checkpoint Lag 01:46:02 (updated 00:00:00 ago) Log Read Checkpoint File ./dirdat/tb/tb004074 2021-11-19 08:46:29.000000 RBA 1088769399 7 调整DP_CJ投递进程生成trail文件的大小，及读取trail文件的名称及位置(由于此投递进程都去的trail文件名不是ET_TB生成的trail文件名，故需要进行调整) 调整读取trail文件的名称 GGSCI (XXDB3) 80> ALTER EXTRACT DP_CJ, EXTTRAILSOURCE ./dirdat/tb/tb EXTRACT altered. 调整读取trail文件的RBA号 GGSCI (XXDB3) 81> ALTER DP_CJ,extseqno 4073,extrba 0 EXTRACT altered. GGSCI (XXDB3) 82> info DP_cj EXTRACT DP_CJ Initialized 2021-11-19 10:39 Status STOPPED Checkpoint Lag 00:00:00 (updated 00:00:09 ago) Log Read Checkpoint File ./dirdat/tb/tb004073 First Record RBA 0 调整TRAIL文件的大小 GGSCI (XXDB3) 83> ALTER RMTTRAIL ./dirdat/yx/yx, EXTRACT DP_CJ, MEGABYTES 2000 RMTTRAIL altered. ET_ract Trail: ./dirdat/yx/yx ET_ract: DP_CJ Seqno: 41162 RBA: 15795712 File Size: 2000M 启动 GGSCI (XXDB3) 84> start DP_cj Sending START request to MANAGER ... EXTRACT DP_CJ starting GGSCI (XXDB3) 91> ! info DP_cj EXTRACT DP_CJ Last Started 2021-11-19 10:41 Status RUNNING Checkpoint Lag 00:00:00 (updated 00:00:01 ago) Log Read Checkpoint File ./dirdat/tb/tb004085 2021-11-19 09:22:27.000000 RBA 1032207204 其它的OGG投递进程就不一一列举。 8 查看目标端OGG进程是否有报错，经验证，只要一个复制进程报ORA-00001错误，忽略后，问题解决。 9 对比4个OGG抽取进程合并后的性能，初步计算，4个OGG抽取进程合并为一个，每天大概能为磁盘节省12T到24T的IO。 经过几天的观察，OGG目前没有发生延迟，也未发生以前延迟88小时的现象。 9.1 从日志切换，在19日OGG抽取进程合并后22日有5T的归档日志量，但抽取进程没有任何延迟 9.2 从OGG抽取进程处理数据的性能来比对，发现峰值，OGG性能提升比以前提升许多倍。合并前，11月2日，处理数据的速度，根据delta（此值后续的数字为每秒中OGG抽取进程处理数据的数量）,每秒大概在几条数据，11月4日，为230条左右合并后，根据11月22日的数据，每秒4000条，有时能够达到5万条每秒，最高达到11万每秒根据delta信息的比对，可以发现OGG抽取进程性能最少提升20倍以上，最大估计能达到1000倍以上。通过此事件可以清晰的看出，不合理的架构，会极大的浪费系统的资源。稍微进行调整，性能就会有极大的提升。如果将另一个节点17个抽取进程合并为一个，估计每天就能为系统节省140T的IO吞吐量，想想都兴奋，主机的IO、CPU、内存、网络等性能压力都将进行释放，这是一个多么伟大的事件。估计比花100多万买设备的效果都好。 IT系统优化两条路，一为提升硬件的性能，二为优化业务系统。优化业务系统，需要懂数据库、业务、架构等各方面知识，且有多年经验的，能静下心来认值思考问题的可能原因，通过各种技术手段进行验证，才能找到解决问题的根源，否则一切都是都是空谈。
