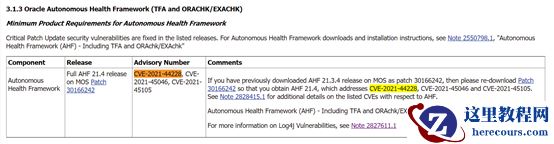

2021年12月10日，Oracle发布了Security Alert CVE-2021-44228，以回应2.15版本之前一个影响Apache Log4j的新漏洞的披露。
Oracle 19c安装时包括了AHF，19.12中AHF使用的log4j

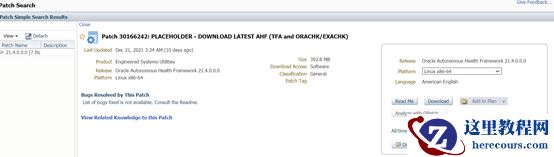

根据mos建议，需要下载Patch 30166242
[root@dbsrv1 opt]# find ./ -name log4j* ./oracle.ahf/common/jlib/log4j-core-2.13.3.jar ./oracle.ahf/common/jlib/log4j-api-2.13.3.jar
打补丁后AHF中的log4j版本为2.17.0
[root@odbsrv1 opt]# find ./ -name log4j* ./oracle.ahf/common/jlib/log4j-core-2.17.0.jar ./oracle.ahf/common/jlib/log4j-api-2.17.0.jar [root@dbsrv1 opt]#
1、 下载补丁Patch 30166242，校验检测后传入服务器，如果单位有安全要求，请先进行补丁介质的杀毒和登记，确保补丁不会对信息系统产生安全影响。
2、 补丁应用，该补丁应用其实是对AHF的升级。使用root用户进行升级操作
[root@dbsrv1 AHF]# ./ahf_setup AHF Installer for Platform Linux Architecture x86_64 AHF Installation Log : /tmp/ahf_install_214000_14448_2021_12_30-13_27_08.log Starting Autonomous Health Framework (AHF) Installation AHF Version: 21.4.0 Build Date: 202112200745 AHF is already installed at /opt/oracle.ahf Installed AHF Version: 21.2.4 Build Date: 202109222135 Do you want to upgrade AHF [Y]|N : Y AHF will also be installed/upgraded on these Cluster Nodes : 1. dbsrv2 The AHF Location and AHF Data Directory must exist on the above nodes AHF Location : /opt/oracle.ahf AHF Data Directory : /u01/app/grid/oracle.ahf/data Do you want to install/upgrade AHF on Cluster Nodes ? [Y]|N : Y Upgrading /opt/oracle.ahf Shutting down AHF Services Stopped OSWatcher Nothing to do ! Shutting down TFA Removed symlink /etc/systemd/system/multi-user.target.wants/oracle-tfa.service. Removed symlink /etc/systemd/system/graphical.target.wants/oracle-tfa.service. Successfully shutdown TFA.. Starting AHF Services Starting TFA.. Created symlink from /etc/systemd/system/multi-user.target.wants/oracle-tfa.service to /etc/systemd/system/oracle-tfa.service. Created symlink from /etc/systemd/system/graphical.target.wants/oracle-tfa.service to /etc/systemd/system/oracle-tfa.service. Waiting up to 100 seconds for TFA to be started.. . . . . . Successfully started TFA Process.. . . . . . TFA Started and listening for commands No new directories were added to TFA Directory /u01/app/grid/crsdata/dbsrv1/trace/chad was already added to TFA Directories. INFO: Starting orachk scheduler in background. Details for the process can be found at /u01/app/grid/oracle.ahf/data/dbsrv1/diag/orachk/compliance_start_301221_132959.log AHF upgrade completed on dbsrv1 节点1的AHF升级成功。继续进行节点2的升级 Upgrading AHF on Remote Nodes : AHF will be installed on dbsrv2, Please wait. AHF will prompt twice to install/upgrade per Remote Node. So total 2 prompts Do you want to continue Y|[N] : Y AHF will continue with Upgrading on remote nodes Upgrading AHF on dbsrv2 : [dbsrv2] Copying AHF Installer 输入节点2的root用户密码 root@dbsrv2's password: [dbsrv2] Running AHF Installer root@dbsrv2's password: Do you want AHF to store your My Oracle Support Credentials for Automatic Upload ? Y|[N] :N AHF is successfully upgraded to latest version .--------------------------------------------------------------. | Host | TFA Version | TFA Build ID | Upgrade Status | +--------+-------------+----------------------+----------------+ | dbsrv1 | 21.4.0.0.0 | 21400020211220074549 | UPGRADED | | dbsrv2 | 21.4.0.0.0 | 21400020211220074549 | UPGRADED | '--------+-------------+----------------------+----------------' Moving /tmp/ahf_install_214000_14448_2021_12_30-13_27_08.log to /u01/app/grid/oracle.ahf/data/dbsrv1/diag/ahf/ 3、 补丁应用验证 检查tfa状态 [root@dbsrv1 data]# tfactl tfactl> toolstatus Running command tfactltoolstatus on dbsrv2 ... .------------------------------------------------------------------. | TOOLS STATUS - HOST : dbsrv2 | +----------------------+--------------+--------------+-------------+ | Tool Type | Tool | Version | Status | +----------------------+--------------+--------------+-------------+ | AHF Utilities | alertsummary | 21.4.0 | DEPLOYED | | | calog | 21.4.0 | DEPLOYED | | | dbglevel | 21.4.0 | DEPLOYED | | | grep | 21.4.0 | DEPLOYED | | | history | 21.4.0 | DEPLOYED | | | ls | 21.4.0 | DEPLOYED | | | managelogs | 21.4.0 | DEPLOYED | | | menu | 21.4.0 | DEPLOYED | | | orachk | 21.4.0 | DEPLOYED | | | param | 21.4.0 | DEPLOYED | | | ps | 21.4.0 | DEPLOYED | | | pstack | 21.4.0 | DEPLOYED | | | summary | 21.4.0 | DEPLOYED | | | tail | 21.4.0 | DEPLOYED | | | triage | 21.4.0 | DEPLOYED | | | vi | 21.4.0 | DEPLOYED | +----------------------+--------------+--------------+-------------+ | Development Tools | oratop | 14.1.2 | DEPLOYED | +----------------------+--------------+--------------+-------------+ | Support Tools Bundle | darda | 2.10.0.R6036 | DEPLOYED | | | oswbb | 8.3.2 | RUNNING | | | prw | 12.1.13.11.4 | NOT RUNNING | '----------------------+--------------+--------------+-------------' Note :- DEPLOYED : Installed and Available - To be configured or run interactively. NOT RUNNING : Configured and Available - Currently turned off interactively. RUNNING : Configured and Available. .------------------------------------------------------------------. | TOOLS STATUS - HOST : dbsrv1 | +----------------------+--------------+--------------+-------------+ | Tool Type | Tool | Version | Status | +----------------------+--------------+--------------+-------------+ | AHF Utilities | alertsummary | 21.4.0 | DEPLOYED | | | calog | 21.4.0 | DEPLOYED | | | dbglevel | 21.4.0 | DEPLOYED | | | grep | 21.4.0 | DEPLOYED | | | history | 21.4.0 | DEPLOYED | | | ls | 21.4.0 | DEPLOYED | | | managelogs | 21.4.0 | DEPLOYED | | | menu | 21.4.0 | DEPLOYED | | | orachk | 21.4.0 | DEPLOYED | | | param | 21.4.0 | DEPLOYED | | | ps | 21.4.0 | DEPLOYED | | | pstack | 21.4.0 | DEPLOYED | | | summary | 21.4.0 | DEPLOYED | | | tail | 21.4.0 | DEPLOYED | | | triage | 21.4.0 | DEPLOYED | | | vi | 21.4.0 | DEPLOYED | +----------------------+--------------+--------------+-------------+ | Development Tools | oratop | 14.1.2 | DEPLOYED | +----------------------+--------------+--------------+-------------+ | Support Tools Bundle | darda | 2.10.0.R6036 | DEPLOYED | | | oswbb | 8.3.2 | RUNNING | | | prw | 12.1.13.11.4 | NOT RUNNING | '----------------------+--------------+--------------+-------------' Note :- DEPLOYED : Installed and Available - To be configured or run interactively. NOT RUNNING : Configured and Available - Currently turned off interactively. RUNNING : Configured and Available. tfactl> 检查oracle-tfa.service服务 [root@dbsrv1 data]# systemctl status oracle-tfa.service ● oracle-tfa.service - Oracle Trace File Analyzer Loaded: loaded (/etc/systemd/system/oracle-tfa.service; enabled; vendor preset: disabled) Active: active (running) since Thu 2021-12-30 13:29:41 CST; 6min ago Main PID: 24071 (init.tfa) CGroup: /system.slice/oracle-tfa.service ├─24071 /bin/sh /etc/init.d/init.tfa run >/dev/null 2>&1 </dev/null ├─24473 /opt/oracle.ahf/jre/bin/java -server -Xms256m -Xmx512m -Djava.awt.headless=true -Ddisable.checkForUpdate=true -XX:HeapDumpPath=/u01/app/grid/oracle.... ├─24607 /opt/oracle.ahf/jre/bin/java -server -Xms64m -Xmx128m -XX:HeapDumpPath=/u01/app/grid/oracle.ahf/data/dbsrv1/diag/tfa -DtfaHome=/opt/oracle.ahf/tfa -... └─51353 /bin/sleep 30 Dec 30 13:34:51 dbsrv1 su[45004]: (to oracle) root on none Dec 30 13:34:51 dbsrv1 su[45014]: (to oracle) root on none Dec 30 13:34:51 dbsrv1 su[45023]: (to oracle) root on none Dec 30 13:34:52 dbsrv1 su[45242]: (to grid) root on none Dec 30 13:34:52 dbsrv1 su[45251]: (to grid) root on none Dec 30 13:34:52 dbsrv1 su[45259]: (to oracle) root on none Dec 30 13:34:52 dbsrv1 su[45266]: (to oracle) root on none Dec 30 13:34:53 dbsrv1 su[45275]: (to oracle) root on none Dec 30 13:34:54 dbsrv1 su[45660]: (to grid) root on none Dec 30 13:34:55 dbsrv1 su[45813]: (to oracle) root on none
