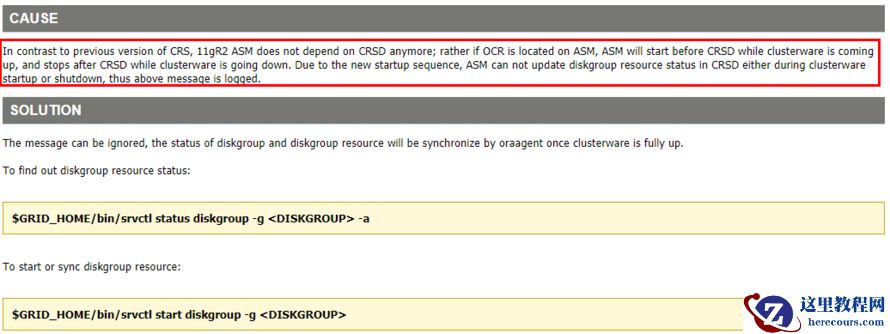

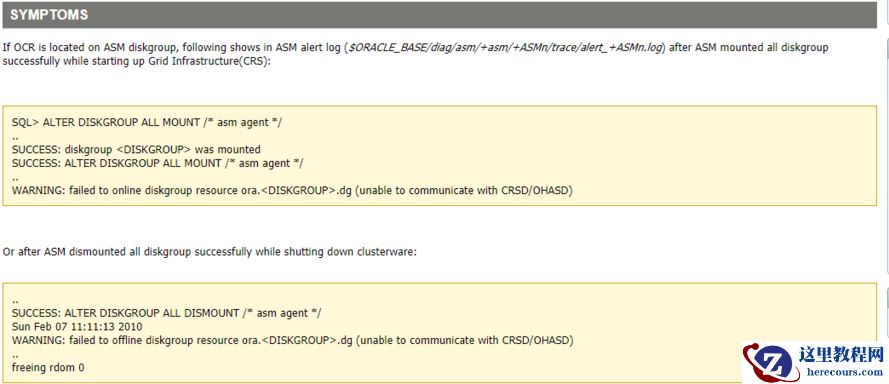

ERROR: failed to update diskgroup resource ora.OCR_NEW.dg

1 创建磁盘组 SQL>  CREATE DISKGROUP OCR_NEW NORMAL REDUNDANCY  DISK '/dev/oracledisk/ssd_ocr01', '/dev/oracledisk/ssd_ocr02','/dev/oracledisk/ssd_ocr03'  ATTRIBUTE 'compatible.asm'='11.2.0.0.0','au_size'='1M' ; Diskgroup created. 2 发现两个节点的磁盘组信息不一致 节点1 [grid@host1 ~]$ asmcmd ASMCMD> lsdg State    Type    Rebal  Sector  Block       AU  Total_MB  Free_MB  Req_mir_free_MB  Usable_file_MB  Offline_disks  Voting_files  Name MOUNTED  EXTERN  N         512   4096  1048576   1024000   955947                0          955947              0             N  ARCH/ MOUNTED  EXTERN  N         512   4096  1048576   3072000  1392206                0         1392206              0             N  DATA/ MOUNTED  NORMAL  N         512   4096  1048576     30720    29794            10240            9777              0             Y  OCR/ MOUNTED  NORMAL  N         512   4096  1048576     30720    30561            10240           10160              0             N  OCR_NEW/ 节点2 未发现相关磁盘组信息： [grid@host2 ~]$ asmcmd ASMCMD> lsdg State    Type    Rebal  Sector  Block       AU  Total_MB  Free_MB  Req_mir_free_MB  Usable_file_MB  Offline_disks  Voting_files  Name MOUNTED  EXTERN  N         512   4096  1048576   1024000   955947                0          955947              0             N  ARCH/ MOUNTED  EXTERN  N         512   4096  1048576   3072000  1392206                0         1392206              0             N  DATA/ MOUNTED  NORMAL  N         512   4096  1048576     30720    29794            10240            9777              0             Y  OCR/ 3 查看ASM实例的日志信息，发现在节点1报ERROR: failed to update diskgroup resource ora.OCR_NEW.dg 错误： 节点1： Wed Sep 14 16:14:09 2022 SQL>  CREATE DISKGROUP OCR_NEW NORMAL REDUNDANCY  DISK '/dev/oracledisk/ssd_ocr01', '/dev/oracledisk/ssd_ocr02', '/dev/oracledisk/ssd_ocr03' ATTRIBUTE 'compatible.asm'='11.2.0.0.0','au_size'='1M'   NOTE: Assigning number (4,0) to disk (/dev/oracledisk/ssd_ocr01) NOTE: Assigning number (4,1) to disk (/dev/oracledisk/ssd_ocr02) NOTE: Assigning number (4,2) to disk (/dev/oracledisk/ssd_ocr03) NOTE: initializing header on grp 4 disk OCR_NEW_0000 NOTE: initializing header on grp 4 disk OCR_NEW_0001 NOTE: initializing header on grp 4 disk OCR_NEW_0002 Wed Sep 14 16:14:09 2022 GMON updating for reconfiguration, group 4 at 43 for pid 34, osid 46138 NOTE: group 4 PST updated. NOTE: initiating PST update: grp = 4 GMON updating group 4 at 44 for pid 34, osid 46138 NOTE: group OCR_NEW: initial PST location: disk 0000 (PST copy 0) NOTE: group OCR_NEW: initial PST location: disk 0001 (PST copy 1) NOTE: group OCR_NEW: initial PST location: disk 0002 (PST copy 2) NOTE: PST update grp = 4 completed successfully  NOTE: cache registered group OCR_NEW number=4 incarn=0x3a020595 NOTE: cache began mount (first) of group OCR_NEW number=4 incarn=0x3a020595 NOTE: cache opening disk 0 of grp 4: OCR_NEW_0000 path:/dev/oracledisk/ssd_ocr01 NOTE: cache opening disk 1 of grp 4: OCR_NEW_0001 path:/dev/oracledisk/ssd_ocr02 NOTE: cache opening disk 2 of grp 4: OCR_NEW_0002 path:/dev/oracledisk/ssd_ocr03 Wed Sep 14 16:14:09 2022 * allocate domain 4, invalid = TRUE  kjbdomatt send to inst 2 Wed Sep 14 16:14:09 2022 NOTE: attached to recovery domain 4 NOTE: cache creating group 4/0x3A020595 (OCR_NEW) NOTE: cache mounting group 4/0x3A020595 (OCR_NEW) succeeded NOTE: allocating F1X0 on grp 4 disk OCR_NEW_0000 NOTE: allocating F1X0 on grp 4 disk OCR_NEW_0001 NOTE: allocating F1X0 on grp 4 disk OCR_NEW_0002 NOTE: Created Used Space Directory for 1 threads NOTE: diskgroup must now be re-mounted prior to first use NOTE: cache dismounting (clean) group 4/0x3A020595 (OCR_NEW)  NOTE: messaging CKPT to quiesce pins Unix process pid: 46138, image: oracle@host1 (TNS V1-V3) NOTE: lgwr not being msg'd to dismount kjbdomdet send to inst 2 detach from dom 4, sending detach message to inst 2 freeing rdom 4 NOTE: detached from domain 4 NOTE: cache dismounted group 4/0x3A020595 (OCR_NEW)  GMON dismounting group 4 at 45 for pid 34, osid 46138 GMON dismounting group 4 at 46 for pid 34, osid 46138 NOTE: Disk OCR_NEW_0000 in mode 0x7f marked for de-assignment NOTE: Disk OCR_NEW_0001 in mode 0x7f marked for de-assignment NOTE: Disk OCR_NEW_0002 in mode 0x7f marked for de-assignment SUCCESS: diskgroup OCR_NEW was created NOTE: cache deleting context for group OCR_NEW 4/0x3a020595 NOTE: cache registered group OCR_NEW number=4 incarn=0x42e20597 NOTE: cache began mount (first) of group OCR_NEW number=4 incarn=0x42e20597 NOTE: Assigning number (4,2) to disk (/dev/oracledisk/ssd_ocr03) NOTE: Assigning number (4,1) to disk (/dev/oracledisk/ssd_ocr02) NOTE: Assigning number (4,0) to disk (/dev/oracledisk/ssd_ocr01) NOTE: GMON heartbeating for grp 4 GMON querying group 4 at 49 for pid 34, osid 46138 NOTE: cache opening disk 0 of grp 4: OCR_NEW_0000 path:/dev/oracledisk/ssd_ocr01 NOTE: F1X0 found on disk 0 au 2 fcn 0.0 NOTE: cache opening disk 1 of grp 4: OCR_NEW_0001 path:/dev/oracledisk/ssd_ocr02 NOTE: F1X0 found on disk 1 au 2 fcn 0.0 NOTE: cache opening disk 2 of grp 4: OCR_NEW_0002 path:/dev/oracledisk/ssd_ocr03 NOTE: F1X0 found on disk 2 au 2 fcn 0.0 NOTE: cache mounting (first) normal redundancy group 4/0x42E20597 (OCR_NEW) * allocate domain 4, invalid = TRUE  kjbdomatt send to inst 2 NOTE: attached to recovery domain 4 NOTE: cache recovered group 4 to fcn 0.0 NOTE: redo buffer size is 256 blocks (1053184 bytes) Wed Sep 14 16:14:16 2022 NOTE: LGWR attempting to mount thread 1 for diskgroup 4 (OCR_NEW) NOTE: LGWR found thread 1 closed at ABA 0.10750 NOTE: LGWR mounted thread 1 for diskgroup 4 (OCR_NEW) NOTE: LGWR opening thread 1 at fcn 0.0 ABA 2.0 NOTE: setting 11.2 start ABA for group OCR_NEW thread 1 to 2.0 NOTE: cache mounting group 4/0x42E20597 (OCR_NEW) succeeded NOTE: cache ending mount (success) of group OCR_NEW number=4 incarn=0x42e20597 Wed Sep 14 16:14:17 2022 NOTE: Instance updated compatible.asm to 11.2.0.0.0 for grp 4 SUCCESS: diskgroup OCR_NEW was mounted SUCCESS:  CREATE DISKGROUP OCR_NEW NORMAL REDUNDANCY  DISK '/dev/oracledisk/ssd_ocr01','/dev/oracledisk/ssd_ocr02', '/dev/oracledisk/ssd_ocr03' ATTRIBUTE 'compatible.asm'='11.2.0.0.0','au_size'='1M'  Wed Sep 14 16:14:17 2022 NOTE: diskgroup resource ora.OCR_NEW.dg is online ERROR: failed to update diskgroup resource ora.OCR_NEW.dg 节点2： Wed Sep 14 09:57:30 2022 NOTE: membership refresh pending for group 2/0xe9470f1d (DATA) GMON querying group 2 at 29 for pid 18, osid 413705 GMON querying group 2 at 30 for pid 18, osid 413705 NOTE: Disk DATA_0000 in mode 0x0 marked for de-assignment NOTE: Disk DATA_0001 in mode 0x0 marked for de-assignment NOTE: Disk DATA_0002 in mode 0x0 marked for de-assignment NOTE: Disk DATA_0003 in mode 0x0 marked for de-assignment SUCCESS: refreshed membership for 2/0xe9470f1d (DATA) NOTE: Attempting voting file refresh on diskgroup DATA NOTE: Refresh completed on diskgroup DATA. No voting file found. Wed Sep 14 16:14:09 2022 * allocate domain 4, invalid = TRUE  freeing rdom 4  Received detach msg from inst 1 for dom 4 * allocate domain 4, invalid = TRUE  4 查看集群相关磁盘组信息，发现节点2的磁盘信息为offline [grid@host1 ~]$ crsctl stat res -t -------------------------------------------------------------------------------- NAME           TARGET  STATE        SERVER                   STATE_DETAILS        -------------------------------------------------------------------------------- Local Resources -------------------------------------------------------------------------------- ora.ARCH.dg                ONLINE  ONLINE       host1                                                    ONLINE  ONLINE       host2                                     ora.DATA.dg                ONLINE  ONLINE       host1                                                    ONLINE  ONLINE       host2                                     ora.LISTENER.lsnr                ONLINE  ONLINE       host1                                                    ONLINE  ONLINE       host2                                     ora.OCR.dg                ONLINE  ONLINE       host1                                                    ONLINE  ONLINE       host2                                     ora.OCR_NEW.dg                ONLINE  ONLINE       host1                                                    OFFLINE OFFLINE      host2  5 使用如下命令查看磁盘组的集群信息，只在节点1启动了               srvctl status diskgroup -g OCR_NEW -a         [grid@host1 ~]$  srvctl status diskgroup -g OCR_NEW -a Disk Group OCR_NEW is running on host1 Disk Group OCR_NEW is enabled     6 执行如下命令启动节点2上的磁盘组  srvctl start diskgroup -g OCR_NEW -n host2      节点1asm实例的日志信息：  Wed Sep 14 16:26:09 2022 NOTE: enlarging ACD to 2 threads for group 4/0x42e20597 (OCR_NEW) SUCCESS: ACD enlarged for group 4/0x42e20597 (OCR_NEW) 节点2asm实例的日志信息： Wed Sep 14 16:26:09 2022 NOTE: Instance updated compatible.asm to 11.2.0.0.0 for grp 4 SUCCESS: diskgroup OCR_NEW was mounted SUCCESS: ALTER DISKGROUP OCR_NEW MOUNT  /* asm agent *//* {1:55916:4774} */ Wed Sep 14 16:26:10 2022 NOTE: diskgroup resource ora.OCR_NEW.dg is updated 7 查看磁盘组相关信息，一切恢复正常 [grid@host1 ~]$ srvctl status diskgroup -g OCR_NEW -a Disk Group OCR_NEW is running on host1,host2 Disk Group OCR_NEW is enabled [grid@host1 ~]$ crsctl stat res -t -------------------------------------------------------------------------------- NAME           TARGET  STATE        SERVER                   STATE_DETAILS        -------------------------------------------------------------------------------- Local Resources -------------------------------------------------------------------------------- ora.ARCH.dg                ONLINE  ONLINE       host1                                                    ONLINE  ONLINE       host2                                     ora.DATA.dg                ONLINE  ONLINE       host1                                                    ONLINE  ONLINE       host2                                     ora.LISTENER.lsnr                ONLINE  ONLINE       host1                                                    ONLINE  ONLINE       host2                                     ora.OCR.dg                ONLINE  ONLINE       host1                                                    ONLINE  ONLINE       host2                                     ora.OCR_NEW.dg                ONLINE  ONLINE       host1                                                    ONLINE  ONLINE       host2                  [grid@host2 ~]$ asmcmd ASMCMD> lsdg State    Type    Rebal  Sector  Block       AU  Total_MB  Free_MB  Req_mir_free_MB  Usable_file_MB  Offline_disks  Voting_files  Name MOUNTED  EXTERN  N         512   4096  1048576   1024000   954153                0          954153              0             N  ARCH/ MOUNTED  EXTERN  N         512   4096  1048576   3072000  1392206                0         1392206              0             N  DATA/ MOUNTED  NORMAL  N         512   4096  1048576     30720    29794            10240            9777              0             Y  OCR/ MOUNTED  NORMAL  N         512   4096  1048576     30720    30435            10240           10097              0             N  OCR_NEW/   8 本文解决方法参照Oracle的官方文档《ALERT.LOG for ASM Shows "WARNING: failed to online diskgroup  resource ora.<DISKGROUP>.dg (unable to communicate with CRSD/OHASD)" (Doc ID 1060920.1)》，此文 说明从11.2.01以后，集群的启动顺序发现变化，且不依赖与ASM磁盘组，故导致刷新失败。
