Oracle数据库坏块典型案例分析

来源：这里教程网时间：2026-03-03 18:06:40 作者：

一、数据库坏块背景说明

某次，用户反馈数据库后台日志出现数据库坏块，部分表查询时报错。在业务恢复之后，通过梳理处理记录，做一次总结分析，以下将对该案例的诊断过程进行说明。

二、问题详细诊断过程

2 .1 数据库 alter 日志

Thu Jun 10 08:36:33 2021 OS Pid: 12648460 executed alter system set events '10231 trace name context forever,level 10' Thu Jun 10 08:37:38 2021 ALTER SYSTEM: Flushing buffer cache Thu Jun 10 08:37:55 2021 Hex dump of (file 62, block 5521) in trace file /oracle/oracle/diag/rdbms/orcl/orcl1/trace/orcl1_ora_12648460.trc Corrupt block relative dba: 0x0f801591 (file 62, block 5521) Bad header found during buffer read Data in bad block: type: 6 format: 2 rdba: 0x2acf8b99 last change scn: 0x0006.edc07b41 seq: 0x1 flg: 0x06 spare1: 0x0 spare2: 0x0 spare3: 0x0 consistency value in tail: 0x7b410601 check value in block header: 0xdb02 computed block checksum: 0x0 Reading datafile '+DATA/orcl/datafile/tbs_sys.ora' for corruption at rdba: 0x0f801591 (file 62, block 5521) Read datafile mirror 'DATA_0000' (file 62, block 5521) found same corrupt data (no logical check) WARNING: requested mirror side 2 of virtual extent 43 logical extent 1 offset 139264 is not allocated; I/O request failed Errors in file /oracle/oracle/diag/rdbms/orcl/orcl1/trace/orcl1_ora_12648460.trc (incident=912662): ORA-01578: ORACLE data block corrupted (file # 62, block # 5521) ORA-01110: data file 62: '+DATA/orcl/datafile/tbs_sys.ora' Incident details in: /oracle/oracle/diag/rdbms/orcl/orcl1/incident/incdir_912662/orcl1_ora_12648460_i912662.trc Thu Jun 10 08:37:55 2021 Corrupt Block Found TSN = 62, TSNAME = TBS_SYS RFN = 62, BLK = 5521, RDBA = 260052369 OBJN = 82103, OBJD = 82103, OBJECT = XXXX100D, SUBOBJECT = SEGMENT OWNER = XXXXXX_ST, SEGMENT TYPE = Table Segment Thu Jun 10 08:37:57 2021 Dumping diagnostic data in directory=[cdmp_20210610083757], requested by (instance=1, osid=12648460), summary=[incident=912662]. Thu Jun 10 08:37:58 2021 Sweep [inc][912662]: completed Sweep [inc2][912774]: completed Sweep [inc2][912662]: completed Thu Jun 10 08:38:14 2021 Dumping diagnostic data in directory=[cdmp_20210610083814], requested by (instance=2, osid=9175400), summary=[incident=353303]. Thu Jun 10 08:38:29 2021 OS Pid: 12648460 executed alter system set events '10231 trace name context off' 从数据库后台日志可以看出，数据文件 '+DATA/orcl/datafile/tbs_sys.ora' 发生损坏，出现了部分损坏的 block 。损坏的块属于 XXXXXX_ST 用户下的 XXXX100 表。

2 .2 操作系统错误日志

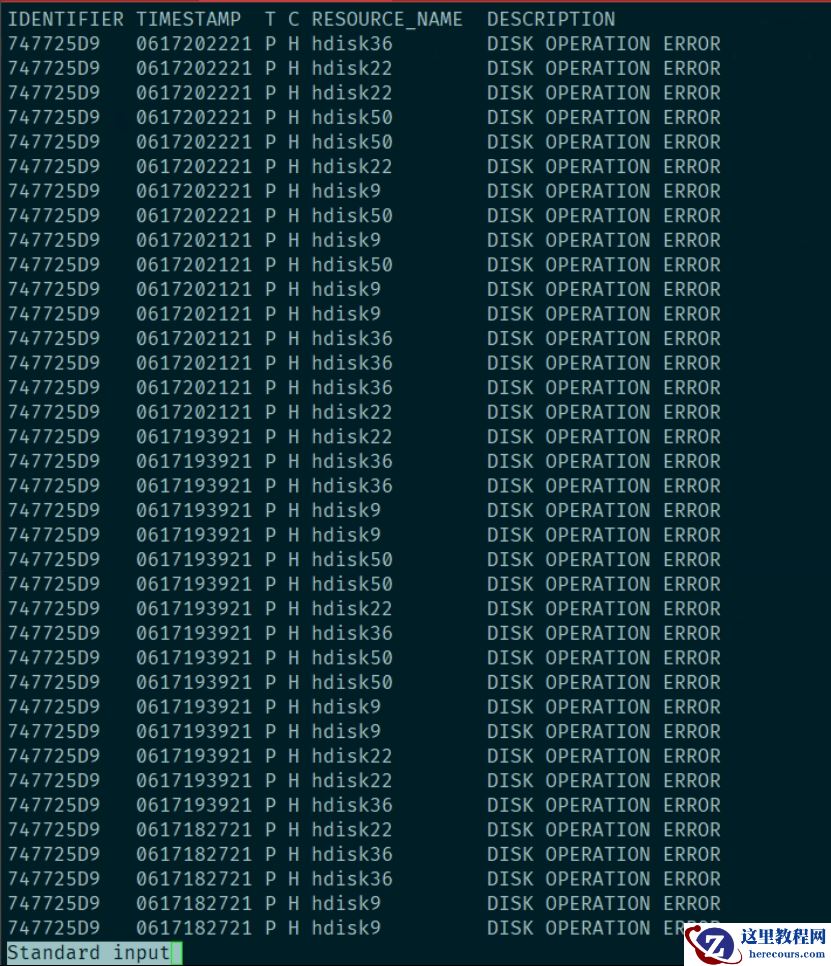

检查 A IX 主机的操作系统日志，发现存在多块磁盘存在 DISK OPERATION ERROR 错误。

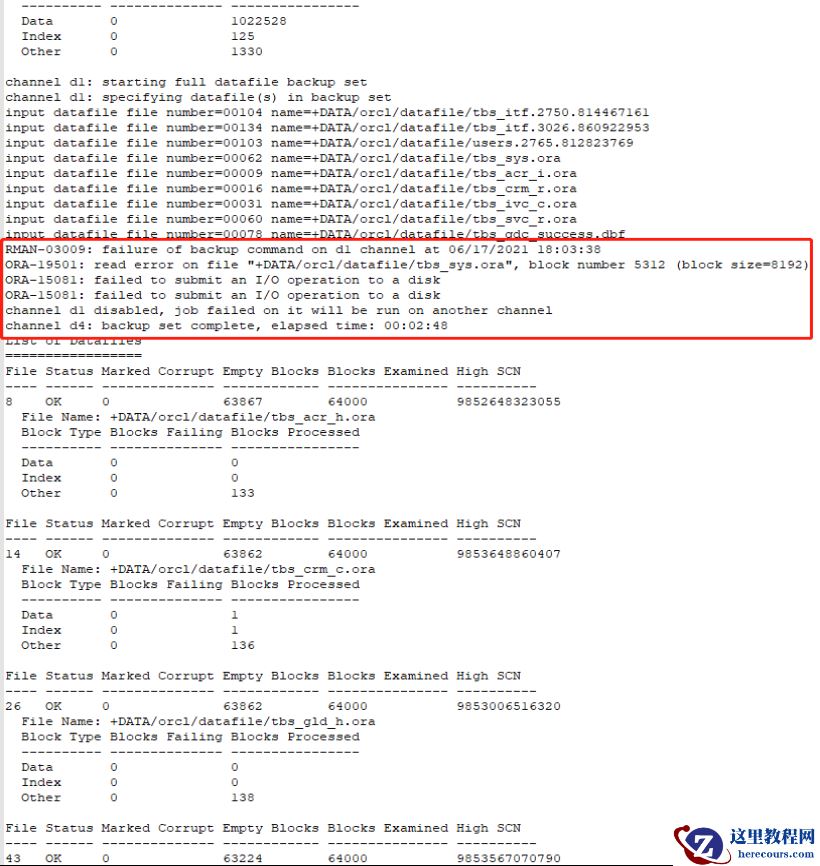

2 .3 R MN 校验数据库坏块

RMAN> run { allocate channel d1 type disk; allocate channel d2 type disk; allocate channel d3 type disk; allocate channel d4 type disk; backup validate check logical database; release channel d1; release channel d2; release channel d3; release channel d4; }

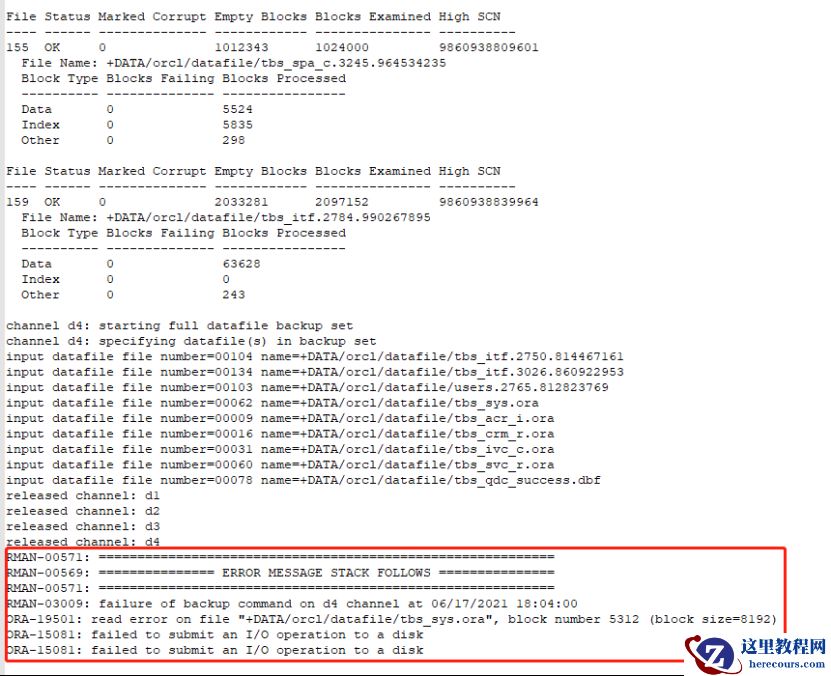

当使用 R MAN 校验到 6 2 号数据文件 t bs _ sys.ora 时报错，自动退出。 S QL> select * from g v$database_block_corrutption ； no rows selected

查询数据库坏块视图，没有返回数据库中坏块的信息。

2 .4 使用 exp 尝试导出表数据

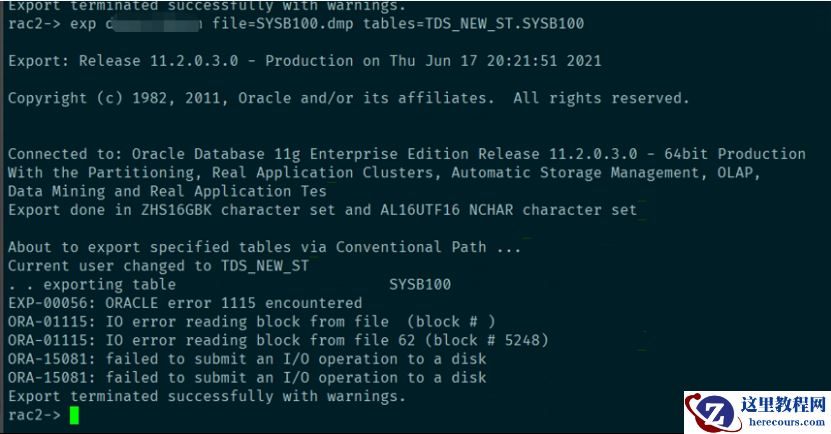

使用 exp 导出 XXXX100 表，在查询到 6 2 号文件的 5 248 号块时报错，导出失败。

2 .5 RMAN 备份修复坏块

RMAN> blockrecover datafile 6 2 block 5248 ; -- 单块修复 RMAN> blockrecover corruption list; -- 对视图中所有坏块修复 sys@ORCL> select count(*) from XXXXXX_ST.XXXX100; select count(*) from XXXXXX_ST.XXXX100 * ERROR at line 1: ORA-01115: IO error reading block from file (block # ) ORA-01115: IO error reading block from file 62 (block # 5248) ORA-15081: failed to submit an I/O operation to a disk ORA-15081: failed to submit an I/O operation to a disk 再次查询 XXXX100 表在访问 5 248 号块时，报 I O error 。

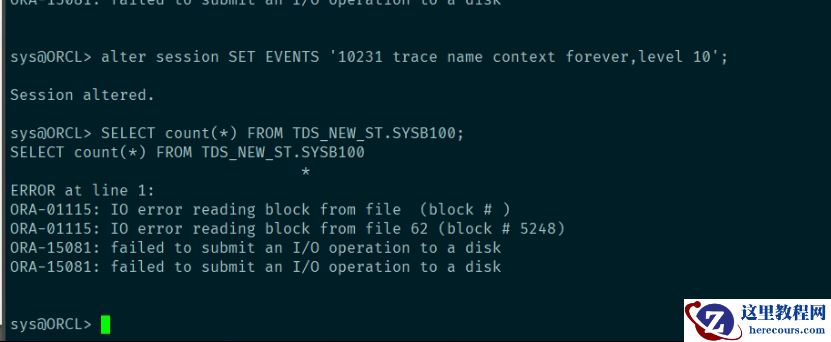

2 .6 设置 1 0231 事件跳过坏块

SQL>alter system SET EVENTS '10231 trace name context forever,level 10'; 设置 1 0231 事件后，查询 XXXX100 表，仍然报数据块损坏，无法查询。

2 .7 使用 dbms 包标记坏块

sys@ORCL> begin dbms_repair.skip_corrupt_blocks( schema_name=>'XXXXXX_ST', object_name=>'XXXX100', object_type=>dbms_repair.table_object, flags=>dbms_repair.skip_flag); end; / 2 3 4 5 6 7 8 PL/SQL procedure successfully completed.

sys@ORCL> select count(*) from XXXXXX_ST.XXXX100; select count(*) from XXXXXX_ST.XXXX100 * ERROR at line 1: ORA-01115: IO error reading block from file (block # ) ORA-01115: IO error reading block from file 62 (block # 5248) ORA-15081: failed to submit an I/O operation to a disk ORA-15081: failed to submit an I/O operation to a disk sys@ORCL> exec dbms_repair.skip_corrupt_blocks(schema_name => 'XXXXXX_ST',object_name => 'XXXX100',flags => 1); PL/SQL procedure successfully completed. sys@ORCL> sys@ORCL> select count(*) from XXXXXX_ST.XXXX100; select count(*) from XXXXXX_ST.XXXX100 * ERROR at line 1: ORA-01115: IO error reading block from file (block # ) ORA-01115: IO error reading block from file 62 (block # 5248) ORA-15081: failed to submit an I/O operation to a disk ORA-15081: failed to submit an I/O operation to a disk 从结果上来看，使用 dbms 包标记的方法也无法正常跳过坏块，查询出来数据。

2 .8 基于 rowid 抽取数据

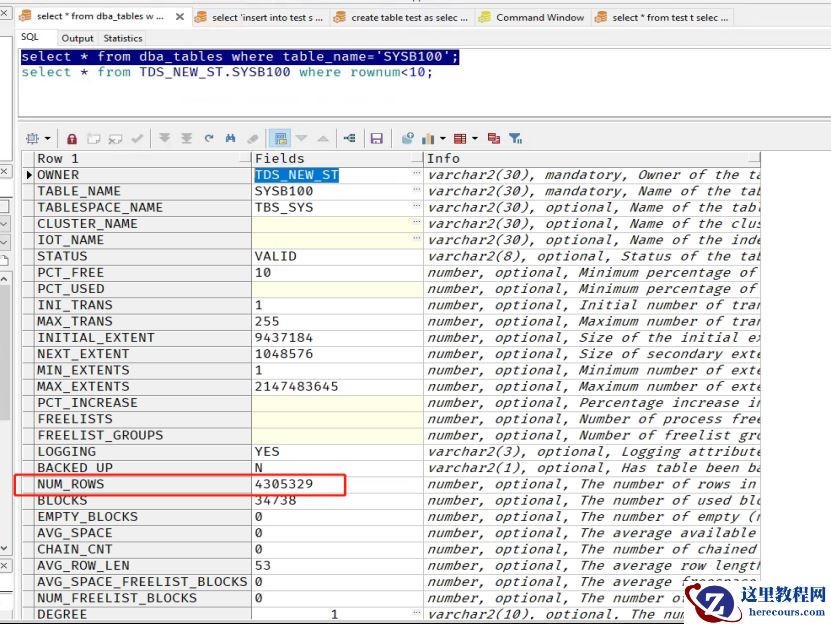

2 .8.1 查看表属性

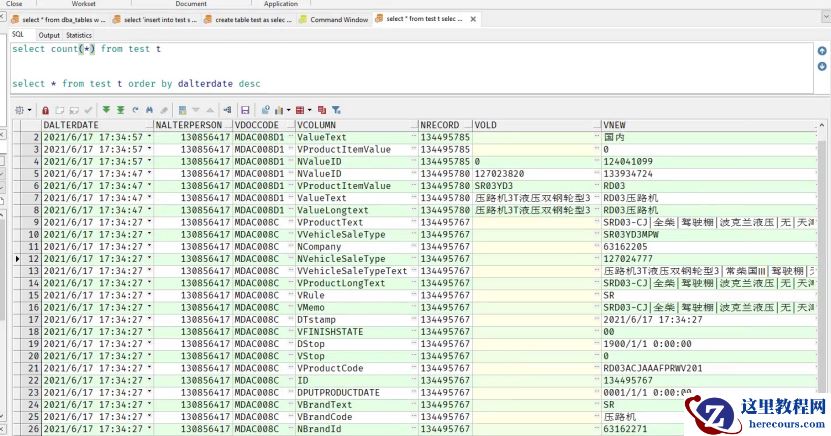

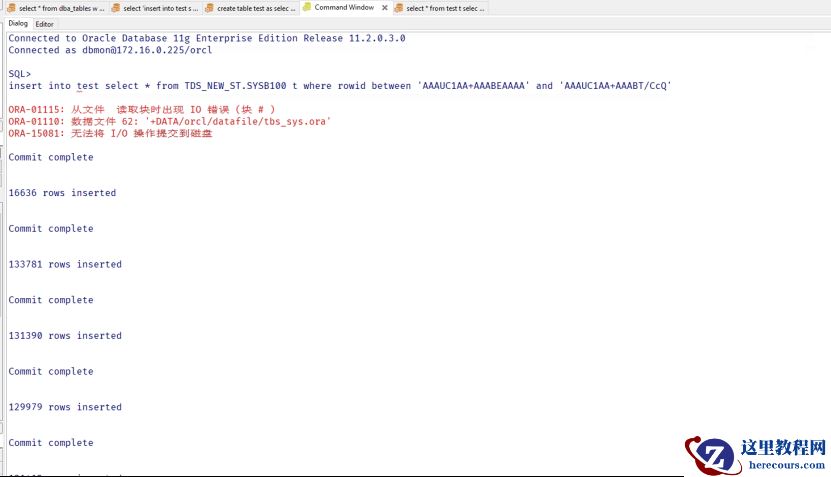

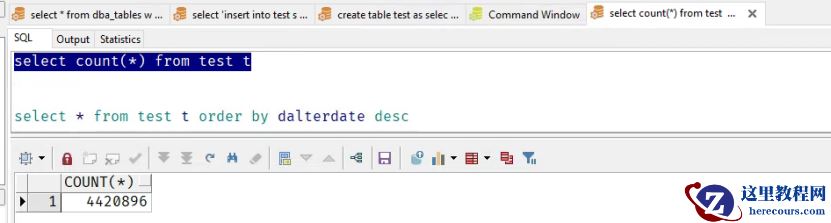

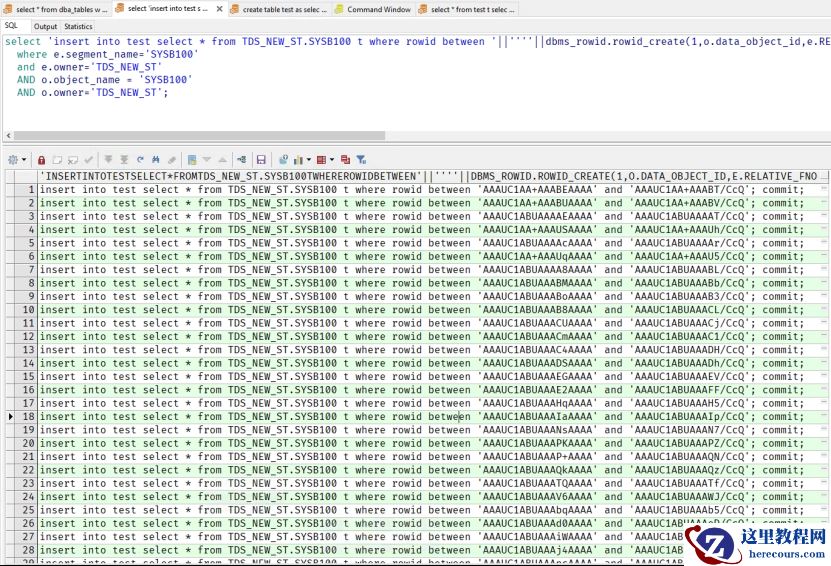

2 .8.2 基于块 rowid 生成插入语句

-- 基于 rowid 抽取坏块数据 select 'insert into test select * from XXXXXX_ST.XXXX100 t where rowid between ' || '''' || dbms_rowid.rowid_create(1, o.data_object_id, e.RELATIVE_FNO, e.BLOCK_ID, 0) || '''' || ' and ' || '''' || DBMS_ROWID.ROWID_CREATE(1, o.data_object_id, e.RELATIVE_FNO, e.BLOCK_ID + e.BLOCKS - 1, 10000) || '''' || ';' || CHR(10) || 'commit;' from dba_extents e, dba_objects o where e.segment_name = 'XXXX100' and e.owner = 'XXXXXX_ST' AND o.object_name = 'XXXX100' AND o.owner = 'XXXXXX_ST';
