Oracle 12c nocdb转换成cdb

来源：这里教程网时间：2026-03-03 14:50:25 作者：

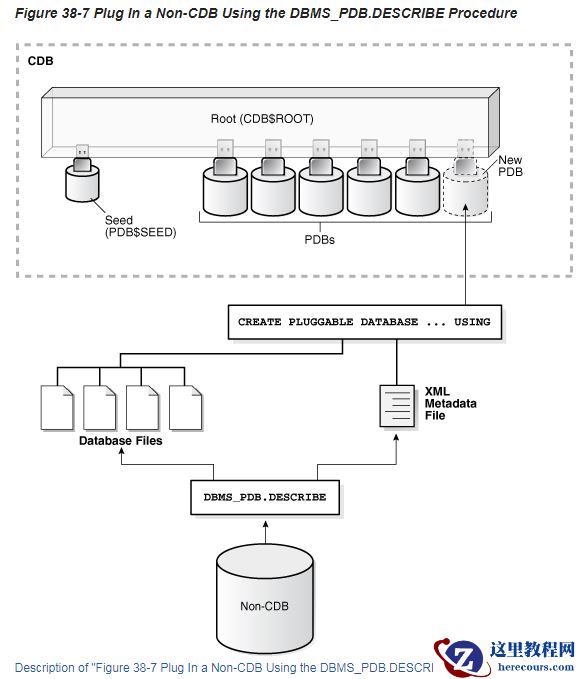

Oracle 12c nocdb 转换成cdb 环境说明：OS:Oracle Linux Server release 6.3DB:Oracle 12.2.0.1.0DBName:dapuchai 场景：Oracle 11.2.0.4.0 升级到Oracle 12.2.0.1.0 ，默认是no-cdb 模式，升级后根据需要将no-cdb 转换成cdb 里，即将之前的11.2.0.4.0 数据完全迁移到PDB(Creating a PDB Using a Non-CDB) ； 实施方案： 一： 连接non-CDB(dapuchai) ，生成XML 格式数据库描述文件 二：DBCA 新建cdb 数据库(cjcdb) 三： Plug in the non-CDB (cjcpdb) 四：执行 noncdb_to_pdb.sql 五：验证数据 参考： https://docs.oracle.com/database/121/ADMIN/cdb_plug.htm#ADMIN13598 一：连接 non-CDB(dapuchai) ，生成 XML 格式数据库描述文件 Connect to the non-CDB, and run the


DBMS_PDB.DESCRIBE

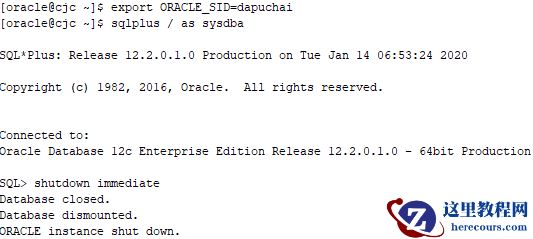

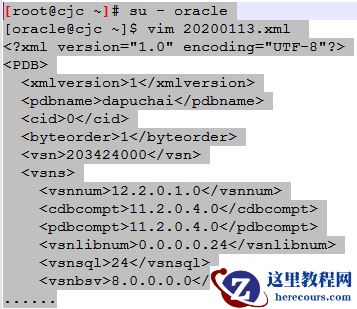

procedure to construct an XML file that describes the non-CDB. [root@cjc ~]# ps -ef|grep pmon oracle 2677 1 0 22:35 ? 00:00:00 ora_pmon_dapuchai root 3057 2634 0 22:37 pts/1 00:00:00 grep pmon SQL> select name,cdb from v$database;NAME CDB--------- --- DAPUCHAI NO SQL> show pdbs SQL> show con_idCON_ID------------------------------0 SQL> shutdown immediate ---只读方式打开dapuchai数据库 SQL> startup open read only; SQL> select name,open_mode,cdb from v$database;NAME OPEN_MODE CDB--------- -------------------- ---DAPUCHAI READ ONLY NO ---生成xml 格式的数据库描述文件SQL> BEGIN DBMS_PDB.DESCRIBE(pdb_descr_file => '/home/oracle/20200113.xml');END; 2 3 4 /PL/SQL procedure successfully completed.

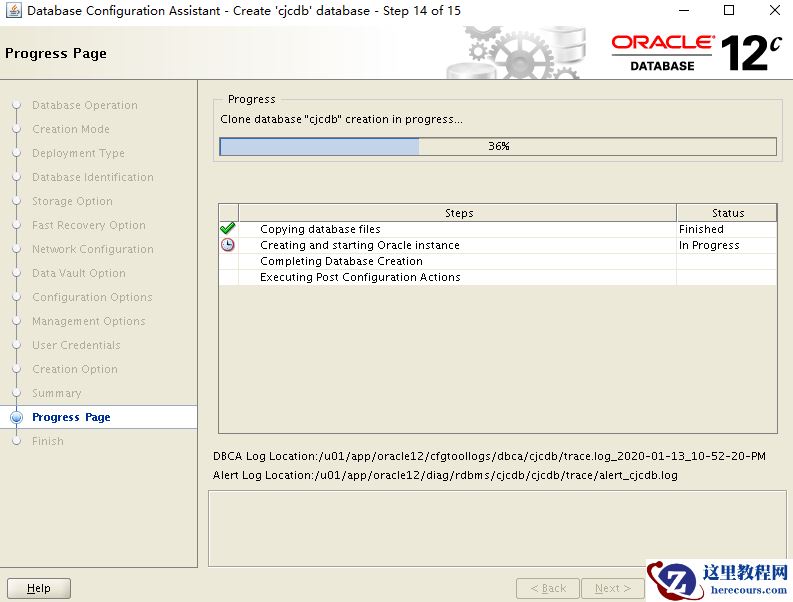

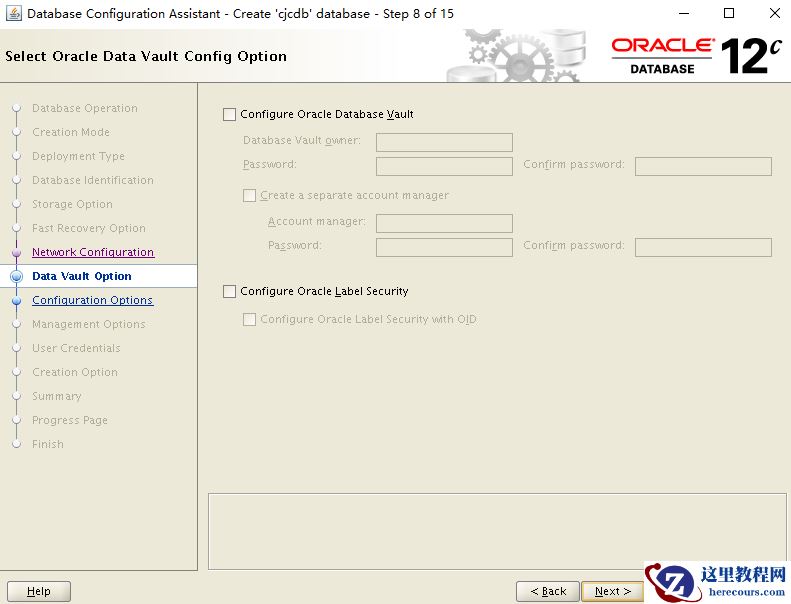

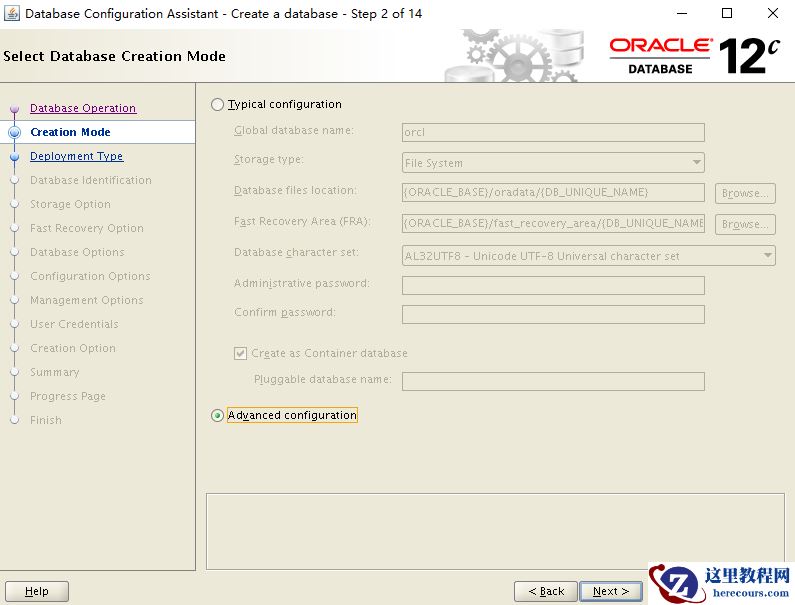

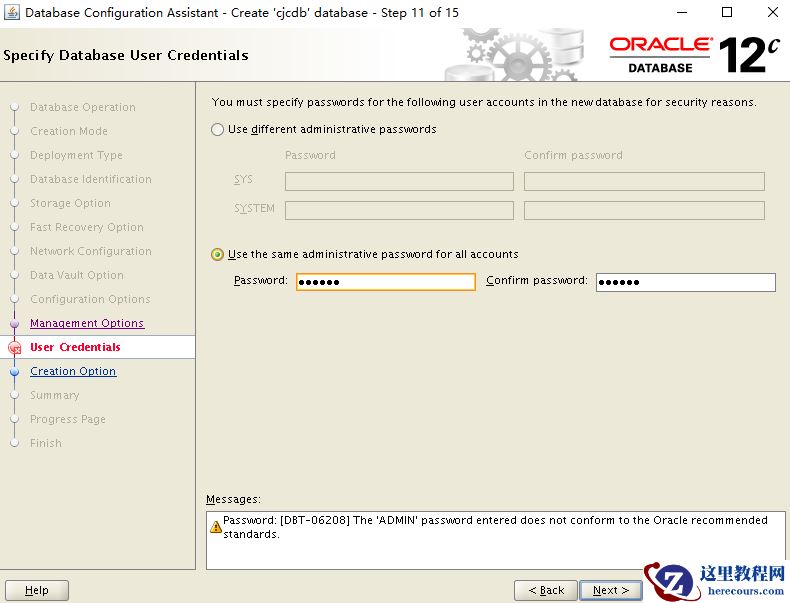

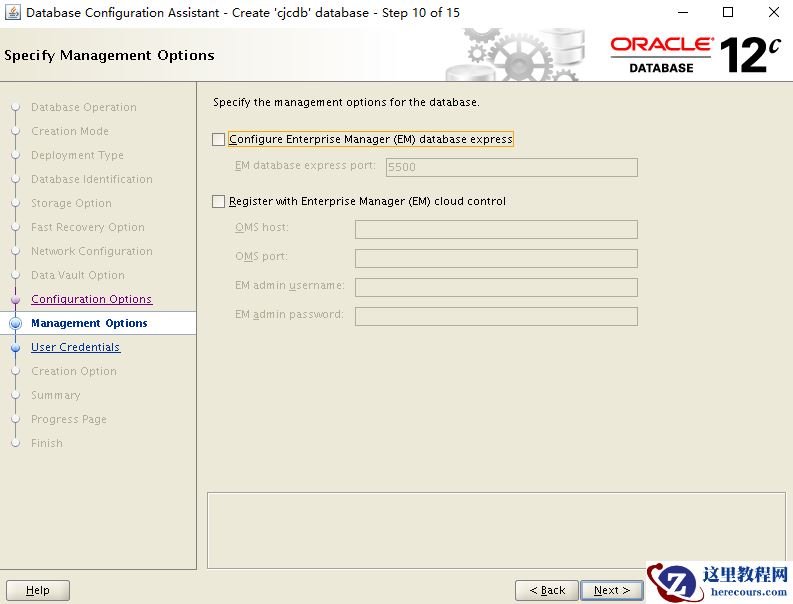

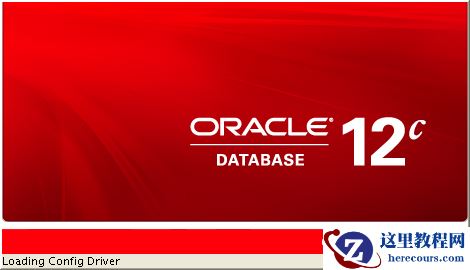

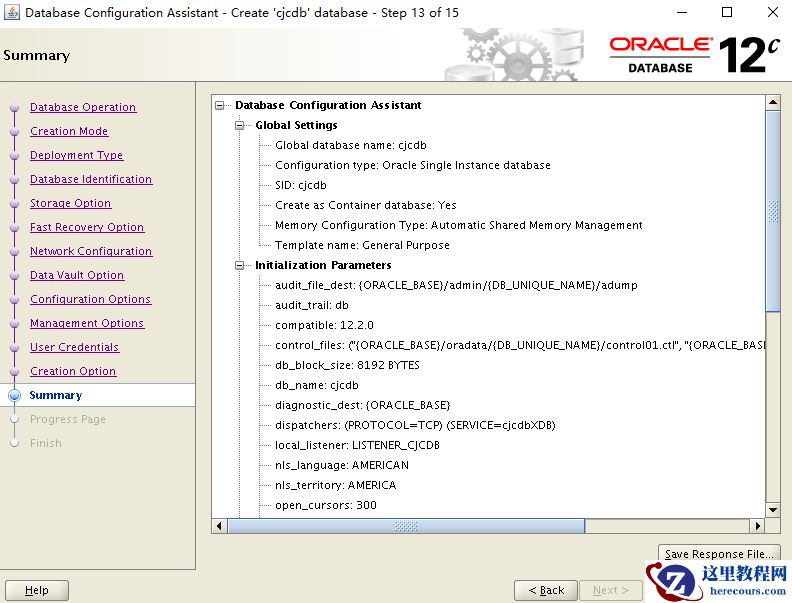

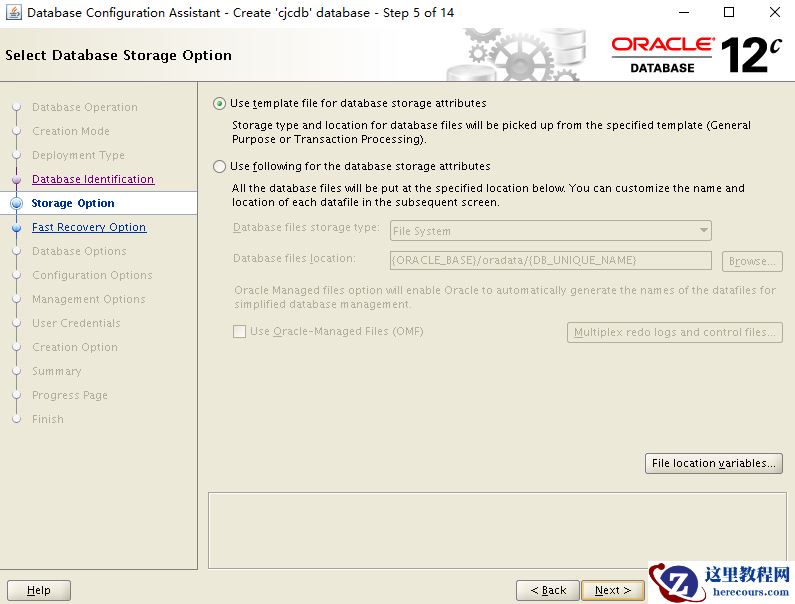

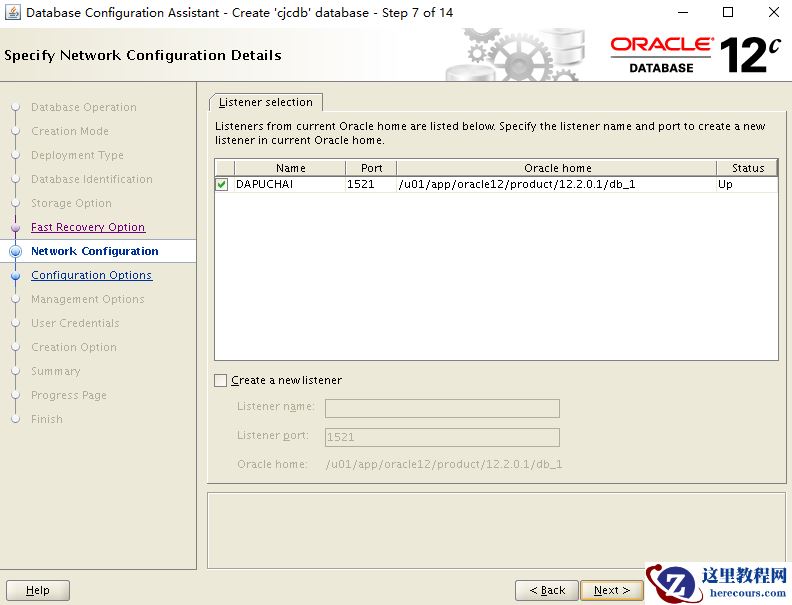

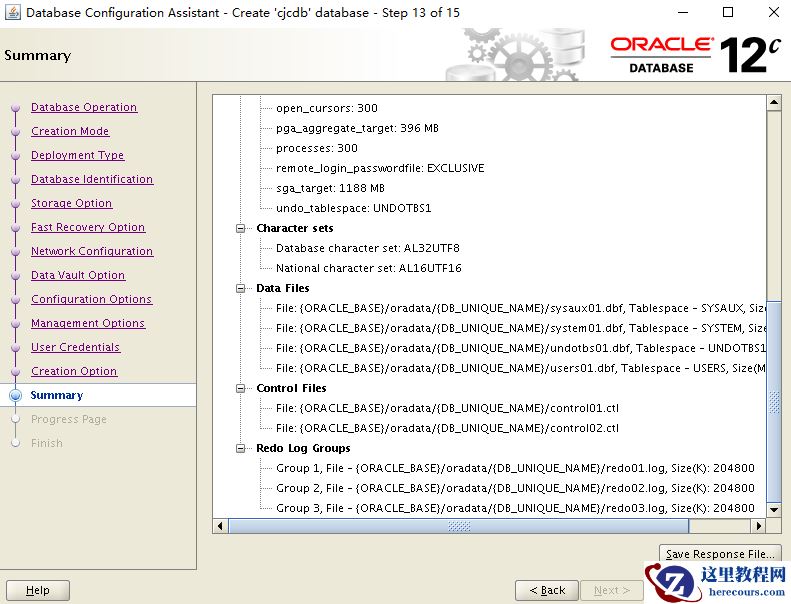

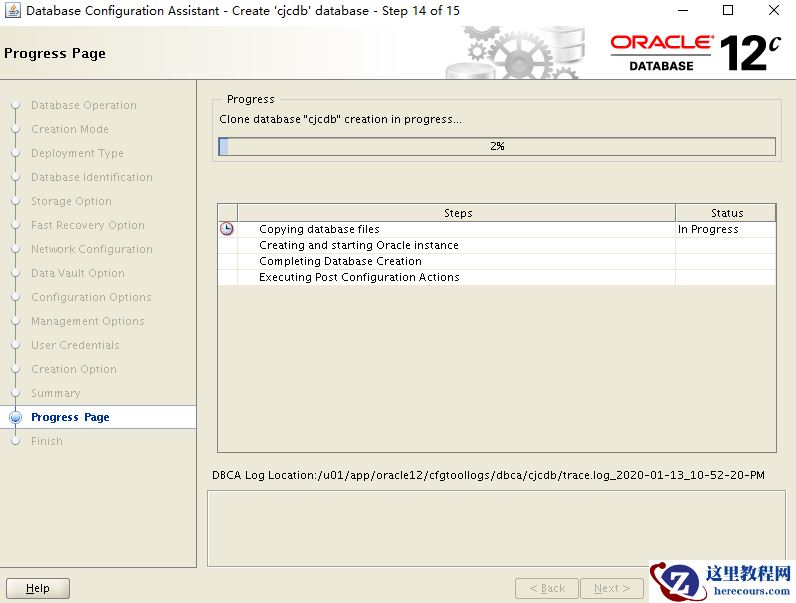

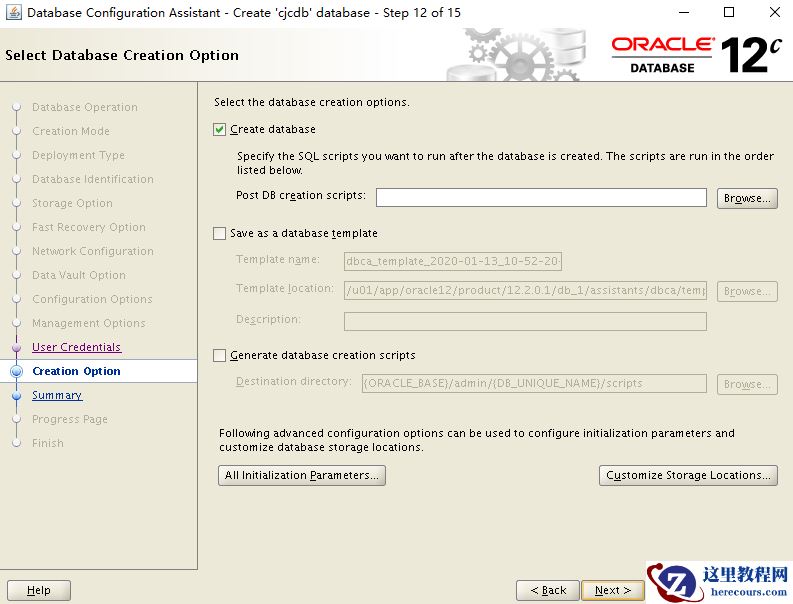

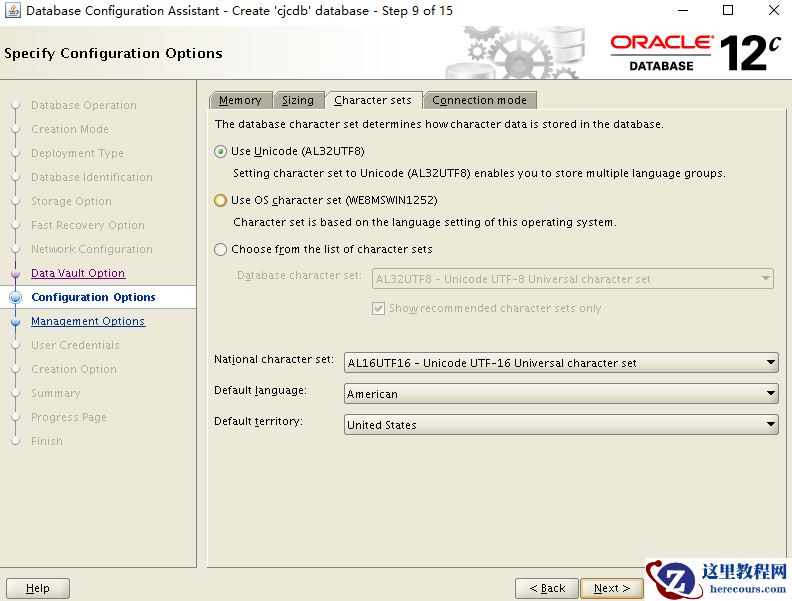

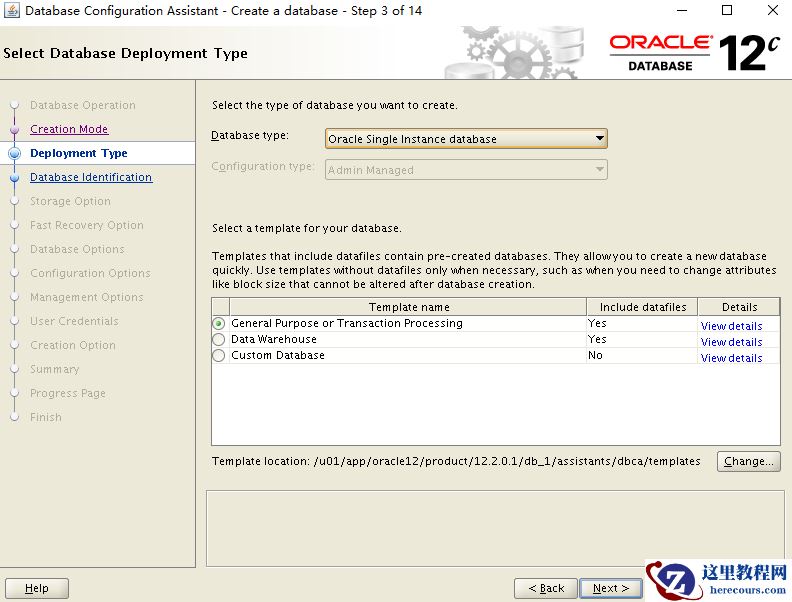

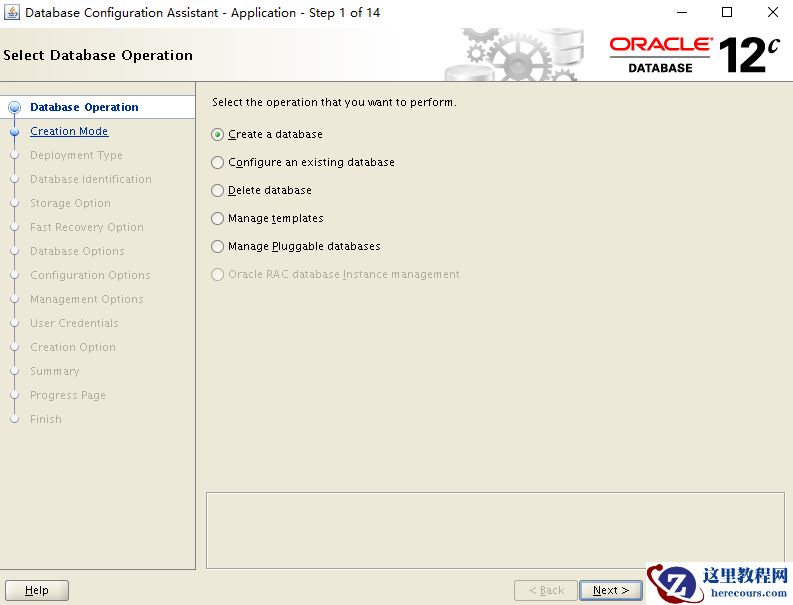

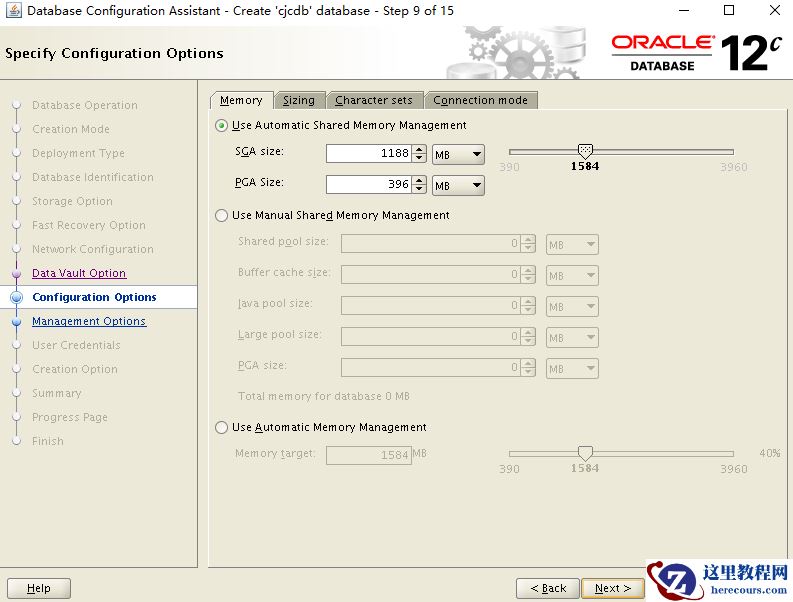

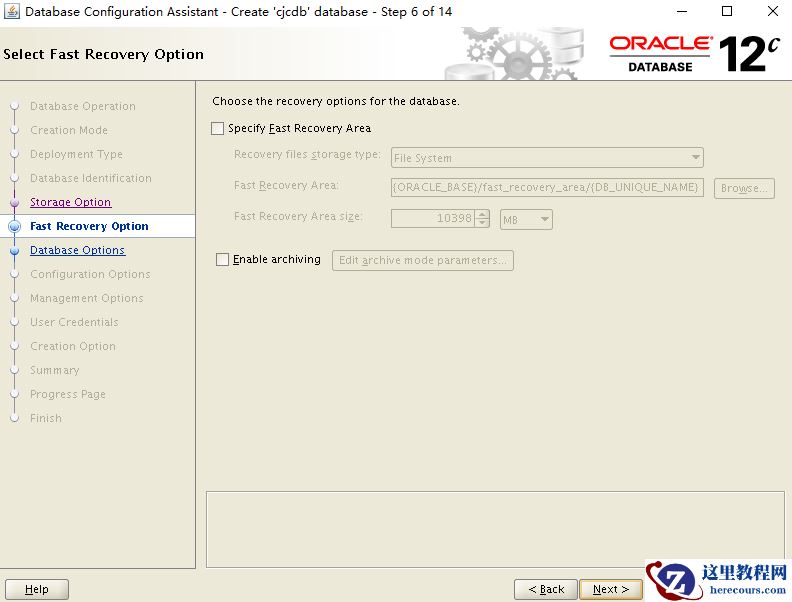

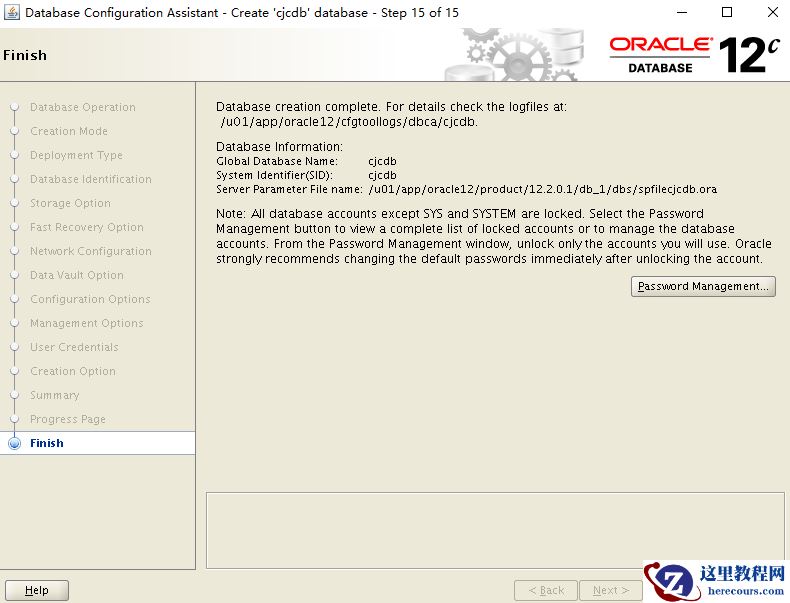

二： DBCA 新建 cdb 数据库 (cjcdb) [oracle@cjc ~]$ dbca

三： Plug in the non-CDB (cjcpdb) [oracle@cjc oracle12]$ ps -ef|grep pmon oracle 3106 1 0 22:38 ? 00:00:00 ora_pmon_dapuchai oracle 4326 1 0 23:05 ? 00:00:00 ora_pmon_cjcdb oracle 5651 3249 0 23:16 pts/1 00:00:00 grep pmon [oracle@cjc ~]$ export ORACLE_SID=cjcdb [oracle@cjc ~]$ sqlplus / as sysdba SQL*Plus: Release 12.2.0.1.0 Production on Mon Jan 13 23:18:52 2020 Copyright (c) 1982, 2016, Oracle. All rights reserved. Connected to: Oracle Database 12c Enterprise Edition Release 12.2.0.1.0 - 64bit Production SQL> show pdbs CON_ID CON_NAME OPEN MODE RESTRICTED ---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO SQL> select name,open_mode,cdb from v$database; NAME OPEN_MODE CDB --------- -------------------- --- CJCDB READ WRITE YES [oracle@cjc oradata]$ mkdir cjcpdb [oracle@cjc oradata]$ cd cjcpdb/ [oracle@cjc cjcpdb]$ pwd /u01/app/oracle12/oradata/cjcpdb SQL> select name from v$dbfile; NAME -------------------------------------------------------------------------------- /u01/app/oracle12/oradata/cjcdb/users01.dbf /u01/app/oracle12/oradata/cjcdb/undotbs01.dbf /u01/app/oracle12/oradata/cjcdb/system01.dbf /u01/app/oracle12/oradata/cjcdb/sysaux01.dbf /u01/app/oracle12/oradata/cjcdb/pdbseed/system01.dbf /u01/app/oracle12/oradata/cjcdb/pdbseed/sysaux01.dbf /u01/app/oracle12/oradata/cjcdb/pdbseed/undotbs01.dbf 7 rows selected. SQL> create pluggable database cjcpdb using '/home/oracle/20200113.xml' copy FILE_NAME_CONVERT = ('/u01/app/oracle/oradata/dapuchai/', '/u01/app/oracle12/oradata/cjcpdb/'); Pluggable database created. ---数据文件迁移完成 [oracle@cjc cjcpdb]$ pwd /u01/app/oracle12/oradata/cjcpdb [oracle@cjc cjcpdb]$ ll -rth total 2.5G -rw-r----- 1 oracle oinstall 58M Jan 13 23:26 temp01.dbf -rw-r----- 1 oracle oinstall 11M Jan 13 23:26 ogg_temtbs01.dbf -rw-r----- 1 oracle oinstall 11M Jan 13 23:26 ogg_tbs01.dbf -rw-r----- 1 oracle oinstall 11M Jan 13 23:26 cjc_tbs01a.dbf -rw-r----- 1 oracle oinstall 16M Jan 13 23:26 users01.dbf -rw-r----- 1 oracle oinstall 446M Jan 13 23:26 undotbs01.dbf -rw-r----- 1 oracle oinstall 1.2G Jan 13 23:26 system01.dbf -rw-r----- 1 oracle oinstall 881M Jan 13 23:26 sysaux01.dbf SQL> show pdbs CON_ID CON_NAME OPEN MODE RESTRICTED ---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 CJCPDB MOUNTED 四：执行 noncdb_to_pdb.sql 虚拟机内存只分配4G ，并且是机械硬盘，脚本执行了1 小时；切换到PDB 并执行脚本 SQL> alter session set container=cjcpdb; SQL> @?/rdbms/admin/noncdb_to_pdb.sql......

......

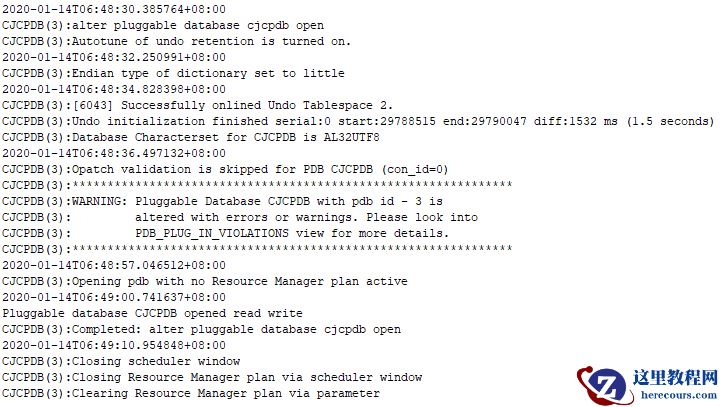

---启动pdbSQL> show pdbs CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 3 CJCPDB MOUNTED SQL> alter pluggable database cjcpdb open;Pluggable database altered. 告警日志查看pdb 启动过程；

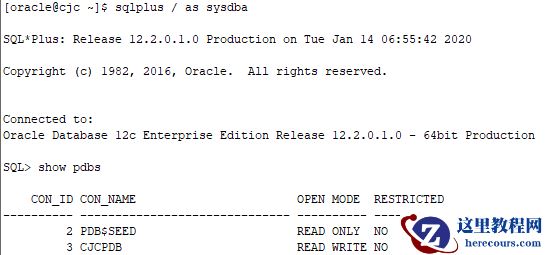

五：验证数据[oracle@cjc ~]$ cd /u01/app/oracle12/product/12.2.0.1/db_1/network/admin/[oracle@cjc admin]$ vi tnsnames.ora ...... CJCPDB = (DESCRIPTION = (ADDRESS = (PROTOCOL = TCP)(HOST = cjc)(PORT = 1521)) (CONNECT_DATA = (SERVER = DEDICATED) (SERVICE_NAME = CJCPDB) ) )

---修改环境变量，指定cdb 实例 [oracle@cjc ~]$ vi .bash_profile ...... #export ORACLE_SID=dapuchai export ORACLE_SID=cjcdb ...... [oracle@cjc ~]$ source .bash_profile
