Oracle
创建PDB-
远程克隆

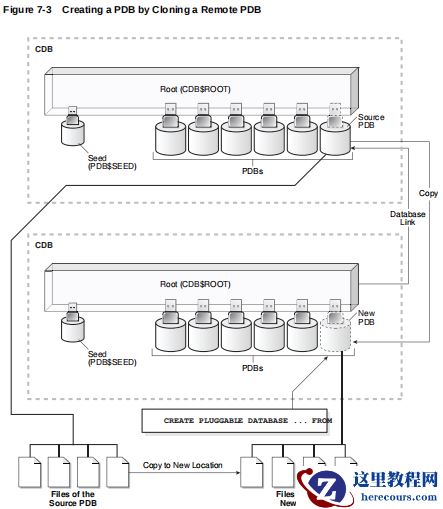

二：远程克隆Cloning a Remote PDB
远程克隆
将187服务器上chenpdb数据库远程克隆到222服务器上cjcpdb04库
---187 远程库
Oracle Database 19 c Enterprise Edition Release 19.0 .0.0.0 - Production
Version 19.3 .0.0.0
SQL > show pdbs
CON_ID CON_NAME OPEN MODE RESTRICTED
---------- ------------------------------ ---------- ----------
2 PDB$SEED READ ONLY NO
3 CHENPDB READ WRITE NO
--- 创建测试数据
SQL > alter session set container = chenpdb ;
Session altered.
SQL > create user chen identified by oracle ;
User created.
SQL > grant connect , resource , dba , create pluggable to chen ;
SQL > grant create pluggable to chen ;
Grant succeeded.
SQL > conn chen / oracle @ chenpdb
SQL > create table employees_01 as select * from hr.employees ;
Table created.
SQL > select file_name from dba_data_files ;
FILE_NAME
--------------------------------------------------------------------------------
/ u01 / app / oracle19 / oradata / CHENDB / chenpdb / system01.dbf
/ u01 / app / oracle19 / oradata / CHENDB / chenpdb / sysaux01.dbf
/ u01 / app / oracle19 / oradata / CHENDB / chenpdb / undotbs01.dbf
/ u01 / app / oracle19 / oradata / CHENDB / chenpdb / users01.dbf
--- 为了保障数据一致性，也可以将待克隆的数据库设置为只读状态
---SQL> alter pluggable database chenpdb close;
---SQL> alter pluggable database chenpdb open read only;
---222 本地库
---tnsname.ora 添加
CHENPDB_LINK =
( DESCRIPTION =
( ADDRESS = ( PROTOCOL = TCP )( HOST = 192.168 .2.187 )( PORT = 1521 ))
( CONNECT_DATA =
( SERVER = DEDICATED )
( SERVICE_NAME = chenpdb )
)
)
CJCPDB04 =
( DESCRIPTION =
( ADDRESS = ( PROTOCOL = TCP )( HOST = cjcos )( PORT = 1521 ))
( CONNECT_DATA =
( SERVER = DEDICATED )
( SERVICE_NAME = cjcpdb04 )
)
)
[oracle @ cjcos oradata]$ pwd
/ u01 / app / oracle12 / oradata
[oracle @ cjcos oradata]$ mkdir cjcpdb04
--- 创建连接远程库的dblink
SQL > CREATE DATABASE LINK chenpdb_link CONNECT TO chen IDENTIFIED BY oracle USING 'chenpdb_link' ;
---远程克隆
SQL >
CREATE PLUGGABLE DATABASE cjcpdb04 FROM chenpdb @ chenpdb_link
FILE_NAME_CONVERT = ( '/u01/app/oracle19/oradata/CHENDB/chenpdb/' ,
'/u01/app/oracle12/oradata/cjcpdb04/' );
Pluggable database created.
---查看对应告警日志
2020 - 03 - 30 T13 : 55 : 14.265860 + 08 : 00
CREATE PLUGGABLE DATABASE cjcpdb04 FROM chenpdb @ chenpdb_link
FILE_NAME_CONVERT = ( '/u01/app/oracle19/oradata/CHENDB/chenpdb/' ,
'/u01/app/oracle12/oradata/cjcpdb04/' )
2020 - 03 - 30 T13 : 56 : 03.124780 + 08 : 00
CJCPDB04 ( 6 ): Endian type of dictionary set to little
2020 - 03 - 30 T13 : 56 : 05.708201 + 08 : 00
****************************************************************
Pluggable Database CJCPDB04 with pdb id - 6 is created as UNUSABLE.
If any errors are encountered before the pdb is marked as NEW ,
then the pdb must be dropped
local undo - 1 , localundoscn - 0 x0000000000000118
****************************************************************
2020 - 03 - 30 T13 : 56 : 08.228640 + 08 : 00
Applying media recovery for pdb - 4099 from SCN 2162581 to SCN 2162616
Remote log information : count - 1
thr - 1 , seq - 7 , logfile -/ u01 / app / oracle19 / product / 19.0 .0 / dbhome_1 / dbs / archparlog_1_7_f2af50d_1036413577.arc , los - 2146891 , nxs - 18446744073709551615
CJCPDB04 ( 6 ): Media Recovery Start
2020 - 03 - 30 T13 : 56 : 08.253256 + 08 : 00
CJCPDB04 ( 6 ): Serial Media Recovery started
CJCPDB04 ( 6 ): max_pdb is 8
2020 - 03 - 30 T13 : 56 : 08.725328 + 08 : 00
CJCPDB04 ( 6 ): Media Recovery Log / u01 / app / oracle19 / product / 19.0 .0 / dbhome_1 / dbs / archparlog_1_7_f2af50d_1036413577.arc
2020 - 03 - 30 T13 : 56 : 10.008175 + 08 : 00
CJCPDB04 ( 6 ): Incomplete Recovery applied until change 2162616 time 03 / 30 / 2020 13 : 56 : 08
2020 - 03 - 30 T13 : 56 : 10.133184 + 08 : 00
CJCPDB04 ( 6 ): Media Recovery Complete ( cjcdb01 )
2020 - 03 - 30 T13 : 56 : 11.061364 + 08 : 00
CJCPDB04 ( 6 ): Autotune of undo retention is turned on.
2020 - 03 - 30 T13 : 56 : 51.439938 + 08 : 00
CJCPDB04 ( 6 ): Undo initialization recovery : err : 0 start : 1180295010 end : 1180295043 diff : 33 ms ( 0.0 seconds )
CJCPDB04 ( 6 ): [ 27424 ] Successfully onlined Undo Tablespace 2 .
CJCPDB04 ( 6 ): Undo initialization online undo segments : err : 0 start : 1180295043 end : 1180295053 diff : 10 ms ( 0.0 seconds )
CJCPDB04 ( 6 ): Undo initialization finished serial : 0 start : 1180295010 end : 1180295055 diff : 45 ms ( 0.0 seconds )
CJCPDB04 ( 6 ): Database Characterset for CJCPDB04 is AL32UTF8
CJCPDB04 ( 6 ): JIT : pid 27424 requesting stop
CJCPDB04 ( 6 ): Buffer Cache flush started : 6
CJCPDB04 ( 6 ): Buffer Cache flush finished : 6
2020 - 03 - 30 T13 : 56 : 53.986700 + 08 : 00
Completed : CREATE PLUGGABLE DATABASE cjcpdb04 FROM chenpdb @ chenpdb_link
FILE_NAME_CONVERT = ( '/u01/app/oracle19/oradata/CHENDB/chenpdb/' ,
'/u01/app/oracle12/oradata/cjcpdb04/' )
---222 本地数据库
SQL > show pdbs
CON_ID CON_NAME OPEN MODE RESTRICTED
---------- ------------------------------ ---------- ----------
2 PDB$SEED READ ONLY NO
3 CJCPDB01 MOUNTED
4 CJCPDB02 MOUNTED
5 CJCPDB03 MOUNTED
6 CJCPDB04 MOUNTED
SQL > alter session set container = cjcpdb04 ;
Session altered.
SQL > startup
Pluggable Database opened.
--- 查看数据
SQL > conn chen / oracle @ cjcpdb04
Connected.
SQL > select count (*) from employees_01 ;
COUNT (*)
----------
107
---常见 错误：
---1 权限不足
CREATE PLUGGABLE DATABASE cjcpdb04 FROM chenpdb @ chenpdb_link
*
ERROR at line 1 :
ORA - 17628 : Oracle error 1031 returned by remote Oracle server
ORA - 01031 : insufficient privileges
---187 远程数据库授予chen用户create pluggable database权限
SQL > conn sys / oracle @ chenpdb as sysdba
Connected.
SQL > grant create pluggable database to chen ;
Grant succeeded.
---2 本地数据库compatible低于远程数据库
ORA - 65294 : PDB 's compatible parameter value (19.0.0.0.0) is higher than CDB' s
compatible parameter value ( 12.2 .0.0.0 ) .
---222 本地数据库
SQL > show parameter compatible
NAME TYPE VALUE
------------------------------------ ----------- ------------------------------
compatible string 12.2 .0
noncdb_compatible boolean FALSE
---187 远程
SQL > show parameter compati
NAME TYPE VALUE
------------------------------------ ----------- ------------------------------
compatible string 19.0 .0
---222 本地数据库
SQL > alter system set compatible = '19.0.0' scope = spfile ;
System altered.
SQL > shutdown immediate
SQL > startup
SQL > show parameter compatible
NAME TYPE VALUE
------------------------------------ ----------- ------------------------------
compatible
string
19.0
.0
