Oracle 11g RAC + DG安装详解--05

来源：这里教程网时间：2026-03-03 16:05:03 作者：

八、安装DG

1. 安装DG 数据库软件

1.1 修改/etc/hosts

[root@localhost ~]# vi /etc/hosts

127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4

::1 localhost localhost.localdomain localhost6 localhost6.localdomain6

#public

192.168.1.15 TSTB

#public vip

192.168.1.16 TSTB-vip

#primary

192.168.1.1 TRAC1

192.168.1.3 TRAC1-vip

192.168.1.2 TRAC2

192.168.1.4 TRAC2-vip

192.168.1.5 TRAC TRAC.shdb.domain

1.2 修改hostname

[root@localhost ~]# vi /etc/sysconfig/network

NETWORKING=yes

HOSTNAME=TSTB

[root@localhost ~]# hostname TSTB

1.3 修改ip

双网卡绑定 1 vi /etc/modprobe.d/dist.confalias bond0 bondingoptions bond0 mode=1 miimon=50 2 vim /etc/sysconfig/network-scripts/ifcfg-em1 DEVICE=em1>

BOOTPROTO=noneTYPE=EthernetMASTER=bond0SLAVE=yesUSERCTL=no 3 vim /etc/sysconfig/network-scripts/ifcfg-em2DEVICE=em2>

BOOTPROTO=noneMASTER=bond0SLAVE=yesUSERCTL=no~ 4 vim /etc/sysconfig/network-scripts/ifcfg-bond0DEVICE=bond0>

BOOTPROTO=noneUSERCTL=noIPADDR=192.168.1.15NETMASK=255.255.255.0GATEWAY=192.168.1.255BONDING_OPTS="mode=1 miimon=50"IPV6INIT=no service NetworkManager stopchkconfig NetworkManager offchkconfig network onservice network restart [root@localhost network-scripts]# service network restart

[root@TSTB network-scripts]# vi ifcfg-bond0:1

#DNS1=114.114.114.114

DEFROUTE=yes

IPV4_FAILURE_FATAL=yes

DEVICE= bond0:1

TYPE=Ethernet

NM_CONTROLLED=yes

BOOTPROTO=none

HWADDR= 14:18:77:59:21:F0

IPADDR=192.168.1.16

PREFIX=24

GATEWAY=192.168.1.255

NETMASK=255.255.255.0

IPV6INIT=no

USERCTL=no

[root@TSTB network-scripts]# ifup ifcfg-bond0:1

[root@shdbstd network-scripts]# ip addr

1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN

link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00

inet 127.0.0.1/8 scope host lo

inet6 ::1/128 scope host

valid_lft forever preferred_lft forever

2: em1: <BROADCAST,MULTICAST,SLAVE,UP,LOWER_UP> mtu 1500 qdisc mq master bond0 state UP qlen 1000

link/ether 14:18:77:59:21:f0 brd ff:ff:ff:ff:ff:ff

3: em2: <BROADCAST,MULTICAST,SLAVE,UP,LOWER_UP> mtu 1500 qdisc mq master bond0 state UP qlen 1000

link/ether 14:18:77:59:21:f0 brd ff:ff:ff:ff:ff:ff

4: em3: <BROADCAST,MULTICAST> mtu 1500 qdisc mq state DOWN qlen 1000

link/ether 14:18:77:59:21:f2 brd ff:ff:ff:ff:ff:ff

5: em4: <BROADCAST,MULTICAST> mtu 1500 qdisc mq state DOWN qlen 1000

link/ether 14:18:77:59:21:f3 brd ff:ff:ff:ff:ff:ff

6: bond0: <BROADCAST,MULTICAST,MASTER,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP

link/ether 14:18:77:59:21:f0 brd ff:ff:ff:ff:ff:ff

inet 192.168.1.15/24 brd 192.168.1.255 scope global bond0

inet 192.168.1.16/24 brd 192.168.1.255 scope global secondary bond0:1

inet6 fe80::1618:77ff:fe59:21f0/64 scope link

valid_lft forever preferred_lft forever

1.4 磁盘配置

1) 多路径安装和配置

[root@shdbstd /]# cat /etc/multipath.conf

# This is a basic configuration file with some examples, for device mapper

# multipath.

# For a complete list of the default configuration values, see

# /usr/share/doc/device-mapper-multipath-0.4.9/multipath.conf.defaults

# For a list of configuration options with descriptions, see

# /usr/share/doc/device-mapper-multipath-0.4.9/multipath.conf.annotated

# REMEMBER: After updating multipath.conf, you must run

# service multipathd reload

# for the changes to take effect in multipathd

## By default, devices with vendor = "IBM" and product = "S/390.*" are

## blacklisted. To enable mulitpathing on these devies, uncomment the

## following lines.

#blacklist_exceptions {

# device {

# vendor "IBM"

# product "S/390.*"

# }

## Use user friendly names, instead of using WWIDs as names.

defaults {

user_friendly_names yes

}

## Here is an example of how to configure some standard options.

#defaults {

# udev_dir /dev

# polling_interval 10

# path_selector "round-robin 0"

# path_grouping_policy multibus

# getuid_callout "/lib/udev/scsi_id --whitelisted --device=/dev/%n"

# prio alua

# path_checker readsector0

# rr_min_io 100

# max_fds 8192

# rr_weight priorities

# failback immediate

# no_path_retry fail

# user_friendly_names yes

## The wwid line in the following blacklist section is shown as an example

## of how to blacklist devices by wwid. The 2 devnode lines are the

## compiled in default blacklist. If you want to blacklist entire types

## of devices, such as all scsi devices, you should use a devnode line.

## However, if you want to blacklist specific devices, you should use

## a wwid line. Since there is no guarantee that a specific device will

## not change names on reboot (from /dev/sda to /dev/sdb for example)

## devnode lines are not recommended for blacklisting specific devices.

#blacklist {

# wwid 26353900f02796769

# devnode "^(ram|raw|loop|fd|md|dm-|sr|scd|st)[0-9]*"

# devnode "^hd[a-z]"

#multipaths {

# multipath {

# wwid 3600508b4000156d700012000000b0000

# alias yellow

# path_grouping_policy multibus

# path_checker readsector0

# path_selector "round-robin 0"

# failback manual

# rr_weight priorities

# no_path_retry 5

# }

# multipath {

# wwid 1DEC_____321816758474

# alias red

# }

#devices {

# device {

# vendor "COMPAQ "

# product "HSV110 (C)COMPAQ"

# path_grouping_policy multibus

# getuid_callout "/lib/udev/scsi_id --whitelisted --device=/dev/%n"

# path_checker readsector0

# path_selector "round-robin 0"

# hardware_handler "0"

# failback 15

# rr_weight priorities

# no_path_retry queue

# }

# device {

# vendor "COMPAQ "

# product "MSA1000 "

# path_grouping_policy multibus

# }

multipaths {

multipath {

wwid 36000d31003817200000000000000000b

alias dgdata1

}

multipath {

wwid 36000d31003817200000000000000000c

alias dgdata2

}

multipath {

wwid 36000d31003817200000000000000000d

alias dgdata3

}

multipath {

wwid 36000d31003817200000000000000000e

alias dgdata4

}

multipath {

wwid 36000d31003817200000000000000000f

alias dgdata5

}

multipath {

wwid 36000d310038172000000000000000010

alias dgdata6

}

[root@shdbstd /]# service multipathd restart

Stopping multipathd daemon: [ OK ]

Starting multipathd daemon: [ OK ]

[root@shdbstd /]# multipath -ll

dgdata1 (36000d31003817200000000000000000b) dm-0 COMPELNT,Compellent Vol

size=2.0T features='1 queue_if_no_path' hwhandler='0' wp=rw

`-+- policy='round-robin 0' prio=1 status=active

|- 0:0:14:1 sdb 8:16 active ready running

`- 2:0:1:1 sdc 8:32 active ready running

[root@shdbstd /]#

2) LVM 配置

[root@TSTB ~]# parted /dev/mapper/dgdata1 mklabel gpt(parted) mkpart primary 0% 100%(parted) print Model: Linux device-mapper (multipath) (dm)Disk /dev/mapper/dgdata1: 2199GBSector size (logical/physical): 512B/4096BPartition Table: gpt Number Start End Size File system Name Flags 1 17.4kB 2199GB 2199GB primary [root@shdbstd /]# pvcreate /dev/mapper/dgdata1p1[root@shdbstd /]# vgcreate voldg /dev/mapper/dgdata1p1[root@shdbstd /]# lvcreate -l +524286 -n data voldg[root@shdbstd /]# mkfs.ext4 /dev/mapper/voldg-data[root@shdbstd /]# lvdisplay --- Logical volume --- LV Path /dev/voldg/data LV Name data VG Name voldg LV UUID JE1Eif-8qfu-LzR4-nn7w-bqfT-LCsG-4RKk4s LV Write Access read/write LV Creation host, time shdbstd, 2017-07-05 15:46:08 +0800 LV Status available # open 1 LV Size 2.00 TiB Current LE 524286 Segments 1 Allocation inherit Read ahead sectors auto - currently set to 256 Block device 253:2 parted /dev/mapper/dgdata2 mklabel gpr mkpart primary 0 100%parted /dev/mapper/dgdata2 mklabel gpt mkpart primary 0 100%parted /dev/mapper/dgdata3 mklabel gpt mkpart primary 0 100%parted /dev/mapper/dgdata4 mklabel gpt mkpart primary 0 100%parted /dev/mapper/dgdata5 mklabel gpt mkpart primary 0 100%parted /dev/mapper/dgdata6 mklabel gpt mkpart primary 0 100% pvcreate /dev/mapper/dgdata2p1pvcreate /dev/mapper/dgdata3p1pvcreate /dev/mapper/dgdata4p1pvcreate /dev/mapper/dgdata5p1pvcreate /dev/mapper/dgdata6p1 vgextend voldg /dev/mapper/dgdata2p1vgextend voldg /dev/mapper/dgdata3p1vgextend voldg /dev/mapper/dgdata4p1vgextend voldg /dev/mapper/dgdata5p1vgextend voldg /dev/mapper/dgdata6p1 lvextend -l +2621430 /dev/voldg/data

3) 修改/etc/fstab

添加lvm 挂载/dev/mapper/voldg-data /oradata ext4 defaults 0 0 执行下面的命令让挂载生效[root@shdbstd /]# mount -a

4) 添加磁盘

扫描磁盘for i in `ls /sys/class/scsi_host/`; do echo "- - -" >> /sys/class/scsi_host/$i/scan ; done 扫描磁盘wwidscsi_id --whitelisted --replace-whitespace /dev/sd* 添加多路径配置/etc/multipath.confmultipaths { multipath { wwid 36000d31003817200000000000000000b alias dgdata1 } multipath { wwid 36000d31003817200000000000xxxxxxxx alias dgdatax }} 重启多路径[root@shdbstd /]# service multipathd restartokStopping multipathd daemon: [ OK ]Starting multipathd daemon: [ OK ]

5) 扩展lvm

parted 对新磁盘做分区，例如parted /dev/mapper/dgdatax mklabel gpt mkpart primary 0 100%pvcreate /dev/mapper/dgdataxp1vgextend voldg /dev/mapper/dgdataxp1vgdisplay 查看free PE 大小lvextend -l +xxxxx /dev/voldg/data （xxxxxx 为上面查到的free PE 大小）resize2fs /dev/mapper/voldg-dgdatadf -h 验证目录大小

1.5 安装DG 数据库软件

1. ---- 关闭系统的防火墙

chkconfig iptables off （永久生效）

（service iptables stop ）（临时生效）

--- 关闭selunix 服务

vi /etc/selinux/config

SELINUX=disabled

2. 修改内核参数

cp /etc/sysctl.conf /etc/sysctl.conf.bak

vi /etc/sysctl.conf 末尾

# 注释掉kernel.shmmax 和kernel.shmall 两行

kernel.shmall = 11111 ( 单位：字节物理内存/4096)

kernel.shmmax = 11111 （单位：字节物理内存-1 ）

添加：

fs.aio-max-nr = 1048576

fs.file-max = 6815744

kernel.shmmax = 135221043199

kernel.shmmni = 4096

kernel.shmall = 33012950

kernel.sem = 250 32000 100 128

net.ipv4.ip_local_port_range = 9000 65500

net.core.rmem_default = 262144

net.core.rmem_max = 4194304

net.core.wmem_default = 262144

net.core.wmem_max = 1048576

以上参数为使用oracle yum 自动配置的参数

重新加载生效：

[root@TRAC1 ~]# sysctl -p

3. 安装必要的包

两节点分别执行如下三步：

① 配置yum

[root@TRAC1 grid]# cd /etc/yum.repos.d/

[root@TRAC1 yum.repos.d]# cp CentOS-Base.repo CentOS-Base.repo.bak

[root@TRAC1 yum.repos.d]# vi /etc/yum.repos.d/CentOS-Base.repo

[base]

name=CentOS-$releasever - Base

baseurl=http://192.168.1.10 （YUM 源）/centos6.9

enabled=1

gpgcheck=0

gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-6

[root@TRAC1 yum.repos.d]# yum clean all

Loaded plugins: fastestmirror, refresh-packagekit, security

Cleaning repos: base

Cleaning up Everything

Cleaning up list of fastest mirrors

[root@TRAC1 yum.repos.d]# yum makecache

Loaded plugins: fastestmirror, refresh-packagekit, security

Determining fastest mirrors

Metadata Cache Created

…….

[root@TRAC1 yum.repos.d]#

② 检查哪些包没安装

for i in binutils compat-gcc-34 compat-libstdc++-296 control-center \

gcc gcc-c++ glibc glibc-common glibc-devel libaio libgcc elfutils-libelf-devel \

libstdc++ libstdc++-devel libXp make openmotif22 setarch \

compat-libstdc++-33 libaio-devel sysstat unixODBC unixODBC-devel \

compat-libcap1 ksh tigervnc-server

rpm -q $i &>/dev/null || F="$F $i"

done ;echo $F;unset F

③ 使用yum 安装这些包

[root@TRAC1 yum.repos.d]# yum install -y compat-gcc-34 compat-libstdc++-296 gcc gcc-c++ elfutils-libelf-devel libstdc++-devel libXp openmotif22 setarch compat-libstdc++-33 libaio-devel unixODBC unixODBC-devel compat-libcap1 ksh tigervnc-server

4. 修改oracle 用户限制

cp /etc/security/limits.conf /etc/security/limits.conf.bak

vi /etc/security/limits.conf 末尾添加：

oracle soft nofile 2047

oracle hard nofile 65536

oracle soft nproc 2047

oracle hard nproc 16384

oracle soft stack 10240

oracle hard stack 32768

5. 修改/etc/pam.d/login

cp /etc/pam.d/login /etc/pam.d/login.bak

vi /etc/pam.d/login 末尾添加：

session required /lib64/security/pam_limits.so

6. 更改安装所有者的 ulimit 设置

vi /etc/profile 末尾添加：

if [ /$USER = "oracle" ] ; then

if [ /$SHELL = "/bin/ksh" ]; then

ulimit -p 16384

ulimit -n 65536

else

ulimit -u 16384 -n 65536

umask 022

7. 建立必要的组和用户

[root@ ~]#

groupadd -g 501 oinstall

groupadd -g 502 dba

groupadd -g 503 oper

groupadd -g 504 asmadmin

groupadd -g 505 asmdba

groupadd -g 506 asmoper

useradd -u 501 -g oinstall -G dba,oper,asmdba oracle

echo "123456"|passwd --stdin oracle

8. 建立安装目录

[root@ ~]#

chown -R oracle:oinstall /home/oracle

mkdir -p /home/app/oracle

chown -R oracle:oinstall /home/app/oracle

chmod 755 /home/oracle

chmod -R 775 /home/app

9. 设置oracle 的环境变量

su - oracle

vi .bash_profile 末尾添加：

export ORACLE_BASE=/home/app/oracle

export ORACLE_HOME=/home/app/oracle/product/11.2.0

export ORACLE_SID=TSTB

export PATH=$PATH:$ORACLE_HOME/bin

export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib

export NLS_LANG=AMERICAN_AMERICA.UTF8

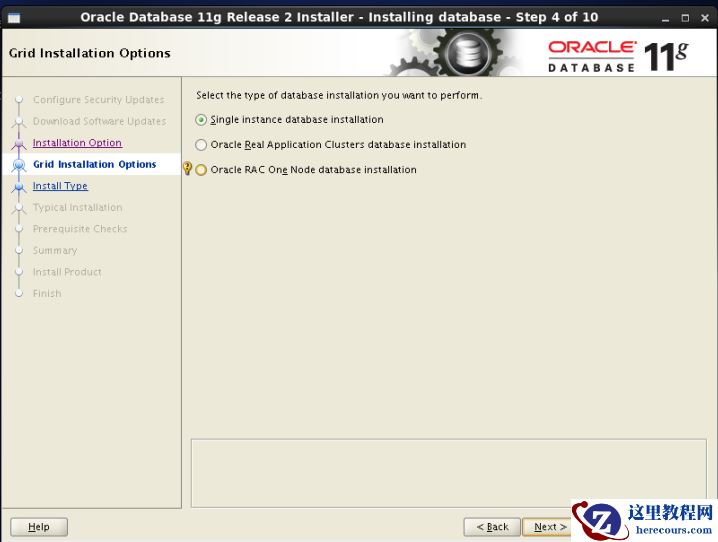

[oracle@TSTB database]$ ./runInstaller

2. 数据复制

2.1 准备备库pfile

主库节点 1

[oracle@TRAC1 nfs]$ sqlplus / as sysdba

SQL*Plus: Release 11.2.0.4.0 Production on Wed Jun 28 14:46:42 2017

Connected to:

Oracle Database 11g Enterprise Edition Release 11.2.0.4.0 - 64bit Production

With the Partitioning, Real Application Clusters, Automatic Storage Management, OLAP,

Data Mining and Real Application Testing options

SQL> create pfile='/home/app/oracle/product/11.2.0/dbs/initTSTB.ora' from spfile;

File created.

SQL> exit

[oracle@TRAC1 dbs]$ scp /home/app/oracle/product/11.2.0/dbs/initTSTB.ora oracle@TSTB:/home/app/oracle/product/11.2.0/dbs/initTSTB.ora

oracle@TSTB's password:

initTSTB.ora 100% 1345 1.3KB/s 00:00

[oracle@TRAC1 dbs]$

备库

mkdir -p /home/app/oracle/admin/TSTB/adump

[oracle@TSTB ~]$ cd /oradata/

[oracle@TSTB oradata]$ mkdir TSTB

[oracle@TSTB oradata]$ cd TSTB/

[oracle@TSTB TSTB]$ mkdir controlfile

[oracle@TSTB TSTB]$ mkdir datafile

[oracle@TSTB TSTB]$ mkdir archivelog

[oracle@TSTB TSTB]$ mkdir onlinelog

[oracle@TSTB TSTB]$ mkdir parameterfile

[oracle@TSTB TSTB]$ mkdir tempfile

[oracle@TSTB dbs]$ vi initTSTB.ora

*.cluster_database=true

TSTB.__db_cache_size=40802189312

TSTB.__java_pool_size=939524096

TSTB.__large_pool_size=1073741824

TSTB.__oracle_base='/home/app/oracle'#ORACLE_BASE set from environment

TSTB.__pga_aggregate_target=10737418240

TSTB.__sga_target=53687091200

TSTB.__shared_io_pool_size=0

TSTB.__shared_pool_size=10603200512

TSTB.__streams_pool_size=0

*.audit_file_dest='/home/app/oracle/admin/TSTB/adump'

*.audit_trail='db'

*.compatible='11.2.0.4.0'

*.control_file_record_keep_time=14

*.control_files='/oradata/TSTB/controlfile/controlfile01','/oradata/TSTB/datafile/controlfile02'

*.db_block_size=8192

*.db_create_file_dest='/oradata'

*.db_domain=''

*.db_files=20000

*.db_name='TRAC'

*.db_unique_name='TSTB'

*.db_recovery_file_dest='/oradata/TSTB/archivelog'

*.db_recovery_file_dest_size=536870912000

*.diagnostic_dest='/home/app/oracle'

*.dispatchers='(PROTOCOL=TCP) (SERVICE=TRACXDB)'

*.fal_client='TSTB'

*.fal_server='TRAC'

*.log_archive_config='dg_config=(TRAC,TSTB)'

*.log_archive_dest_1='location=/oradata/TSTB/archivelog valid_for=(all_logfiles,all_roles) db_unique_name=TSTB'

*.log_archive_dest_2='service=TRAC lgwr async affirm valid_for=(online_logfiles,primary_role) db_unique_name=TRAC'

*.db_file_name_convert="+SSDDATA/TRAC","/oradata/TSTB","+SASDATA/TRAC","/oradata/TSTB"

*.log_file_name_convert="+SSDDATA/TRAC","/oradata/TSTB","+SASDATA/TRAC","/oradata/TSTB"

*.log_archive_dest_state_1='enable'

*.log_archive_dest_state_2='enable'

*.standby_file_management='auto'

*.log_archive_format='%t_%s_%r.dbf'

*.open_cursors=300

*.pga_aggregate_target=10737418240

*.processes=15000

*.remote_listener='TRAC.shdb.domain:1521'

*.remote_login_passwordfile='exclusive'

*.sessions=16505

*.sga_target=53687091200

TSTB.thread=1

TSTB.undo_tablespace='UNDOTBS1'

备库 startup nomount

[oracle@TSTB dbs]$ sqlplus / as sysdba

SQL*Plus: Release 11.2.0.4.0 Production on Thu Jun 29 15:43:50 2017

Connected to:

Oracle Database 11g Enterprise Edition Release 11.2.0.4.0 - 64bit Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options

SQL> shutdown immediate;

ORA-01109: database not open

Database dismounted.

ORACLE instance shut down.

SQL> startup nomount;

ORACLE instance started.

Total System Global Area 4325888000 bytes

Fixed Size 2260208 bytes

Variable Size 905970448 bytes

Database Buffers 3405774848 bytes

Redo Buffers 11882496 bytes

2.2 修改主库pfile ，此步可略过

[oracle@TRAC1 ~]$ cd /home/app/oracle/product/11.2.0/dbs

[oracle@TRAC1 dbs]$ vi initTRAC1.ora.new

增加下面的内容

*.log_archive_dest_1='location=+ARCH valid_for=(all_logfiles,all_roles) db_unique_name=TRAC'

*.log_archive_dest_2="SERVICE=TSTB LGWR async AFFIRM VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) DB_UNIQUE_NAME=TSTB"

*.fal_server=' TSTB'

*.fal_client=' TRAC'

*.log_archive_dest_state_1=enable’

*.log_archive_dest_state_2=enable

#*.db_file_name_convert="/oradata/TSTB/","+DATA/TRAC","/oradata/TSTB/","+SASDATA/TRAC","/oradata/TSTB/","+FRA/TRAC","/oradata/TSTB/","+ARCH/TRAC"

#*.log_file_name_convert="/oradata/TSTB/","+DATA/TRAC","/oradata/TSTB/","+SASDATA/TRAC","/oradata/TSTB/","+FRA/TRAC","/oradata/TSTB/","+ARCH/TRAC"

#*.db_unique_name=TRAC

*.standby_file_management=auto

*.log_archive_config="DG_CONFIG=(TRAC,TSTB)"

2.3 更新主库spfile

节点1,2alter system set log_archive_dest_1='location=+SASDATA valid_for=(all_logfiles,all_roles) db_unique_name=TRAC' scope=both sid='*';alter system set log_archive_dest_2="SERVICE=TSTB LGWR async AFFIRM VALID_FOR=(ONLINE_LOGFILES,PRIMARY_ROLE) DB_UNIQUE_NAME=TSTB" scope=both sid='*';alter system set fal_server='TSTB' scope=both sid='*';alter system set fal_client='TRAC' scope=both sid='*';alter system set log_archive_dest_state_1='enable' scope=both sid='*';alter system set log_archive_dest_state_2='enable' scope=both sid='*';alter system set standby_file_management='auto' scope=both sid='*';alter system set log_archive_config="DG_CONFIG=(TRAC,TSTB)" scope=both sid='*' ;

2.2 主库修改tnsnames.ora

节点 1

vi /home/app/oracle/product/11.2.0/network/admin/tnsnames.ora

[oracle@TRAC1 admin]$ vi /home/app/oracle/product/11.2.0/network/admin/tnsnames.ora

# tnsnames.ora Network Configuration File: /home/app/oracle/product/11.2.0/network/admin/tnsnames.ora

# Generated by Oracle configuration tools.

TRAC =

(DESCRIPTION =(ENABLE=BROKEN)

(ADDRESS_LIST=

(ADDRESS = (PROTOCOL = TCP)(HOST = TRAC1-vip)(PORT = 1521))

(ADDRESS = (PROTOCOL = TCP)(HOST = TRAC2-vip)(PORT = 1521))

(LOAD_BALANCE=NO)(FAILOVER=YES))

(CONNECT_DATA =

(SERVER = DEDICATED)

(SERVICE_NAME = TRAC)

)

TSTB =

(DESCRIPTION =

(ADDRESS = (PROTOCOL = TCP)(HOST = TSTB)(PORT = 1521))

(CONNECT_DATA =

(SERVER = DEDICATED)

(SERVICE_NAME = TSTB)

)

同步到节点 2

[oracle@TRAC1 admin]$ scp tnsnames.ora oracle@TRAC2://home/app/oracle/product/11.2.0/network/admin/tnsnames.ora

The authenticity of host 'TRAC2 (166.188.20.56)' can't be established.

RSA key fingerprint is 60:b3:55:fe:99:f5:20:6b:19:41:01:49:6b:d7:3b:f9.

Are you sure you want to continue connecting (yes/no)? yes

Warning: Permanently added 'TRAC2' (RSA) to the list of known hosts.

tnsnames.ora 100% 650 0.6KB/s 00:00

[oracle@TRAC1 admin]$

2.3 备库建监听器

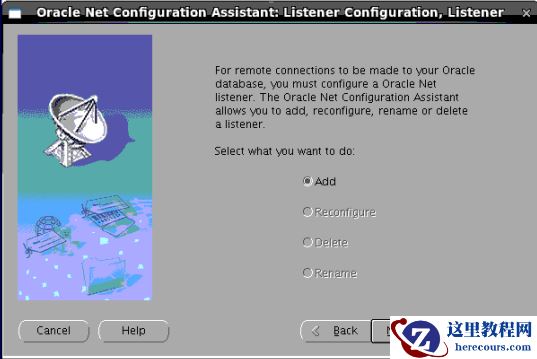

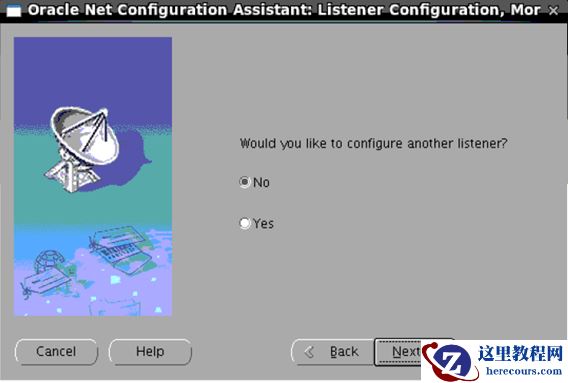

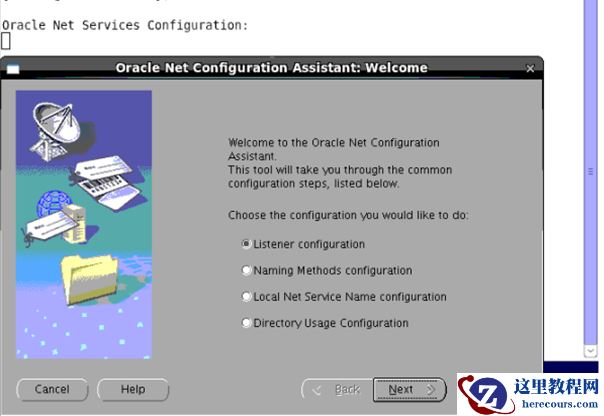

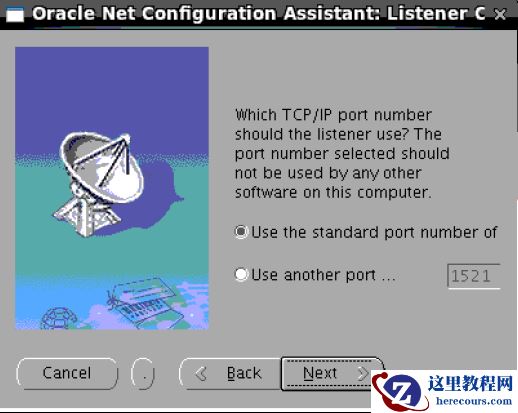

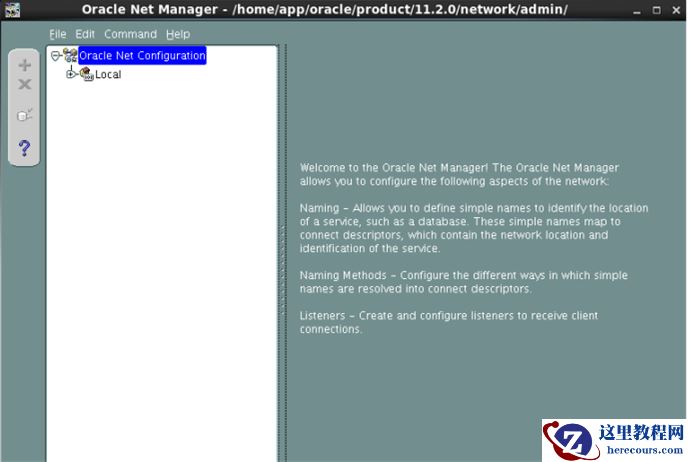

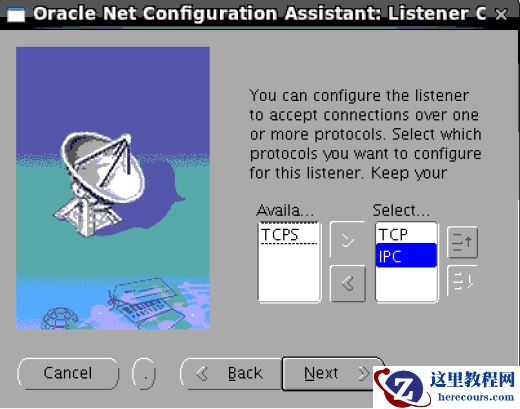

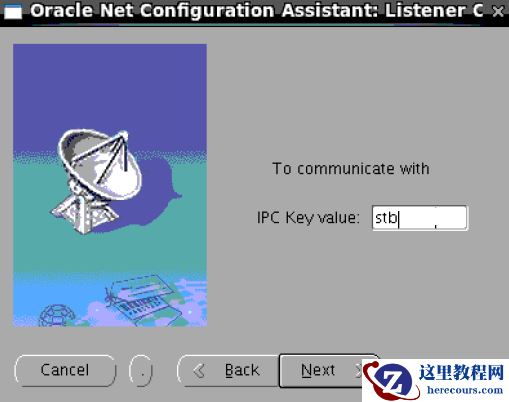

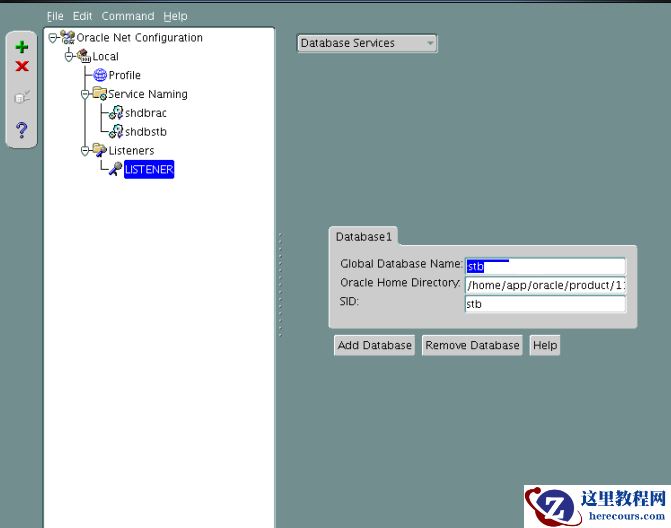

netca 建立监听器

[oracle@TSTB 11.2.0]$ cat ./network/admin/listener.ora

# listener.ora Network Configuration File: /home/app/oracle/product/11.2.0/network/admin/listener.ora

# Generated by Oracle configuration tools.

SID_LIST_LISTENER =

(SID_LIST =

(SID_DESC =

(GLOBAL_DBNAME = TSTB)

(ORACLE_HOME = /home/app/oracle/product/11.2.0)

(SID_NAME = TSTB)

)

LISTENER =

(DESCRIPTION_LIST =

(DESCRIPTION =

(ADDRESS = (PROTOCOL = IPC)(KEY = TSTB))

)

(DESCRIPTION =

(ADDRESS = (PROTOCOL = TCP)(HOST = TSTB)(PORT = 1521))

)

(DESCRIPTION =

(ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))

)

ADR_BASE_LISTENER = /home/app/oracle

2.4 修改主库与备库tnsnames.ora

[oracle@TSTB admin]$ vi tnsnames.oraTRAC = (DESCRIPTION =(ENABLE=BROKEN) (ADDRESS_LIST= (ADDRESS = (PROTOCOL = TCP)(HOST = TRAC1-vip)(PORT = 1521)) (ADDRESS = (PROTOCOL = TCP)(HOST = TRAC2-vip)(PORT = 1521)) (LOAD_BALANCE=NO)(FAILOVER=YES)) (CONNECT_DATA = (SERVER = DEDICATED) (SERVICE_NAME = TRAC) ) ) TSTB = (DESCRIPTION = (ADDRESS = (PROTOCOL = TCP)(HOST = TSTB)(PORT = 1521)) (CONNECT_DATA = (SERVER = DEDICATED) (SERVICE_NAME = TSTB) ) )

2.5 拷贝orapw 文件到备库

节点1[oracle@TRAC1 dbs]$ pwd/home/app/oracle/product/11.2.0/dbs[oracle@TRAC1 dbs]$ scp orapwTRAC1 oracle@TSTB:/home/app/oracle/product/11.2.0/dbs/orapwTSTBoracle@TSTB's password:orapwTRAC1 100% 1536 1.5KB/s 00:00 [oracle@TRAC1 dbs]$

2.6 复制主库到备库

2.6.1 节点2 备份数据库--- 忽略…..

RMAN> BACKUP INCREMENTAL LEVEL 0 SECTION SIZE 200G DATABASE PLUS ARCHIVELOG DELETE ALL INPUT; Starting backup at 03-JUL-17current log archivedusing channel ORA_DISK_1……. RMAN> DELETE FORCE NOPROMPT OBSOLETE REDUNDANCY 1;

2.6.2 节点2 备份standby control file

Last login: Thu Jul 6 10:12:43 2017 from 192.168.50.102[root@TRAC2 ~]# su - oracle[oracle@TRAC2 ~]$ rman target / Recovery Manager: Release 11.2.0.4.0 - Production on Thu Jul 6 10:23:50 2017 Copyright (c) 1982, 2011, Oracle and/or its affiliates. All rights reserved. connected to target database: TRAC (DBID=2425035173) RMAN> backup current controlfile for standby; Starting backup at 06-JUL-17using target database control file instead of recovery catalogallocated channel: ORA_DISK_1channel ORA_DISK_1: SID=10720 instance=TRAC2 device type=DISKchannel ORA_DISK_1: starting compressed full datafile backup setchannel ORA_DISK_1: specifying datafile(s) in backup setincluding standby control file in backup setchannel ORA_DISK_1: starting piece 1 at 06-JUL-17channel ORA_DISK_1: finished piece 1 at 06-JUL-17piece handle=/data_backup/60s8lllt_1_1 tag=TAG20170706T102357 comment=NONEchannel ORA_DISK_1: backup set complete, elapsed time: 00:00:01Finished backup at 06-JUL-17 Starting Control File and SPFILE Autobackup at 06-JUL-17piece handle=/data_backup/ctlbackup/c-2425035173-20170706-01 comment=NONEFinished Control File and SPFILE Autobackup at 06-JUL-17 RMAN> exit

2.6.3 备库还原数据

1) 启动备库到nomount 状态

[oracle@TSTB ~]$ sqlplus / as sysdba SQL*Plus: Release 11.2.0.4.0 Production on Mon Jul 3 17:49:45 2017 Copyright (c) 1982, 2013, Oracle. All rights reserved. Connected to an idle instance. SQL> startup pfile='/home/app/oracle/product/11.2.0/dbs/initTSTB.ora.new' nomountORACLE instance started. Total System Global Area 4325888000 bytesFixed Size 2260208 bytesVariable Size 905970448 bytesDatabase Buffers 3405774848 bytesRedo Buffers 11882496 bytesSQL>

2) 恢复standby control file

[oracle@TSTB bakdata]$ rman target / Recovery Manager: Release 11.2.0.4.0 - Production on Mon Jul 3 17:50:36 2017 Copyright (c) 1982, 2011, Oracle and/or its affiliates. All rights reserved. connected to target database: TRAC (not mounted) [oracle@TSTB TSTB]$ rman target / Recovery Manager: Release 11.2.0.4.0 - Production on Thu Jul 6 10:27:19 2017 Copyright (c) 1982, 2011, Oracle and/or its affiliates. All rights reserved. connected to target database: TRAC (not mounted) RMAN> restore standby controlfile from '/data_backup/62s8lm5a_1_1'; Starting restore at 06-JUL-17 using target database control file instead of recovery catalog allocated channel: ORA_DISK_1 channel ORA_DISK_1: SID=12221 device type=DISK channel ORA_DISK_1: restoring control file channel ORA_DISK_1: restore complete, elapsed time: 00:00:01 output file name=/oradata/TSTB/controlfile/controlfile01 output file name=/oradata/TSTB/datafile/controlfile02 Finished restore at 06-JUL-17

3) 恢复数据

RMAN> alter database mount; database mountedreleased channel: ORA_DISK_1 RMAN> restore database;………………………………. RMAN> recover database; ……………………………….

4) 备库增加standby logfile

SQL> alter database add standby logfile thread 1('/oradata/TSTB/onlinelog/stb_1.log') size 2G; alter database add standby logfile thread 1('/oradata/TSTB/onlinelog/stb_2.log') size 2G; alter database add standby logfile thread 1('/oradata/TSTB/onlinelog/stb_3.log') size 2G; alter database add standby logfile thread 1('/oradata/TSTB/onlinelog/stb_4.log') size 2G; alter database add standby logfile thread 1('/oradata/TSTB/onlinelog/stb_5.log') size 2G; alter database add standby logfile thread 2('/oradata/TSTB/onlinelog/stb_6.log') size 2G; alter database add standby logfile thread 2('/oradata/TSTB/onlinelog/stb_7.log') size 2G; alter database add standby logfile thread 2('/oradata/TSTB/onlinelog/stb_8.log') size 2G; alter database add standby logfile thread 2('/oradata/TSTB/onlinelog/stb_9.log') size 2G; alter database add standby logfile thread 2('/oradata/TSTB/onlinelog/stb_10.log') size 2G;

5) 追加归档

节点2 RMAN> backup archivelog all delete all input ; ………………………. 备库 RMAN> catalog start with '/data_backup/64s8m1ae_1_1';………………………. RMAN> recover database; …………………………….. RMAN>

6) 启动备库

SQL> alter database open read only; Database altered. SQL> alter database set standby database to maximize availability; Database altered. SQL> alter database recover managed standby database using current logfile disconnect from session; Database altered. SQL> select open_mode,database_role,switchover_status from v$database; OPEN_MODE------------------------------------------------------------DATABASE_ROLE------------------------------------------------SWITCHOVER_STATUS------------------------------------------------------------READ ONLY WITH APPLYPHYSICAL STANDBYNOT ALLOWED

7) 备库增加tempfile

SQL> alter tablespace temp add tempfile '/oradata/TSTB/tempfile/temp01.dbf' size 1G autoextend on next 100M;SQL> alter tablespace temp add tempfile '/oradata/TSTB/tempfile/temp02.dbf' size 1G autoextend on next 100M;SQL> alter tablespace temp add tempfile '/oradata/TSTB/tempfile/temp03.dbf' size 1G autoextend on next 100M;SQL> alter tablespace temp add tempfile '/oradata/TSTB/tempfile/temp04.dbf' size 1G autoextend on next 100M;SQL> alter tablespace temp add tempfile '/oradata/TSTB/tempfile/temp05.dbf' size 1G autoextend on next 100M;SQL> alter tablespace temp add tempfile '/oradata/TSTB/tempfile/temp06.dbf' size 1G autoextend on next 100M;SQL> alter tablespace temp add tempfile '/oradata/TSTB/tempfile/temp07.dbf' size 1G autoextend on next 100M;SQL> alter tablespace temp add tempfile '/oradata/TSTB/tempfile/temp08.dbf' size 1G autoextend on next 100M;SQL> alter tablespace temp add tempfile '/oradata/TSTB/tempfile/temp09.dbf' size 1G autoextend on next 100M;SQL> alter tablespace temp add tempfile '/oradata/TSTB/tempfile/temp10.dbf' size 1G autoextend on next 100M;

8) 主库增加standby logfile

SQL> alter database add standby logfile thread 1('+sasdata/TRAC/onlinelog/stb_1.log') size 2G ; alter database add standby logfile thread 1 ('+sasdata/TRAC/onlinelog/stb_2.log') size 2G ; alter database add standby logfile thread 1('+sasdata/TRAC/onlinelog/stb_3.log') size 2G ; alter database add standby logfile thread 1 ('+sasdata/TRAC/onlinelog/stb_4.log') size 2G ; alter database add standby logfile thread 1('+sasdata/TRAC/onlinelog/stb_5.log') size 2G ; alter database add standby logfile thread 2('+sasdata/TRAC/onlinelog/stb_6.log') size 2G ; alter database add standby logfile thread 2('+sasdata/TRAC/onlinelog/stb_7.log') size 2G ; alter database add standby logfile thread 2('+sasdata/TRAC/onlinelog/stb_8.log') size 2G ; alter database add standby logfile thread 2('+sasdata/TRAC/onlinelog/stb_9.log') size 2G ; alter database add standby logfile thread 2('+sasdata/TRAC/onlinelog/stb_10.log') size 2G ;

9) 连接验证

节点1SQL> alter system switch logfile;System altered.SQL> delete from test;5 rows deleted.SQL> commit;Commit complete.SQL> insert into test values ('sdfasdfsdf');1 row created.SQL> commit;Commit complete.SQL> 备库SQL> select * from test;NAME------------------------------------------------------------123sdadfdsadadsdadadsd123sdadfds1222 SQL> /no rows selectedSQL> /NAME------------------------------------------------------------sdfasdfsdfSQL>
