在redhat7系统上为Oracle11g数据库打PSU报CRS-4124 CRS-4000错误分析与追踪

1 启动集群，发现不能启动，，报如下错误 [root@testdb2 ~]# /u01/app/11.2.0/grid/bin/crsctl start crs CRS-4124: Oracle High Availability Services startup failed. CRS-4000: Command Start failed, or completed with errors. 2 根据报错信息，按照网上的文档，删除/var/tmp/.oracle/npohasd 发现不能解决问题 [root@testdb2 ~]# cd /var/tmp [root@testdb2 tmp]# rm -rf .oracle [root@testdb2 ~]# /u01/app/11.2.0/grid/bin/crsctl start crs CRS-4124: Oracle High Availability Services startup failed. CRS-4000: Command Start failed, or completed with errors. 3 然后对相关进程做TRACE [root@testdb2 ~]# ps -ef|grep  crsctl root      32511  31666  0 17:34 pts/0    00:00:00 /u01/app/11.2.0/grid/bin/crsctl.bin start crs root      36355  36109  0 17:36 pts/1    00:00:00 grep --color=auto crsctl [root@testdb2 ~]#  strace -p 32511 strace: Process 32511 attached restart_syscall(<... resuming interrupted nanosleep ...>) = 0 open("/proc/self/status", O_RDONLY)     = 3 read(3, "Name:\tcrsctl.bin\nUmask:\t0022\nSta"..., 4096) = 1334 close(3)                                = 0 access("/usr/lib64/qt-3.3/bin/crsctl.bin", F_OK) = -1 ENOENT (No such file or directory) access("/usr/local/sbin/crsctl.bin", F_OK) = -1 ENOENT (No such file or directory) access("/usr/local/bin/crsctl.bin", F_OK) = -1 ENOENT (No such file or directory) access("/sbin/crsctl.bin", F_OK)        = -1 ENOENT (No such file or directory) access("/bin/crsctl.bin", F_OK)         = -1 ENOENT (No such file or directory) access("/usr/sbin/crsctl.bin", F_OK)    = -1 ENOENT (No such file or directory) access("/usr/bin/crsctl.bin", F_OK)     = -1 ENOENT (No such file or directory) access("/root/bin/crsctl.bin", F_OK)    = -1 ENOENT (No such file or directory) brk(NULL)                               = 0xefe000 brk(0xf3e000)                           = 0xf3e000 brk(NULL)                               = 0xf3e000 brk(0xfbe000)                           = 0xfbe000 brk(NULL)                               = 0xfbe000 brk(0xff6000)                           = 0xff6000 ......... 41999      0.000019 access("/var/tmp/.oracle/npohasd", F_OK) = -1 ENOENT (No such file or directory) <0.000007> 41999      0.000020 access("/var/tmp/.oracle/npohasd", F_OK) = -1 ENOENT (No such file or directory) <0.000008> 41999      0.000019 access("/var/tmp/.oracle/npohasd", F_OK) = -1 ENOENT (No such file or directory) <0.000007> 41999      0.000020 access("/var/tmp/.oracle/npohasd", F_OK) = -1 ENOENT (No such file or directory) <0.000008> 由于多次删除/var/tmp/.oracle目录，并不能解决问题，根据如下信息，又发现/var/tmp/.oracle/npohasd文件不能访问 于是到Oracle官网查询相关信息，发现如下文档《 Linux: OS "init" process does not start init.ohasd in inittab (Doc ID 1591775.1) To BottomTo Bottom 》说明是由于ohasd进程不能启动，导致crsctl 不能启动集群。 文档内容如下： 4 根据如上文档，认为是ohasd服务不能启动导致的，由于oracle11G在redhat7支持的不是很好，故怀疑 是自己创建的ohasd服务异常，导致的数据库集群不能启动。 查看ohas.service服务的状态，发现ohasd进程虽然是running,但提示有die, [root@testdb2 tmp]# systemctl status ohas.service ● ohas.service - Oracle High Availability Services    Loaded: loaded (/usr/lib/systemd/system/ohas.service; enabled; vendor preset: disabled)    Active: active (running) since Fri 2021-10-22 08:41:05 CST; 50min ago  Main PID: 26360 (init.ohasd)     Tasks: 1    CGroup: /system.slice/ohas.service            └─26360 /bin/sh /etc/init.d/init.ohasd run >/dev/null 2>&1 Type=simple Oct 22 08:41:25 testdb2 clsecho[29462]: /etc/init.d/init.ohasd: ohasd.bin process 9443 died while waiting to move. Oct 22 08:41:25 testdb2 init.ohasd[26360]: /etc/init.d/init.ohasd: ohasd.bin p rocess 9443 died while waiting to move. Oct 22 08:59:27 testdb2 clsecho[42022]: /etc/init.d/init.ohasd: 4999 > /sys/fs/cgroup/cpu,cpuacct/tasks Oct 22 08:59:27 testdb2 init.ohasd[26360]: /etc/init.d/init.ohasd: 4999 > /sys/fs/cgroup/cpu,cpuacct/tasks Oct 22 08:59:27 testdb2 init.ohasd[26360]: /bin/echo: write error: No such process Oct 22 08:59:27 testdb2 clsecho[42025]: /etc/init.d/init.ohasd: 4999 > /sys/fs/cgroup/systemd/system.slice/oracle-ohasd.service/tasks Oct 22 08:59:27 testdb2 init.ohasd[26360]: /etc/init.d/init.ohasd: 4999 > /sys/fs/cgroup/systemd/system.slice/oracle-ohasd.service/tasks Oct 22 08:59:27 testdb2 init.ohasd[26360]: /bin/echo: write error: No such process Oct 22 08:59:27 testdb2 clsecho[42032]: /etc/init.d/init.ohasd: ohasd.bin process 4999 died while waiting to move. Oct 22 08:59:27 testdb2 init.ohasd[26360]: /etc/init.d/init.ohasd: ohasd.bin process 4999 died while waiting to m ove. 5 按照 文档《

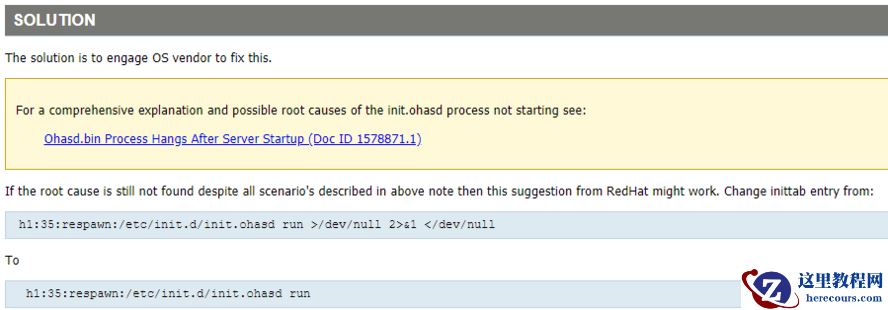

Linux: OS "init" process does not start init.ohasd in inittab (Doc ID 1591775.1) To BottomTo Bottom

》 修改主机的配置，再次启动数据库集群，发现集群可以正常启动了。

修改如下：

[root@testdb2 tmp]# cat /etc/inittab |grep -v "#" htfa:35:respawn:/etc/init.d/init.tfa run >/dev/null 2>&1 </dev/null h1:35:respawn:/etc/init.d/init.ohasd run

经过十几次的测试，以下命令可以正常启动了，再也没有发生CRS-4124 和CRS-4000的错误了。[root@testdb2 tmp]#  /u01/app/11.2.0/grid/bin/crsctl start crsCRS-4123: Oracle High Availability Services has been started.
