oracle数据库的ACFS图形界面不可选择

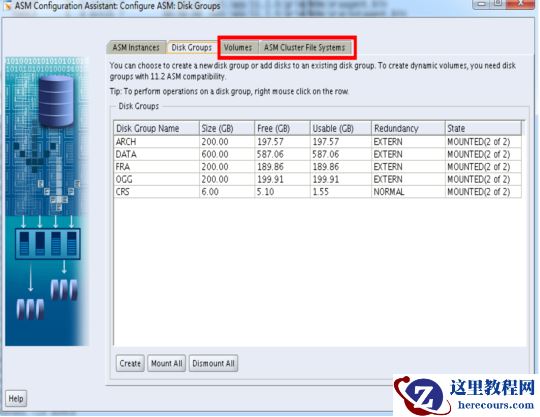

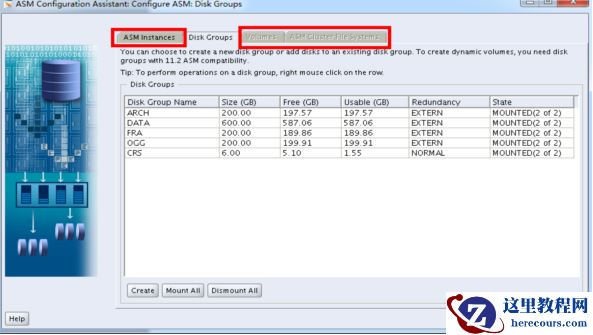

1 不能创建acfs文件系统，asmca图形界面如下： 2  参考 11.2 ASMCA displays a disabled (non-selectable) ACFS tab (文档 ID 1593187.1)官方文档进行处理。 验证ACFS是否安装 [root@racdb1 ~]# cd /u01/app/11.2.0/grid/bin/ [root@racdb1 bin]# ls -ltr acfsdriverstate* -rwxr-xr-x 1 root oinstall 2792 Oct 21 09:46 acfsdriverstate [root@racdb1 bin]# ./acfsdriverstate supported ACFS-9200: Supported [root@racdb1 bin]# ./acfsdriverstate installed ACFS-9203: true   检查 acfs 驱动是否被加载，发现为空，即没有加载 [root@racdb1 bin]# /sbin/lsmod |grep oracle [root@racdb1 bin]#   启动ACFS [root@racdb1 bin]# ls -ltr acfsload* -rwxr-xr-x 1 root oinstall 1111 Oct 21 09:46 acfsload [root@racdb1 bin]# ./acfsload start ACFS-9391: Checking for existing ADVM/ACFS installation. ACFS-9392: Validating ADVM/ACFS installation files for operating system. ACFS-9393: Verifying ASM Administrator setup. ACFS-9308: Loading installed ADVM/ACFS drivers. ACFS-9154: Loading 'oracleoks.ko' driver. ACFS-9154: Loading 'oracleadvm.ko' driver. ACFS-9154: Loading 'oracleacfs.ko' driver. ACFS-9327: Verifying ADVM/ACFS devices. ACFS-9156: Detecting control device '/dev/asm/.asm_ctl_spec'. ACFS-9156: Detecting control device '/dev/ofsctl'. ACFS-9322: completed   再次检查 ACFS模块，发现已经有了 [root@racdb1 bin]#   /sbin/lsmod |grep oracle oracleacfs           2042042  0 oracleadvm            237414  0 oracleoks             460436  2 oracleacfs,oracleadvm 3 再次查看图形界面，发现好了
