Oracle
创建PDB-
本地克隆

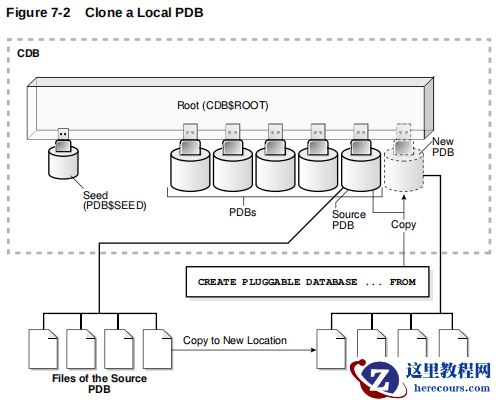

一：本地克隆
--- 连接cjcpdb02
SQL > conn sys / oracle @ cjcpdb02 as sysdba
Connected.
--- 授权
SQL > grant connect , resource , dba to cjc ;
Grant succeeded.
--- 连接cjcpdb02创建测试数据
SQL > conn cjc / oracle @ cjcpdb02
Connected.
SQL > create table t1 as select level as id from dual connect by level <= 10 ;
Table created.
SQL > select * from t1 ;
ID
----------
1
2
3
4
5
6
7
8
9
10
10 rows selected.
--- 创建目录
[oracle @ cjcos oradata]$ pwd
/ u01 / app / oracle12 / oradata
[oracle @ cjcos oradata]$ mkdir cjcpdb03
---clone pdb
SQL > conn / as sysdba
Connected.
SQL >
CREATE PLUGGABLE DATABASE cjcpdb03 FROM cjcpdb02
FILE_NAME_CONVERT = ( '/u01/app/oracle12/oradata/cjcpdb02/' ,
'/u01/app/oracle12/oradata/cjcpdb03/' );
--- 对应告警日志
---alert
2020 - 03 - 30 T09 : 33 : 13.671843 + 08 : 00
CREATE PLUGGABLE DATABASE cjcpdb03 FROM cjcpdb02
FILE_NAME_CONVERT = ( '/u01/app/oracle12/oradata/cjcpdb02/' ,
'/u01/app/oracle12/oradata/cjcpdb03/' )
2020 - 03 - 30 T09 : 33 : 14.246808 + 08 : 00
CJCPDB02 ( 4 ): AUDSYS.AUD$UNIFIED ( SQL_TEXT ) - CLOB populated
2020 - 03 - 30 T09 : 34 : 19.768496 + 08 : 00
CJCPDB03 ( 5 ): Endian type of dictionary set to little
2020 - 03 - 30 T09 : 34 : 21.685283 + 08 : 00
****************************************************************
Pluggable Database CJCPDB03 with pdb id - 5 is created as UNUSABLE.
If any errors are encountered before the pdb is marked as NEW ,
then the pdb must be dropped
local undo - 1 , localundoscn - 0 x00000000000000e1
****************************************************************
CJCPDB03 ( 5 ): Media Recovery Start
2020 - 03 - 30 T09 : 34 : 21.972065 + 08 : 00
CJCPDB03 ( 5 ): Serial Media Recovery started
CJCPDB03 ( 5 ): max_pdb is 5
2020 - 03 - 30 T09 : 34 : 22.336660 + 08 : 00
CJCPDB03 ( 5 ): Recovery of Online Redo Log : Thread 1 Group 1 Seq 91 Reading mem 0
CJCPDB03 ( 5 ): Mem# 0 : / u01 / app / oracle12 / oradata / cjcdb01 / redo01.log
2020 - 03 - 30 T09 : 34 : 22.575875 + 08 : 00
CJCPDB03 ( 5 ): Incomplete Recovery applied until change 6667097 time 03 / 30 / 2020 09 : 34 : 16
2020 - 03 - 30 T09 : 34 : 22.693447 + 08 : 00
CJCPDB03 ( 5 ): Media Recovery Complete ( cjcdb01 )
CJCPDB03 ( 5 ): Autotune of undo retention is turned on.
2020 - 03 - 30 T09 : 34 : 24.377316 + 08 : 00
CJCPDB03 ( 5 ): Undo initialization recovery : err : 0 start : 1164547948 end : 1164547980 diff : 32 ms ( 0.0 seconds )
CJCPDB03 ( 5 ): [ 10627 ] Successfully onlined Undo Tablespace 2 .
CJCPDB03 ( 5 ): Undo initialization online undo segments : err : 0 start : 1164547981 end : 1164547990 diff : 9 ms ( 0.0 seconds )
CJCPDB03 ( 5 ): Undo initialization finished serial : 0 start : 1164547948 end : 1164547993 diff : 45 ms ( 0.0 seconds )
CJCPDB03 ( 5 ): Database Characterset for CJCPDB03 is AL32UTF8
CJCPDB03 ( 5 ): JIT : pid 10627 requesting stop
CJCPDB03 ( 5 ): Buffer Cache flush started : 5
CJCPDB03 ( 5 ): Buffer Cache flush finished : 5
2020 - 03 - 30 T09 : 34 : 26.281633 + 08 : 00
Completed : CREATE PLUGGABLE DATABASE cjcpdb03 FROM cjcpdb02
FILE_NAME_CONVERT = ( '/u01/app/oracle12/oradata/cjcpdb02/' ,
'/u01/app/oracle12/oradata/cjcpdb03/' )
--- 查看pdb状态
SQL > show pdbs
CON_ID CON_NAME OPEN MODE RESTRICTED
---------- ------------------------------ ---------- ----------
2 PDB$SEED READ ONLY NO
3 CJCPDB01 READ WRITE NO
4 CJCPDB02 READ WRITE NO
5 CJCPDB03 MOUNTED
---open cjcpdb03
SQL > alter session set container = cjcpdb03 ;
Session altered.
SQL > startup
Pluggable Database opened.
[oracle @ cjcos admin ]$ pwd
/ u01 / app / oracle19 / product / 19.0 .0 / dbhome_1 / network / admin
[oracle @ cjcos admin ]$ vim tnsnames.ora
......
CJCPDB03 =
( DESCRIPTION =
( ADDRESS = ( PROTOCOL = TCP )( HOST = cjcos )( PORT = 1521 ))
( CONNECT_DATA =
( SERVER = DEDICATED )
( SERVICE_NAME = cjcpdb03 )
)
)
SQL > conn cjc / oracle @ cjcpdb03
Connected.
SQL > select * from t1 ;
ID
----------
1
2
3
4
5
6
7
8
9
10
10
rows
selected.
