ORACLE_CDB/PDB克隆迁移转换

来源：这里教程网时间：2026-03-03 15:16:55 作者：

Oracle 12c PDB/CDB相关测试

1. 本地克隆pdb

1.1 环境检查

源环境和目标环境执行数据库版本12.2.0.1.0. $ sqlplus / as sysdba SQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 ORCLPDB READ WRITE NO 4 TESTCLONEPDB MOUNT NO

1.2 环境克隆

$ sqlplus / as sysdba SQL> alter session set container= TESTCLONEPDB; Session altered. SQL> alter database open read only; Database altered. SQL > exit; SQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 ORCLPDB READ WRITE NO 4 TESTCLONEPDB READ WRITE NO SQL> exit SQL> create pluggable database testpdb from ORCLPDB file_name_convert=('orclpdb','testpdb'); Pluggable database created. SQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 ORCLPDB READ WRITE NO 4 TESTCLONEPDB READ WRITE NO 5 TESTPDB MOUNTED SQL> alter session set container= TESTPDB; Session altered. SQL> show pdbs CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 5 TESTPDB MOUNTEDSQL> alter database open; Database altered. SQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 5 TESTPDB READ WRITE NO

2. 跨服务器克隆pdb

2.1 本地复制异地进行插入方式

2.1.1 源环境克隆

源端执行：$ sqlplus / as sysdba SQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 ORCLPDB READ WRITE NOSQL>SQL> alter pluggable database ORCLPDB close;Pluggable database altered.SQL> alter pluggable database ORCLPDB open read only;Pluggable database altered.SQL> create pluggable database ORCLPDB_clone from ORCLPDB 2 file_name_convert=('/u02/app/oracle/oradata/orcl/orclpdb/','/u02/app/oracle/oradata/orcl/orclpdb_clone/');Pluggable database created.SQL> alter pluggable database ORCLPDB close;Pluggable database altered.SQL> alter pluggable database ORCLPDB open;Pluggable database altered.SQL> alter pluggable database ORCLPDB_clone open;Pluggable database altered.

2.1.2 源环境导出XML文件

SQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 ORCLPDB READ WRITE NO 4 ORCLPDB_CLONE READ WRITE NOSQL> alter pluggable database ORCLPDB_CLONE close;Pluggable database altered.SQL> alter pluggable database ORCLPDB_CLONE unplug into '/u02/app/oracle/oradata/orcl/orclpdb_clone/orclpdb_clone.xml';Pluggable database altered.SQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 ORCLPDB READ WRITE NO 4 ORCLPDB_CLONE MOUNTED

2.1.3 复制文件到目标环境

-- 目标端执行在目标端创建与源端一致的数据文件路径；$ mkdir -p /u02/app/oracle/oradata/orcl/orclpdb_clone$ mkdir -p /u02/app/oracle/oradata/TEST/orclpdb/$ cd /u02/app/oracle/oradata/orcl/orclpdb_clone$ scp root@192.168.1.161:/u02/app/oracle/oradata/orcl/orclpdb_clone/* .

2.1.4 目标环境插入PDB

-- 目标端执行[oracle@pdb2 orclpdb]$ sqlplus / as sysdbaSQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 TESTPDB READ WRITE NOSQL> create pluggable database orclpdb_clone using '/u02/app/oracle/oradata/orcl/orclpdb_clone/orclpdb_clone.xml' 2 file_name_convert=('/u02/app/oracle/oradata/orcl/orclpdb_clone/','/u02/app/oracle/oradata/TEST/orclpdb/') 3 copy;Pluggable database created.

2.1.5 检查目标环境

-- 目标端执行SQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 TESTPDB READ WRITE NO 5 ORCLPDB_CLONE MOUNTEDSQL> alter pluggable database ORCLPDB_CLONE open;Pluggable database altered.SQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 TESTPDB READ WRITE NO 5 ORCLPDB_CLONE READ WRITE NO

2.1.6 删除源环境的备份

-- 在源端执行$ sqlplus / as sysdbaSQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 ORCLPDB READ WRITE NO 4 ORCLPDB_CLONE MOUNTEDSQL> drop pluggable database ORCLPDB_CLONE;Pluggable database dropped.SQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 ORCLPDB READ WRITE NO-- 在源端执行$ cd /u02/app/oracle/oradata/orcl$ ls -al orclpdb_clone$ rm -rf orclpdb_clone

2.2 dblink方式

2.2.1 源端创建用户

--源端SQL> show pdbs;SQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 DEMOPDB READ WRITE NO 4 TESTPDB READ WRITE NO SQL> create user c##andy identified by andy container=all;User created.SQL> grant dba to c##andy container=all;Grant succeeded.

2.2.2 目标端创建DBLINK

-- 目标端cdb执行SQL> create database link clonepdb connect to c##andy identified by andy using '(DESCRIPTION =(ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.1.165)(PORT = 1522))(CONNECT_DATA=(SERVER = DEDICATED)(SERVICE_NAME =demo)))';Database link created.

2.2.3 目标端执行克隆

-- 目标端cdbSQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 ORCLPDB READ WRITE NOSQL> alter session set pdb_file_name_convert='testpdb','testclonepdb'; Session altered. -- 通过 dblink 克隆源端的 pdb SQL> create pluggable database testclonepdb from TESTPDB@clonepdb; Pluggable database created. SQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 ORCLPDB READ WRITE NO 4 TESTCLONEPDB MOUNTEDSQL>SQL> alter pluggable database TESTCLONEPDB open; Pluggable database altered.

2.2.4 检查目标环境

SQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 ORCLPDB READ WRITE NO 4 TESTCLONEPDB READ WRITE NO

3. NO CDB转换成CDB

3.1 源环境检查

SQL> select name, decode(cdb, 'YES', 'Multitenant Option enabled', 'Regular 12c Database: ') "Multitenant Option" , open_mode, con_id from v$database; NAME Multitenant Option OPEN_MODE CON_ID--------- -------------------------- -------------------- ----------DEV Regular 12c Database: READ WRITE 0 SQL> select name from v$datafile; NAME--------------------------------------------------------------------------------/u01/app/oracle/oradata/DEV/system01.dbf/u01/app/oracle/oradata/DEV/sysaux01.dbf/u01/app/oracle/oradata/DEV/undotbs01.dbf/u01/app/oracle/oradata/DEV/users01.dbf

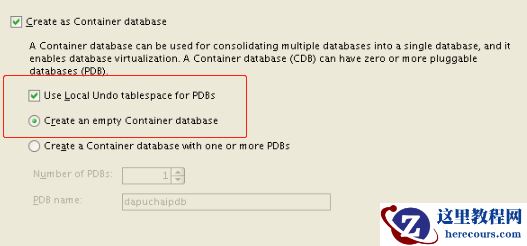

3.2 搭建目标数据库

3.3 迁移

源环境SQL> shutdown immediate;SQL> alter database open read only;SQL> begin

dbms_pdb.describe(PDB_DESCR_FILE => '/u01/test/ DEV.xml'); end; / 目标环境SQL> create pluggable database ORCL using '/u01/test/DEV.xml' file_name_convert=('/u01/app/oracle/oradata/DEV','/u01/app/oracle/oradata/ORCL/ORCLpdb'); SQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 ORCL MOUNTED SQL> alter session set container=ORCL; Session altered. SQL>SQL> @?/rdbms/admin/noncdb_to_pdb.sql SQL> alter pluggable database ORCL open;

3.4 目标环境检查

SQL> show pdbs; CON_ID CON_NAME OPEN MODE RESTRICTED---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 ORCL READ WRITE NO
