Oracle 19C Data Guard基础运维-05Failovers (GAP)

Oracle 19C Data Guard 基础运维 -0 5Failovers (GAP)

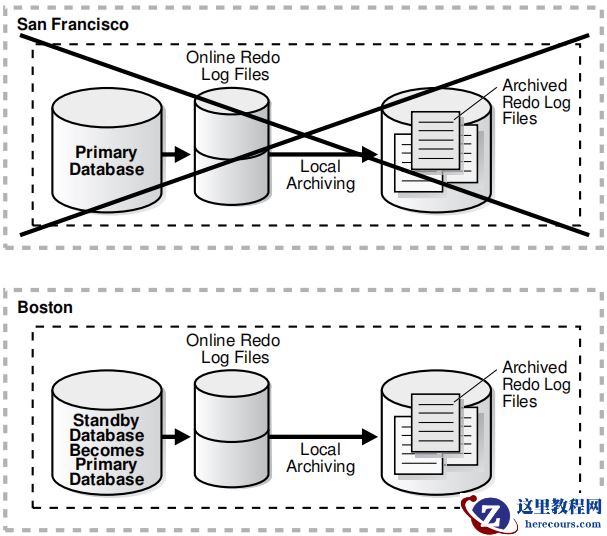

Failover ： https://docs.oracle.com/en/database/oracle/oracle-database/19/sbydb/data-guard-concepts-and-administration.pdf Figure 9-4 Failover to a Standby Database  Performing a Failover to a Physical Standby Database   关于archive gap 的问题？ 上一篇博客《04 Failovers疑问？》写了关于 archive gap的疑问，在实验中，我提前将备库关机，主库端插入大量数据产生 3个归档文件，并手动将最后 3个归档文件重命名，目的是不让备库获取到这三个归档文件，在启动备库，试图模拟出备库 archive gap场景，但是在备库端 v$archive_gap中显示空的，备库没有检测出 archive gap的存在吗？ 实际上是本人对archive gap概念存在一些误解，比如主库有 1到 100个归档，我认为只要有任何归档文件在备库端获取失败都会出现 archive gap，都会记录到 v$archive_gap，通过上一篇实验发现这种理论显然是不对的，我强制将主库 98,99,100三个归档文件重命名，备库端并没有出现 archive gap，即在 v$archive_gap中不会有数据。 那么究竟什么场景才会出现archive gap？真实的场景是，备库在接收主库归档文件时有部分没有接收成功，但后续的归档文件又接收成功了，比如主库 1到 100个归档文件，出于某种原因，备库没有接收到 97,98两个归档，但是后面的 99,100归档又能正常接收，这时就会产生 archive gap，在 v$archive_gap会查到 97,98归档信息。 (感谢墨天轮平台“你好我是李白”的答疑解惑 ) 实验过程如下： 场景二：archive gap下的failover 主库模拟故障，模拟归档gap ： 先停掉备库: 不接收主库产生的 redo 或归档数据 SQL> shutdown immediate 主库：生成测试数据，生成redo 和归档数据 ---session 1 SQL> declare begin   for i in 1 .. 1000 000  loop     insert into test1 values (i);     commit;   end loop; end; 插入数据期间，生成了3 个归档文件 [oracle@cjcos01 arch]$ pwd /arch ...... cjcpdb_arch_1_74_1030641846.arc cjcpdb_arch_1_75_1030641846.arc cjcpdb_arch_1_76_1030641846.arc 主库重命名新产生的前两个归档文件，模拟归档gap [oracle@cjcos01 arch]$ mv cjcpdb_arch_1_74_1030641846.arc cjcpdb_arch_1_74_1030641846.arc.bak [oracle@cjcos01 arch]$ mv cjcpdb_arch_1_75_1030641846.arc cjcpdb_arch_1_75_1030641846.arc.bak 再次插入部分数据 SQL> declare begin   for i in 1 .. 1000 0  loop     insert into test1 values (i);     commit;   end loop; end; 启动备库： SQL> startup -- 备库启动时，查看对应主库日志，提示找不到 74,75 两个归档文件，无法将 74,75 发送到备库端。 2020-04-19T18:37:53.170879+08:00 Errors in file /u01/app/oracle/diag/rdbms/cjcdb/cjcdb/trace/cjcdb_tt00_2349.trc: ORA-00308: cannot open archived log '/arch/cjcpdb_arch_1_75_1030641846.arc' ORA-27037: unable to obtain file status Linux-x86_64 Error: 2: No such file or directory Additional information: 7 2020-04-19T18:37:53.171203+08:00 Errors in file /u01/app/oracle/diag/rdbms/cjcdb/cjcdb/trace/cjcdb_tt00_2349.trc: ORA-00308: cannot open archived log '/arch/cjcpdb_arch_1_74_1030641846.arc' ORA-27037: unable to obtain file status Linux-x86_64 Error: 2: No such file or directory Additional information: 7 备库：查看archive log ，实际应该是 74 到 75 ，不清楚为什么会显示 73 SQL> ALTER DATABASE RECOVER MANAGED STANDBY DATABASE DISCONNECT FROM SESSION; SQL> select thread#, low_sequence#, high_sequence# from v$archive_gap;    THREAD# LOW_SEQUENCE# HIGH_SEQUENCE# ---------- ------------- --------------  1       73      75 备库：没有接收到74,75 两个归档文件 主库重命名system01.dbf 模拟数据库故障 [oracle@cjcos01 arch]$ cd /u01/app/oracle/oradata/CJCDB/ [oracle@cjcos01 CJCDB]$ mv system01.dbf system01.dbf.bak SQL> alter system checkpoint; SQL> shutdown abort 主库启动失败 SQL> startup ORACLE instance started. Total System Global Area 1375728192 bytes Fixed Size       9134656 bytes Variable Size    1107296256 bytes Database Buffers   251658240 bytes Redo Buffers       7639040 bytes Database mounted. ORA-01157: cannot identify/lock data file 1 - see DBWR trace file ORA-01110: data file 1: '/u01/app/oracle/oradata/CJCDB/system01.dbf' SQL> select open_mode from v$database; OPEN_MODE -------------------- MOUNTED 备库： 1. 检查 dg 恢复模式 ( 最大性能模式 ) SQL> select database_role,protection_level,protection_mode from v$database; DATABASE_ROLE  PROTECTION_LEVEL     PROTECTION_MODE ---------------- -------------------- -------------------- PHYSICAL STANDBY MAXIMUM PERFORMANCE  MAXIMUM PERFORMANCE 2 检查 archive_gap ，实际应该是74 到 75 ，不清楚为什么会显示 73 SQL> select thread#, low_sequence#, high_sequence# from v$archive_gap;    THREAD# LOW_SEQUENCE# HIGH_SEQUENCE# ---------- ------------- --------------  1       73      75 主库： SQL> select name from v$archived_log where thread#=1 and sequence# between 73 and 75; NAME -------------------------------------------------------------------------------- /arch/cjcpdb_arch_1_73_1030641846.arc /arch/cjcpdb_arch_1_74_1030641846.arc /arch/cjcpdb_arch_1_75_1030641846.arc 将73 归档文件拷贝到备库端 [oracle@cjcos01 arch]$ scp cjcpdb_arch_1_73_1030641846.arc cjcos02:/arch 主库在mount 状态下执行 flush redo 操作 SQL> ALTER SYSTEM FLUSH REDO TO chendb; ALTER SYSTEM FLUSH REDO TO chendb * ERROR at line 1: ORA-16416: No viable switchover targets available 备库：手动注册73 号归档，也显示归档已经注册了 SQL> alter database register logfile '/arch/cjcpdb_arch_1_73_1030641846.arc'; alter database register logfile '/arch/cjcpdb_arch_1_73_1030641846.arc' * ERROR at line 1: ORA-16089: archive log has already been registered 但是archive gap 还是显示有 73 SQL> select thread#, low_sequence#, high_sequence# from v$archive_gap;    THREAD# LOW_SEQUENCE# HIGH_SEQUENCE# ---------- ------------- --------------  1       73      75 主库：将74 号归档文件名改回来 [oracle@cjcos01 arch]$ mv cjcpdb_arch_1_74_1030641846.arc.bak cjcpdb_arch_1_74_1030641846.arc 再次执行flush redo SQL> ALTER SYSTEM FLUSH REDO TO chendb; ALTER SYSTEM FLUSH REDO TO chendb * ERROR at line 1: ORA-16416: No viable switchover targets available 查看主库日志，主库已经将74 归档发生备库端了，开始尝试读取 75 号归档文件。 如果flush redo 命令没生效，也可以将归档文件拷到备库端，手动执行注册 SQL> ALTER DATABASE REGISTER PHYSICAL LOGFILE 'filespec1'; 备库：只有1 个 75 号归档找不到了 SQL> select thread#, low_sequence#, high_sequence# from v$archive_gap;    THREAD# LOW_SEQUENCE# HIGH_SEQUENCE# ---------- ------------- --------------  1       75      75 备库：取消应用进程 SQL> ALTER DATABASE RECOVER MANAGED STANDBY DATABASE CANCEL; Database altered. 备库：由于存在archive gap ，是不允许常规的 failover SQL> ALTER DATABASE FAILOVER TO chendb; ALTER DATABASE FAILOVER TO chendb * ERROR at line 1: ORA-00283: recovery session canceled due to errors ORA-16171: RECOVER...FINISH not allowed due to gap for thr 1, seq 75-75 备库：加force 也不生效 SQL> ALTER DATABASE FAILOVER TO chendb force; ALTER DATABASE FAILOVER TO chendb force * ERROR at line 1: ORA-00283: recovery session canceled due to errors ORA-16171: RECOVER...FINISH not allowed due to gap for thr 1, seq 75-75 强制failover: 在存在 archive gap 情况下，强制执行 failover ，会丢失数据，正式环境谨慎使用！！！ Perform a data loss failover. If an error condition cannot be resolved, a failover can still be performed (with some data loss) by issuing the following SQL statement on the target standby database: SQL> ALTER DATABASE ACTIVATE PHYSICAL STANDBY DATABASE; 打开数据库 SQL>  ALTER DATABASE OPEN; 查看数据 SQL> select count(*) from test1;   COUNT(*) ----------     252780 test1 表丢失了 1000 000+1000- 252780 =748220 条数据。 欢迎关注我的微信公众号"IT小Chen"，共同学习，共同成长！！！
