Oracle 19C Data Guard基础运维-02 Switchovers(物理)

Oracle 19C Data Guard 基础运维 -02  S witchover s( 物理 )

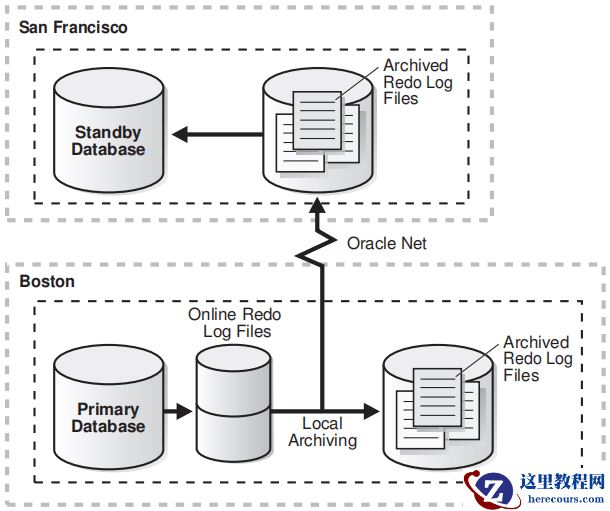

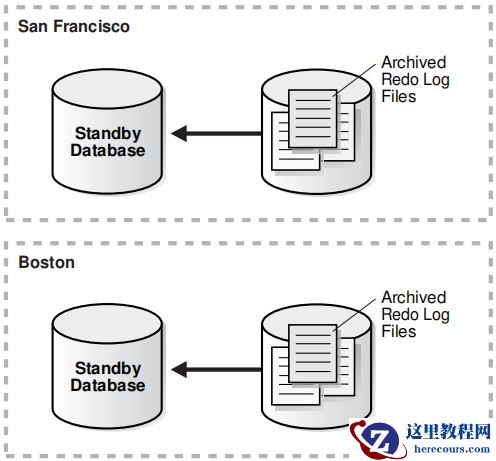

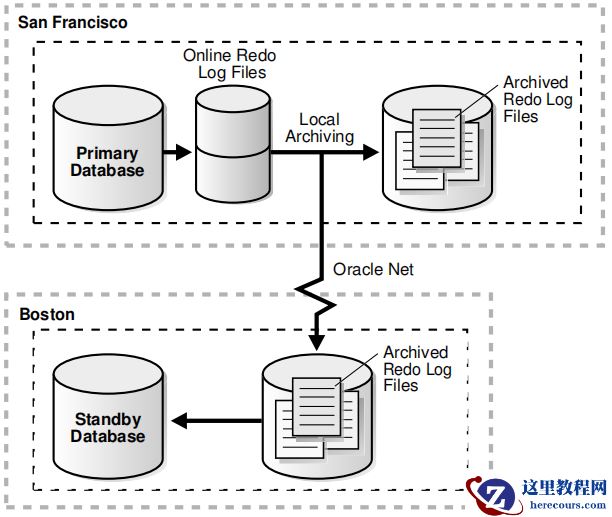

原理： https://docs.oracle.com/en/database/oracle/oracle-database/19/sbydb/data-guard-concepts-and-administration.pdf Figure 9-1 Oracle Data Guard Configuration Before Switchover  Figure 9-2 Standby Databases Before Switchover to the New Primary Database  Figure 9-3 Oracle Data Guard Environment After Switchover  Performing a Switchover to a Physical Standby Database 31.90 主库 SQL> select database_role,protection_level,protection_mode from v$database;   DATABASE_ROLE  PROTECTION_LEVEL     PROTECTION_MODE ---------------- -------------------- -------------------- PRIMARY  MAXIMUM PERFORMANCE  MAXIMUM PERFORMANCE 31.100 备库 SQL> select database_role,protection_level,protection_mode from v$database; DATABASE_ROLE  PROTECTION_LEVEL     PROTECTION_MODE ---------------- -------------------- -------------------- PHYSICAL STANDBY MAXIMUM PERFORMANCE  MAXIMUM PERFORMANCE 1. 验证目标备用数据库是否已准备好进行切换。 Verify that the target standby database is ready for switchover. 31.90 主库 SQL> select switchover_status from v$database; SWITCHOVER_STATUS -------------------- TO STANDBY 或 SQL> alter database switchover to chendb verify; Database altered 2. 在主数据库 CJCDB 上启动切换，方法是发出以下命令 Initiate the switchover on the primary database, CJCDB , by issuing the following 31.90 主库 SQL> alter database switchover to chendb; Database altered. 3. 在新的主数据库 chendb 上发出以下 SQL 语句以打开它。 Issue the following SQL statement on the new primary database, CHICAGO , to open it. SQL> alter database open;   4. 发出以下 SQL 语句以装载新的物理备用数据库 CJCDB ： Issue the following SQL statement to mount the new physical standby database, BOSTON : SQL>startup mount; 或者，如果 CJCDB 是Oracle Active Data Guard物理备用数据库，则发出以下SQL语句以只读方式打开它： Or, if BOSTON  is an Oracle Active Data Guard physical standby database, then issue the following SQL statement to open it read only: SQL> STARTUP; 5 . 在新的物理备用数据库 CJCDB 上启动Redo Apply 。例如： Start Redo Apply on the new physical standby database. For example: 3.90 新备库 SQL> ALTER DATABASE RECOVER MANAGED STANDBY DATABASE DISCONNECT FROM SESSION; SQL> select database_role,protection_level,protection_mode from v$database; DATABASE_ROLE  PROTECTION_LEVEL     PROTECTION_MODE ---------------- -------------------- -------------------- PHYSICAL STANDBY MAXIMUM PERFORMANCE  MAXIMUM PERFORMANCE 3.100 新主库 SQL> select database_role,protection_level,protection_mode from v$database; DATABASE_ROLE  PROTECTION_LEVEL     PROTECTION_MODE ---------------- -------------------- -------------------- PRIMARY  MAXIMUM PERFORMANCE  MAXIMUM PERFORMANCE 同步测试： 新主库chendb: SQL> create table test2 as select level as id from dual connect by level <=3; 新备库cjcpdb: SQL> select * from test2; ID ----------  1  2  3 欢迎关注我的微信公众号"IT小Chen"，共同学习，共同成长！！！
