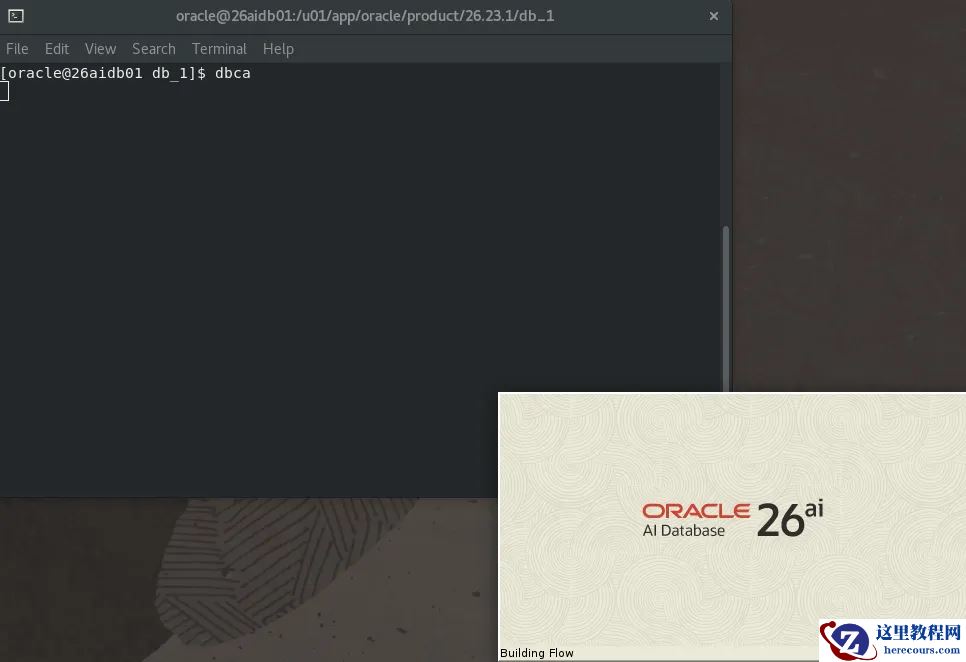

环境说明操作系统: Oracle Linux 8 (x86-64)Database: Oracle AI Database 26ai -Single InstanceInstall Type: Software Only建库方式：DBCA创建CDB和PDB

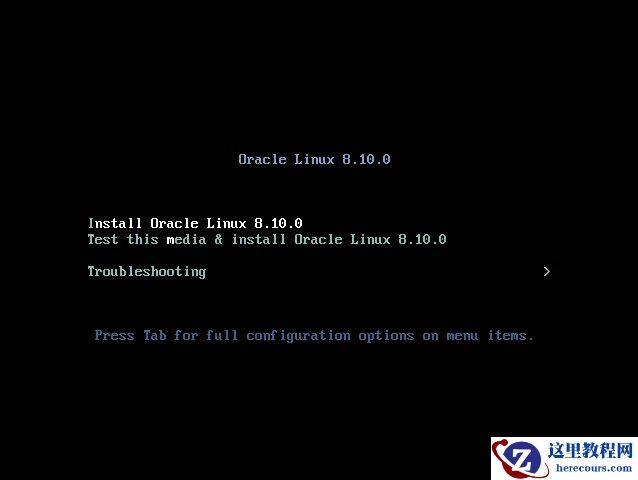

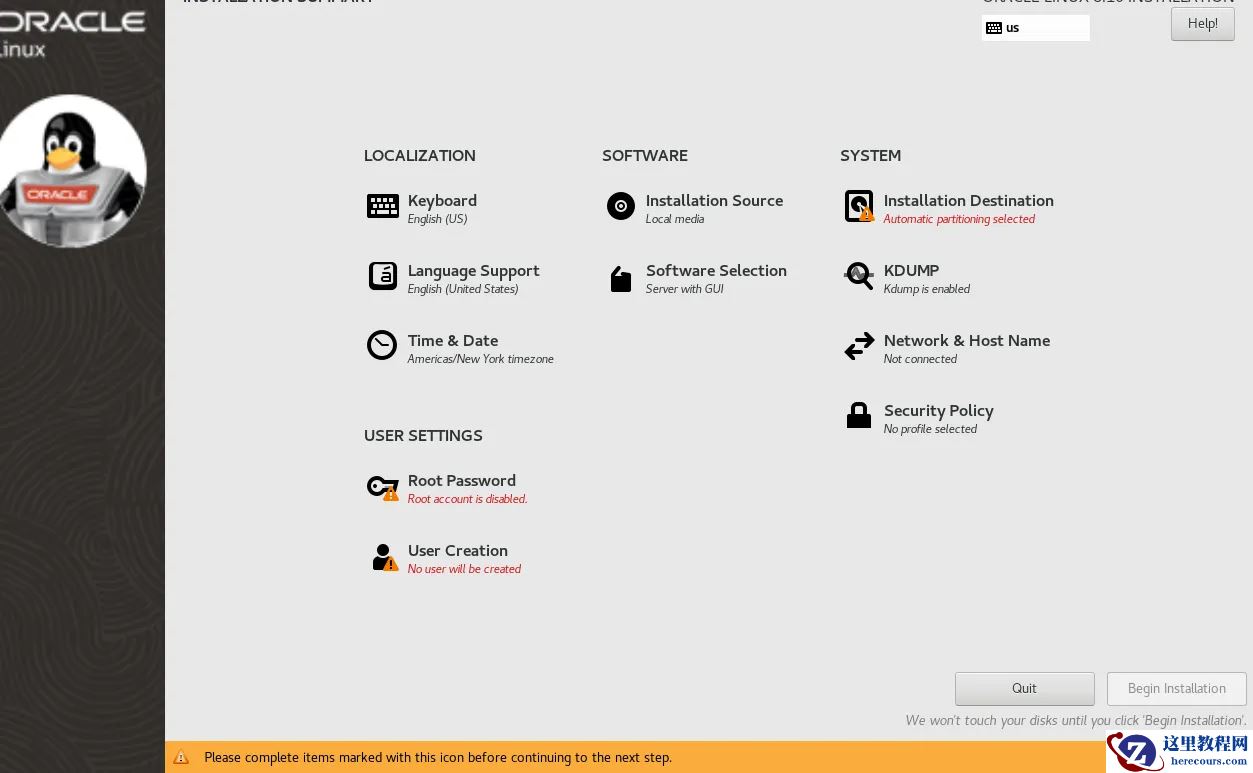

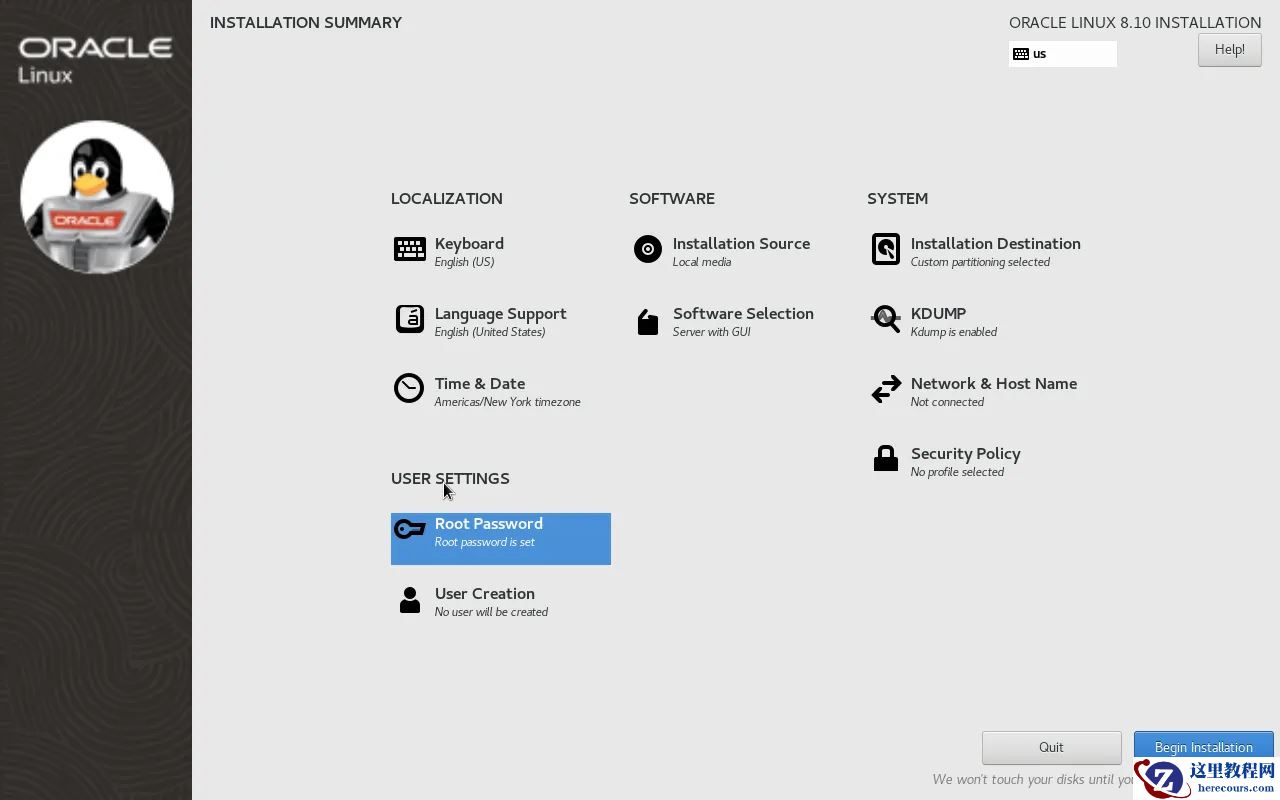

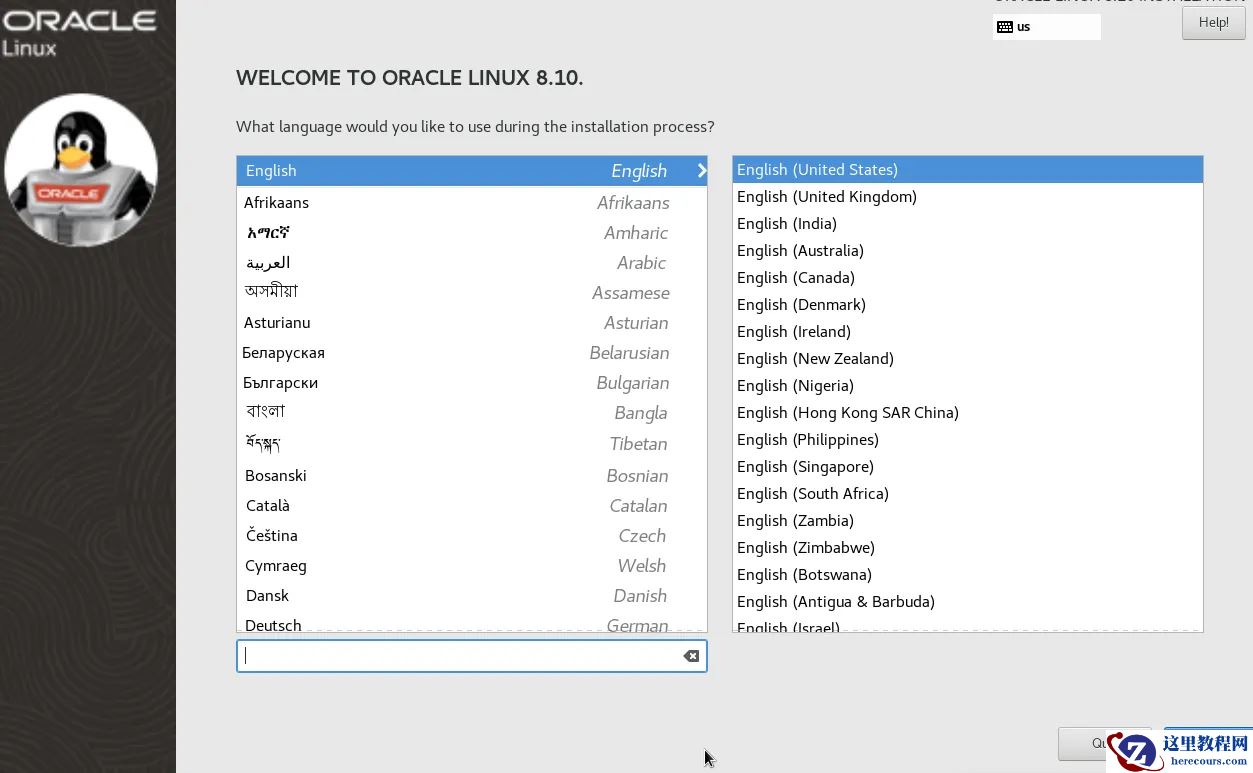

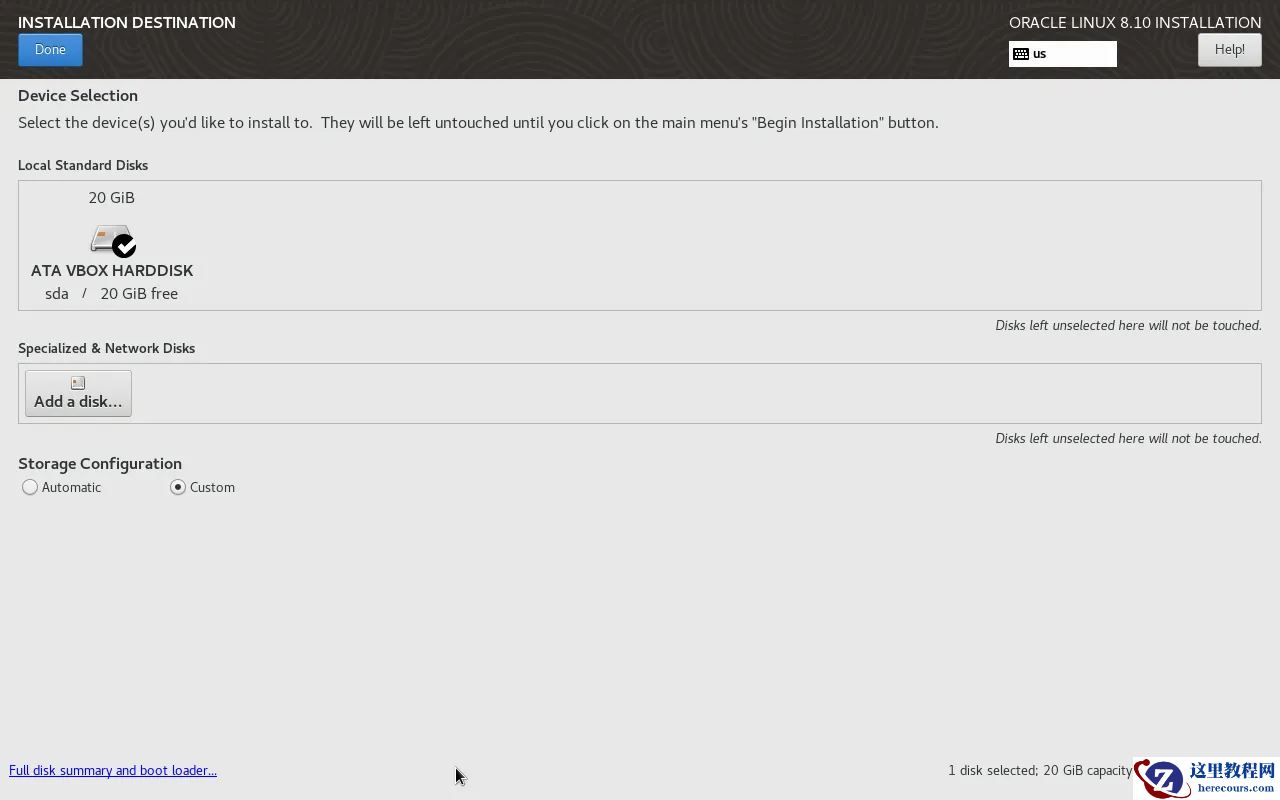

一、安装操作系统
二、环境配置
1、配置本地yum源
[root@26aidb01 etc]# cd /etc [root@26aidb01 etc]# mv yum.repos.d/ yum.repos.d_bak [root@26aidb01 etc]# mkdir yum.repos.d [root@26aidb01 etc]# vi yum.repos.d/local.repo [local] name=Local Repository baseurl=file:///mnt/BaseOS enabled=1 gpgcheck=0 [local-AppStream] name=Local Repository baseurl=file:///mnt/AppStream enabled=1 gpgcheck=0 [root@26aidb01 etc]# mount /dev/cdrom /mnt
2、安装oracle-database-preinstall包
[root@26aidb01 etc]# yum install -y oracle-database-preinstall* Last metadata expiration check: 0:05:14 ago on Thu 29 Jan 2026 01:23:29 AM EST. Dependencies resolved. ======================================================================================================================================================= Package Architecture Version Repository Size ======================================================================================================================================================= Installing: oracle-database-preinstall-21c x86_64 1.0-1.el8 local-AppStream 30 k Installing dependencies: compat-openssl10 x86_64 1:1.0.2o-4.el8_6 local-AppStream 1.1 M glibc-devel x86_64 2.28-251.0.2.el8 local 89 k ksh x86_64 20120801-267.0.1.el8 local-AppStream 923 k libnsl x86_64 2.28-251.0.2.el8 local 111 k libxcrypt-devel x86_64 4.1.1-6.el8 local 25 k lm_sensors-libs x86_64 3.4.0-23.20180522git70f7e08.el8 local 59 k make x86_64 1:4.2.1-11.el8 local 498 k sysstat x86_64 11.7.3-12.0.1.el8 local-AppStream 426 k Transaction Summary ======================================================================================================================================================= Install 9 Packages Total size: 3.2 M Installed size: 9.4 M Downloading Packages: Running transaction check Transaction check succeeded. Running transaction test Transaction test succeeded. Running transaction Preparing : 1/1 Installing : libxcrypt-devel-4.1.1-6.el8.x86_64 1/9 Installing : glibc-devel-2.28-251.0.2.el8.x86_64 2/9 Running scriptlet: glibc-devel-2.28-251.0.2.el8.x86_64 2/9 Installing : make-1:4.2.1-11.el8.x86_64 3/9 Running scriptlet: make-1:4.2.1-11.el8.x86_64 3/9 Installing : compat-openssl10-1:1.0.2o-4.el8_6.x86_64 4/9 Running scriptlet: compat-openssl10-1:1.0.2o-4.el8_6.x86_64 4/9 Installing : ksh-20120801-267.0.1.el8.x86_64 5/9 Running scriptlet: ksh-20120801-267.0.1.el8.x86_64 5/9 Installing : lm_sensors-libs-3.4.0-23.20180522git70f7e08.el8.x86_64 6/9 Running scriptlet: lm_sensors-libs-3.4.0-23.20180522git70f7e08.el8.x86_64 6/9 Installing : sysstat-11.7.3-12.0.1.el8.x86_64 7/9 Running scriptlet: sysstat-11.7.3-12.0.1.el8.x86_64 7/9 Installing : libnsl-2.28-251.0.2.el8.x86_64 8/9 Installing : oracle-database-preinstall-21c-1.0-1.el8.x86_64 9/9 Running scriptlet: oracle-database-preinstall-21c-1.0-1.el8.x86_64 9/9 Verifying : glibc-devel-2.28-251.0.2.el8.x86_64 1/9 Verifying : libnsl-2.28-251.0.2.el8.x86_64 2/9 Verifying : libxcrypt-devel-4.1.1-6.el8.x86_64 3/9 Verifying : lm_sensors-libs-3.4.0-23.20180522git70f7e08.el8.x86_64 4/9 Verifying : make-1:4.2.1-11.el8.x86_64 5/9 Verifying : compat-openssl10-1:1.0.2o-4.el8_6.x86_64 6/9 Verifying : ksh-20120801-267.0.1.el8.x86_64 7/9 Verifying : oracle-database-preinstall-21c-1.0-1.el8.x86_64 8/9 Verifying : sysstat-11.7.3-12.0.1.el8.x86_64 9/9 Installed: compat-openssl10-1:1.0.2o-4.el8_6.x86_64 glibc-devel-2.28-251.0.2.el8.x86_64 ksh-20120801-267.0.1.el8.x86_64 libnsl-2.28-251.0.2.el8.x86_64 libxcrypt-devel-4.1.1-6.el8.x86_64 lm_sensors-libs-3.4.0-23.20180522git70f7e08.el8.x86_64 make-1:4.2.1-11.el8.x86_64 oracle-database-preinstall-21c-1.0-1.el8.x86_64 sysstat-11.7.3-12.0.1.el8.x86_64 Complete! [root@26aidb01 etc]# 安装成功后oracle用户已创建成功，安装Oracle所需要的依赖包也已安装。 [root@26aidb01 etc]# id oracle uid=54321(oracle) gid=54321(oinstall) groups=54321(oinstall),54322(dba),54323(oper),54324(backupdba),54325(dgdba),54326(kmdba),54330(racdba) [root@26aidb01 etc]# 3、创建目录并修改权限和属组 [root@26aidb01 ]#mkdir -p /u01/app/oracle/product/26.23.1/db_1 [root@26aidb01 ]#chown -R oracle:oinstall /u01/app/oracle [root@26aidb01 ]#chmod -R 775 /u01/ 4、配置环境变量 export PATH export ORACLE_BASE=/u01/app/oracle export ORACLE_HOME=/u01/app/oracle/product/26.23.1/db_1 export JAVA_HOME=/u01/app/oracle/product/26.23.1/db_1/OPatch/jre export PATH=$PATH:$JAVA_HOME/bin:$ORACLE_HOME/bin:$ORACLE_HOME/OPatch export CLASSPATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar umask 022 export ORACLE_SID=26aidb stty erase ^H

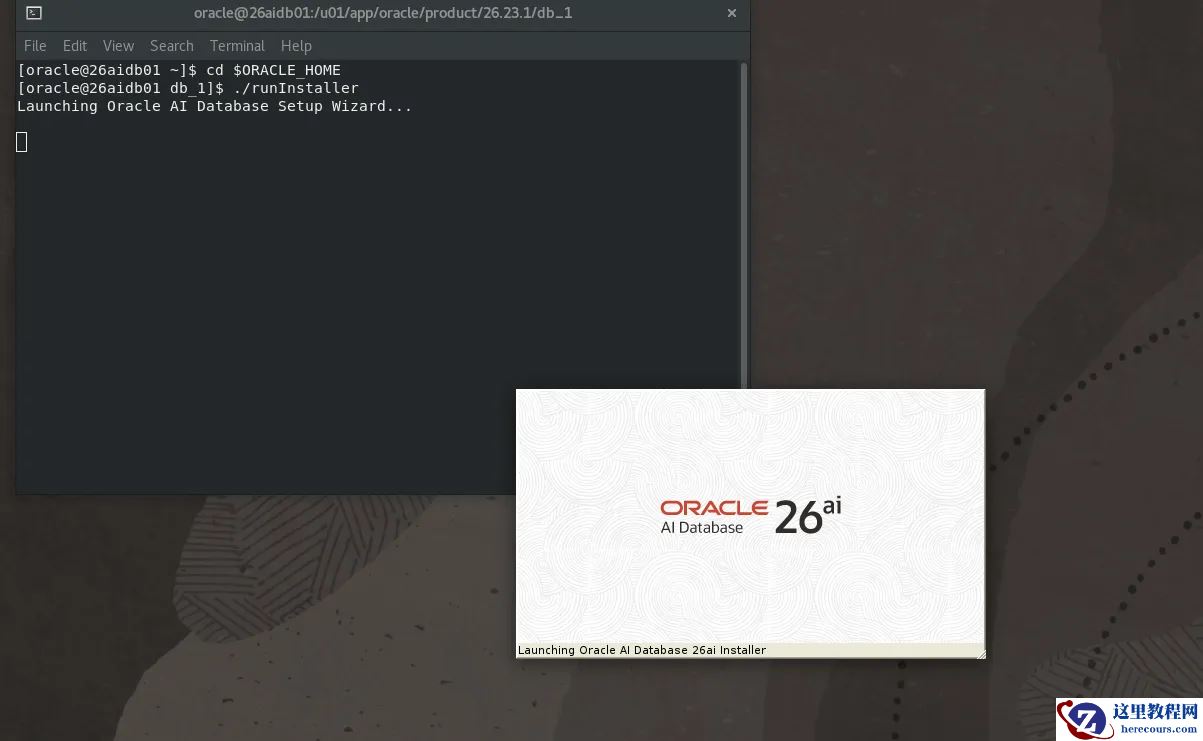

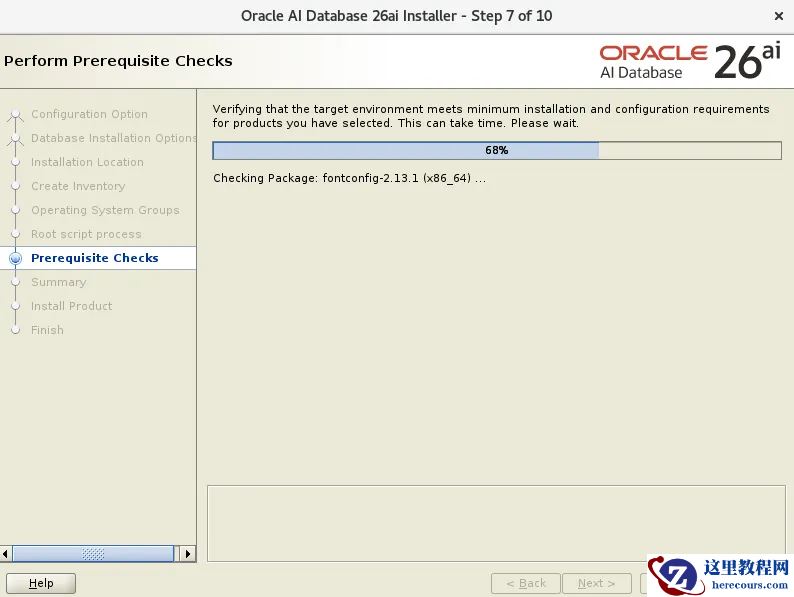

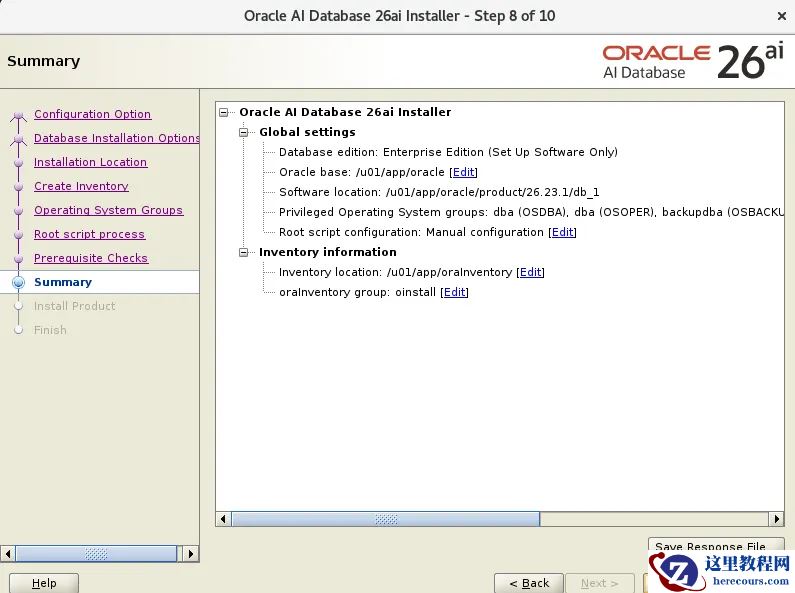

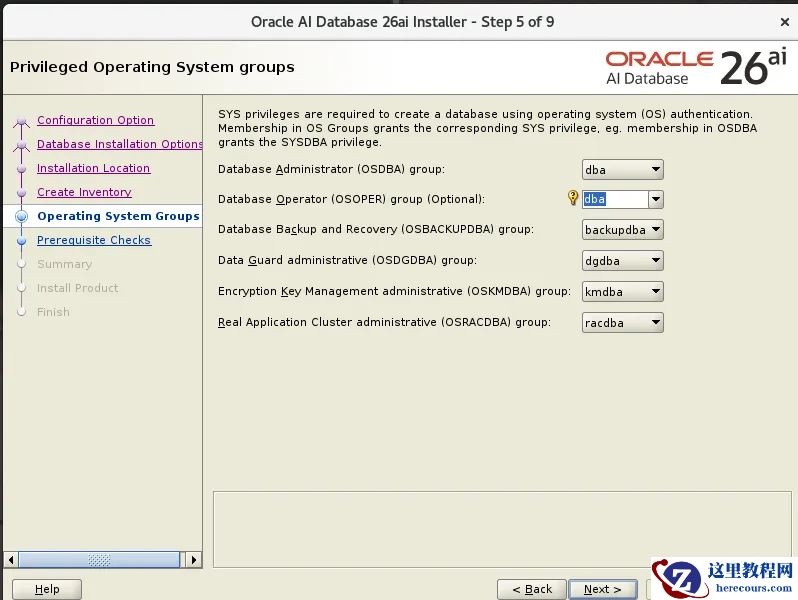

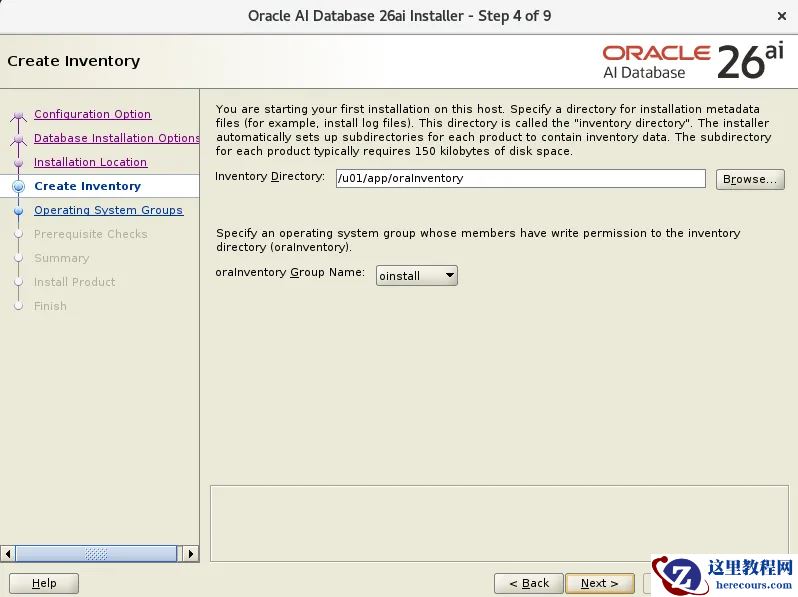

[oracle@26aidb01 ~]$ cd $ORACLE_HOME [oracle@26aidb01 db_1]$ ./runInstaller

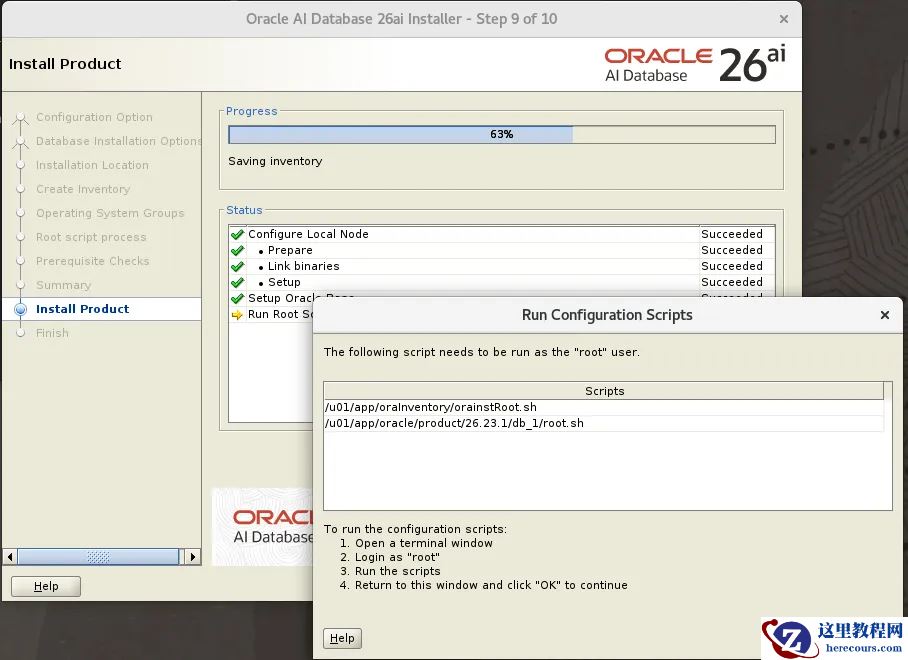

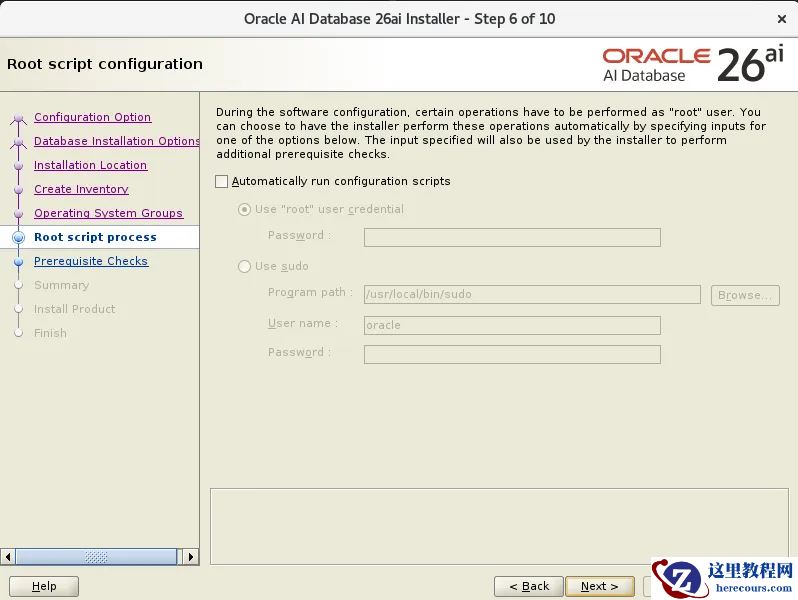

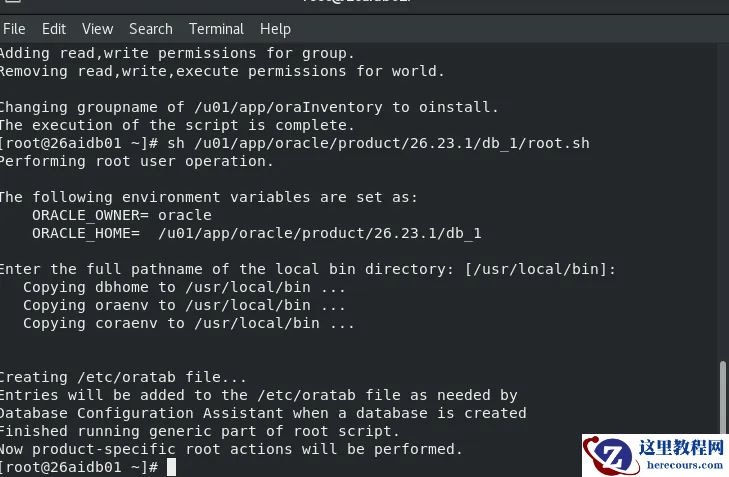

以root用户执行上面界面中的2个脚本
脚本执行完成。

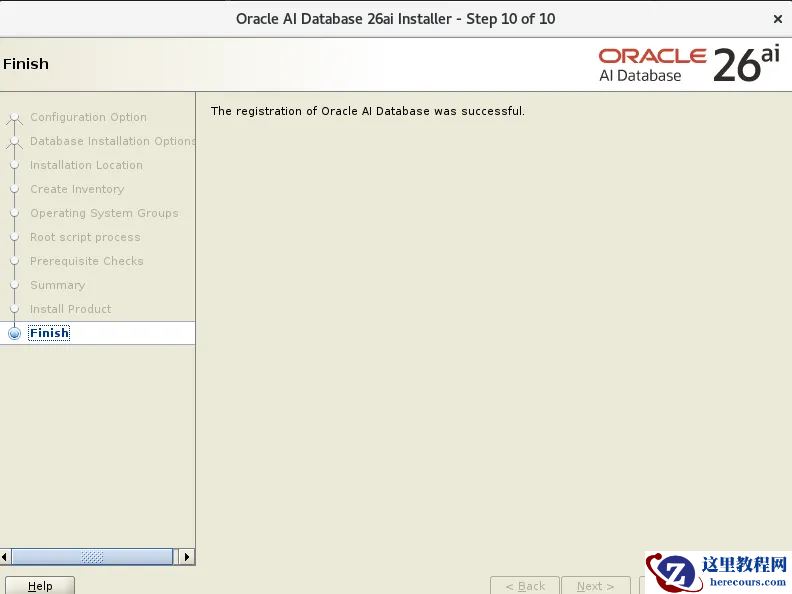

软件成功安装。

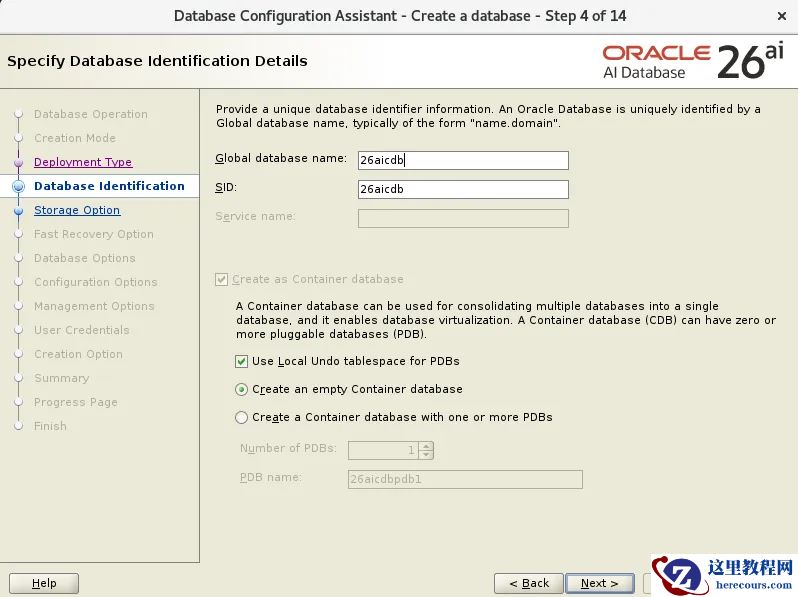

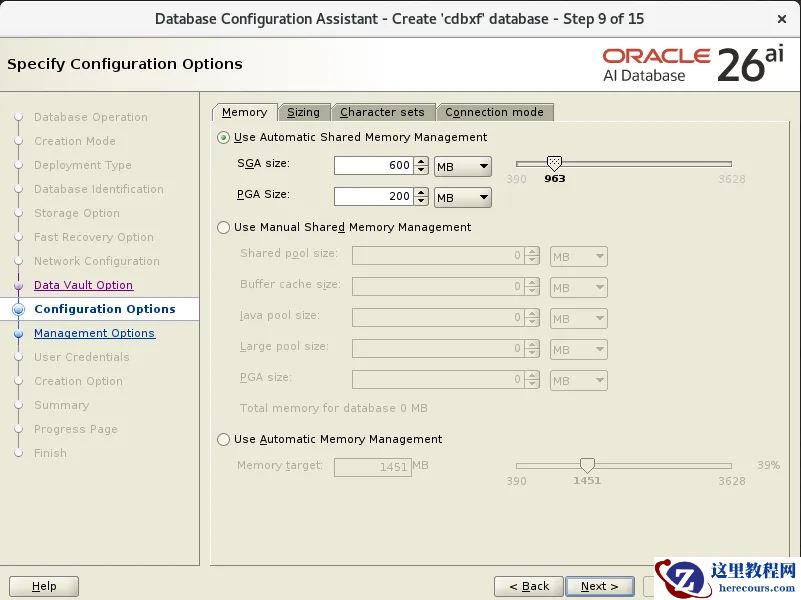

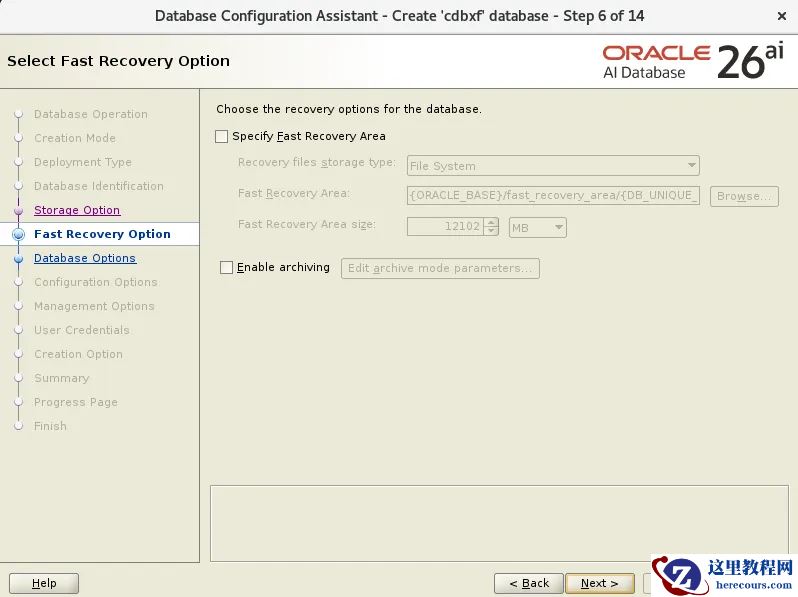

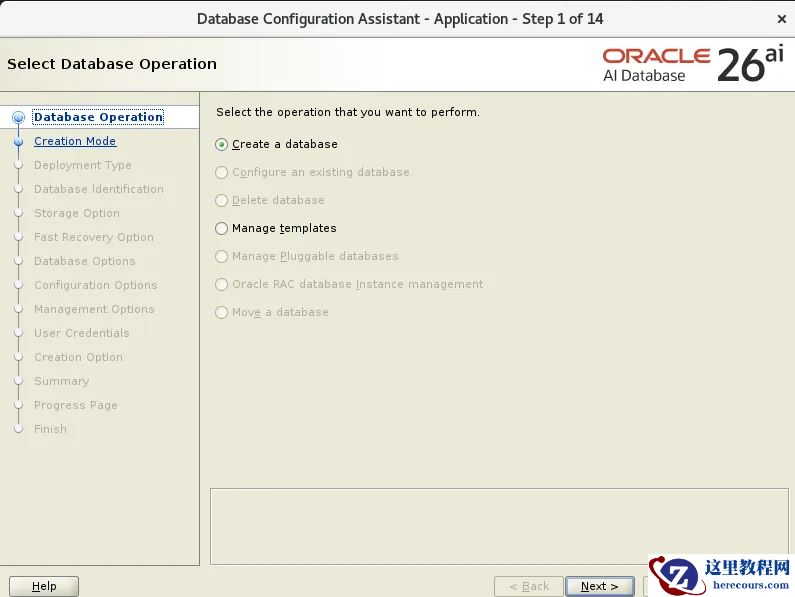

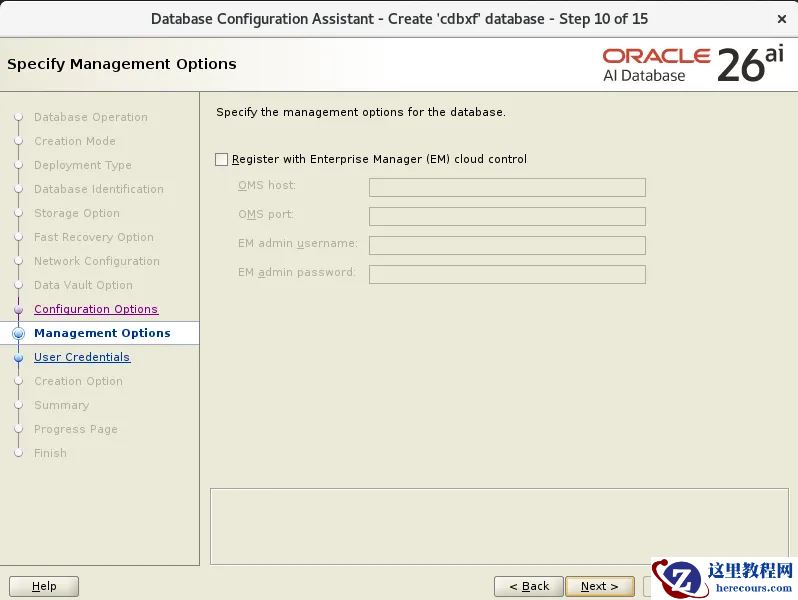

说明：26aicdb是关键字不能做为CDB的名称

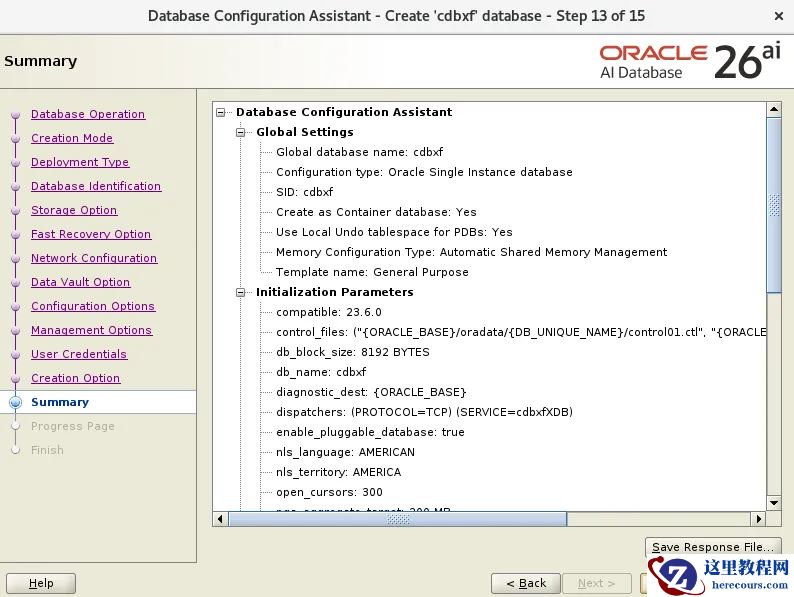

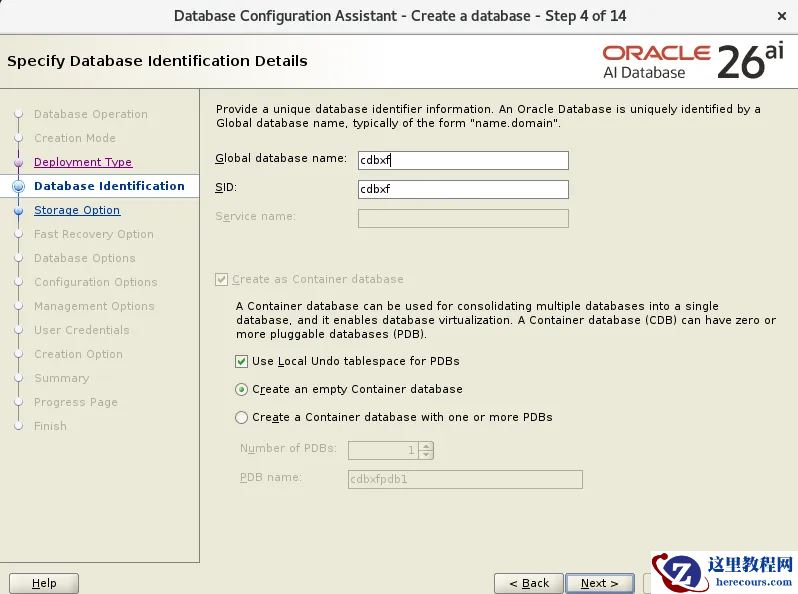

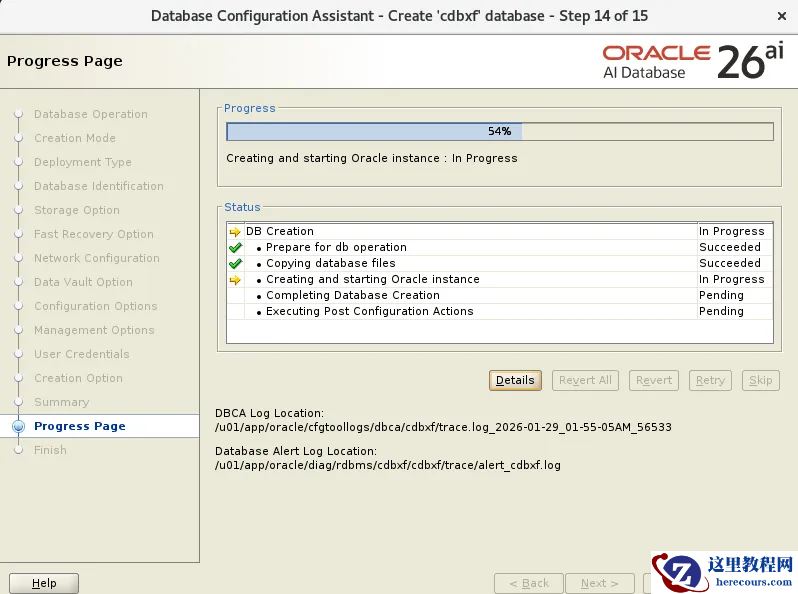

CDB名称更换为cdbxf

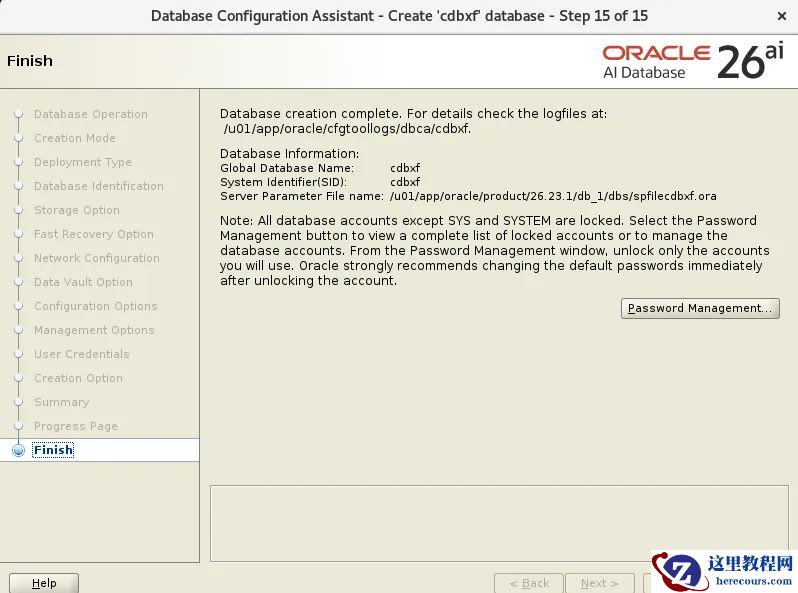

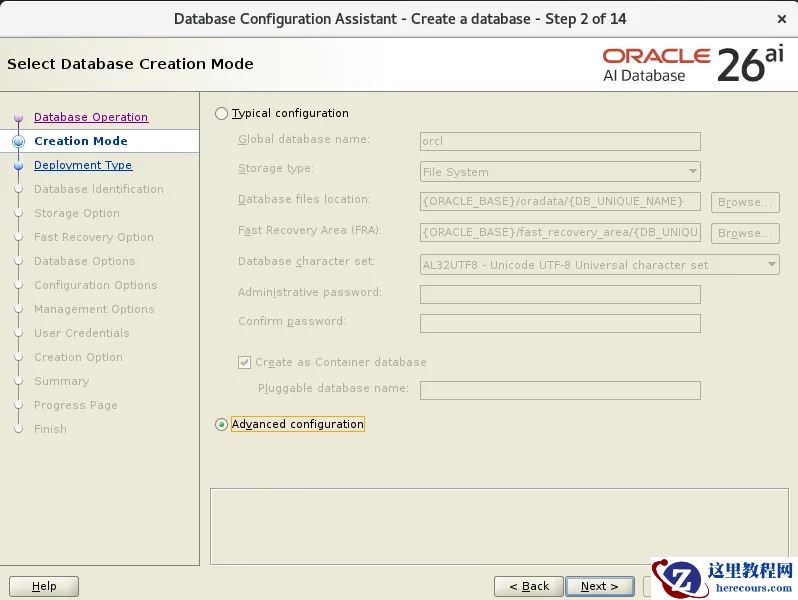

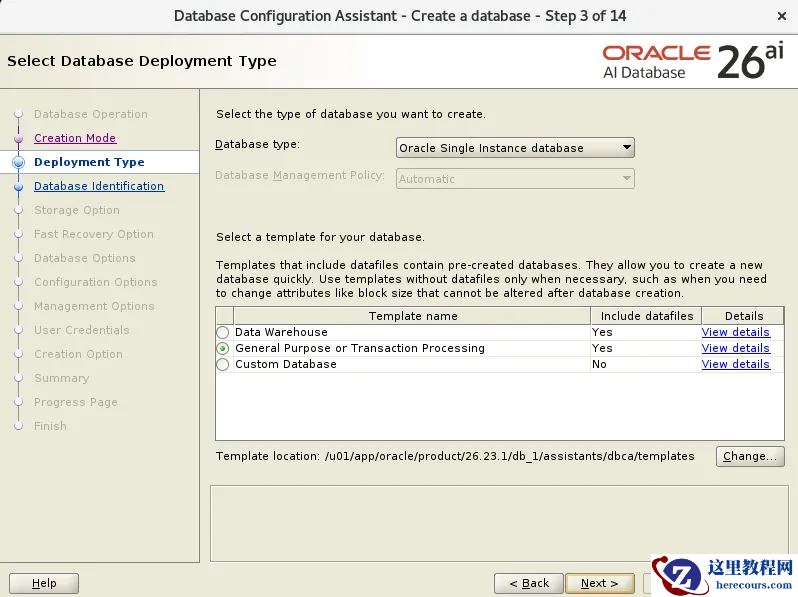

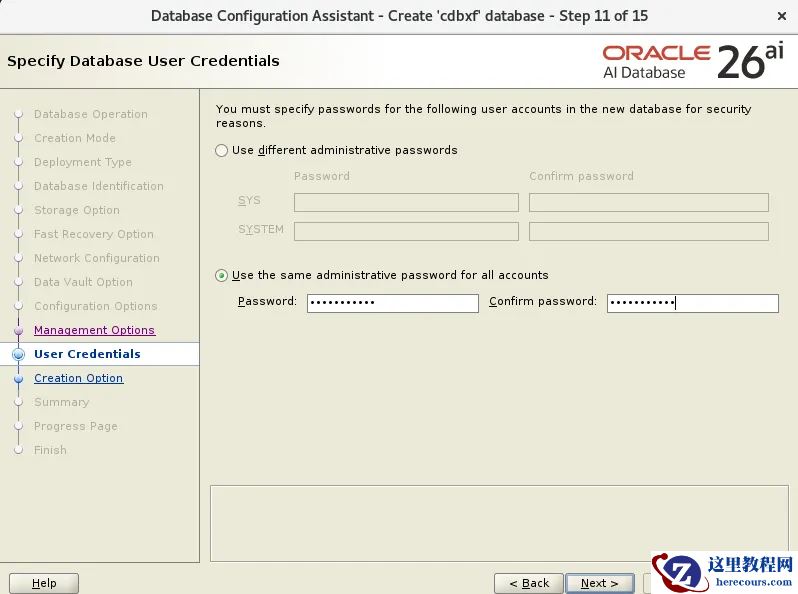

CDB创建完成。[oracle@26aidb01 ~]$ ps -ef|grep smon oracle 59296 44340 0 02:10 ? 00:00:00 ora_smon_cdbxf oracle 59791 59753 0 02:12 pts/0 00:00:00 grep --color=auto smon [oracle@26aidb01 ~]$ sqlplus / as sysdba SQL*Plus: Release 23.26.1.0.0 - Production on Thu Jan 29 02:12:55 2026 Version 23.26.1.0.0 Copyright (c) 1982, 2025, Oracle. All rights reserved. Connected to: Oracle AI Database 26ai Enterprise Edition Release 23.26.1.0.0 - Production Version 23.26.1.0.0 SQL> show pdbs CON_ID CON_NAME OPEN MODE RESTRICTED ---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO SQL> show con_name con_id CON_NAME ------------------------------ CDB$ROOT CON_ID ------------------------------ 1 SQL>

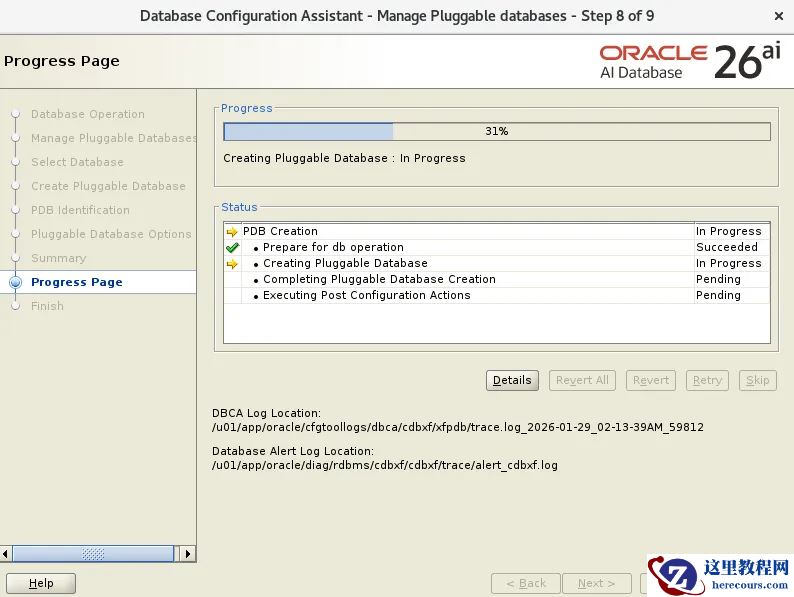

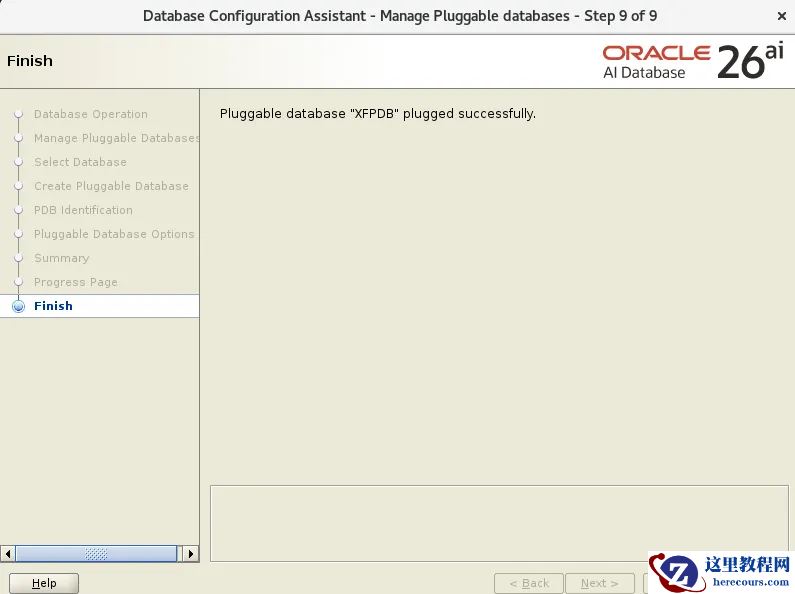

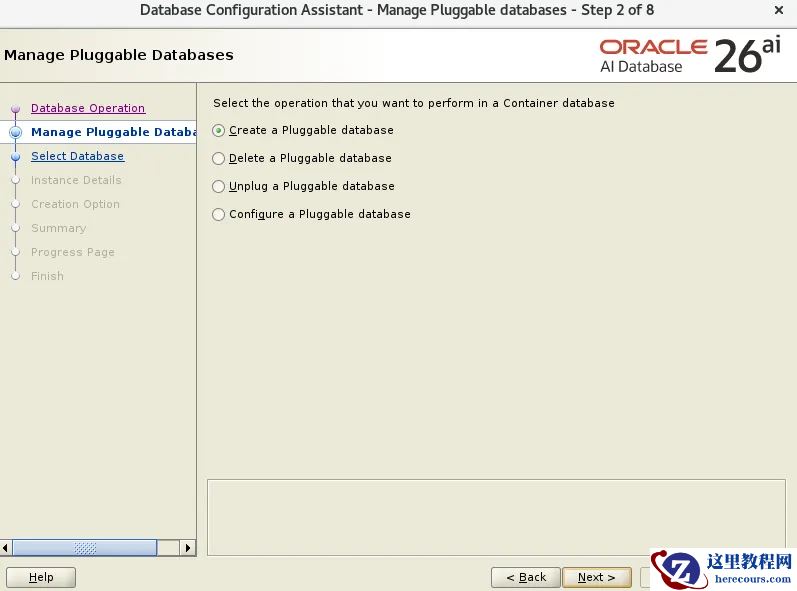

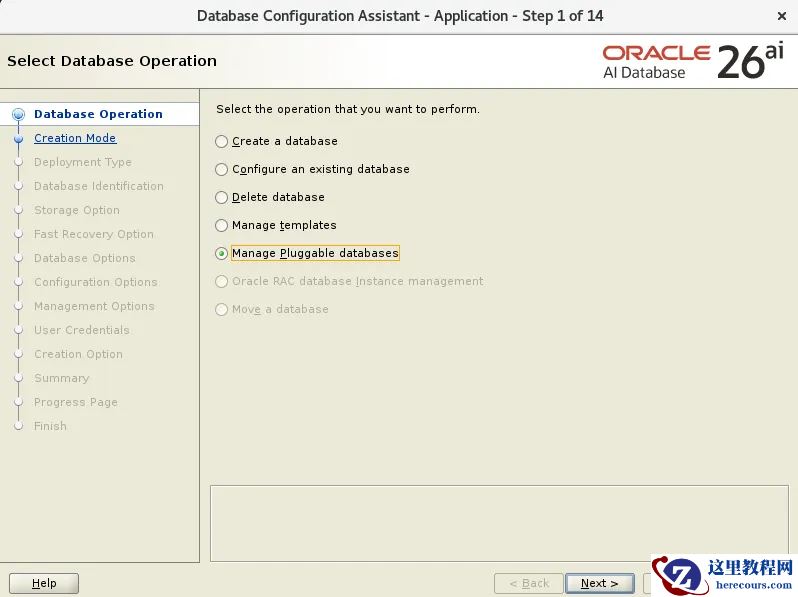

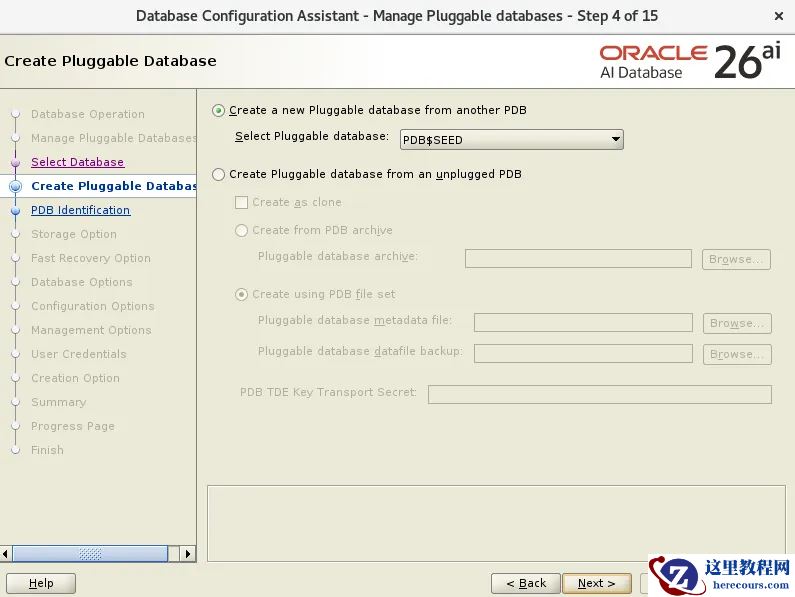

2、使用dbca创建PDB
SQL> show pdbs CON_ID CON_NAME OPEN MODE RESTRICTED ---------- ------------------------------ ---------- ---------- 2 PDB$SEED READ ONLY NO 3 XFPDB READ WRITE NO SQL>

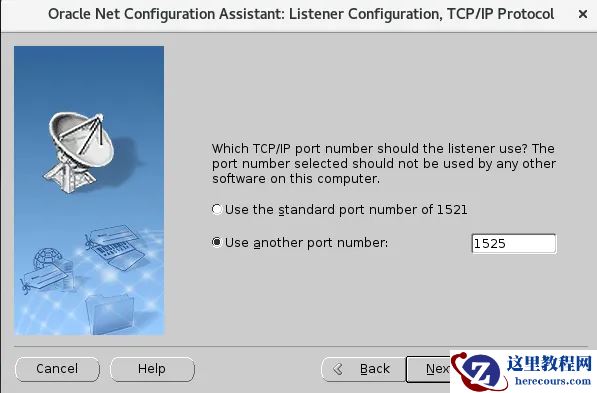

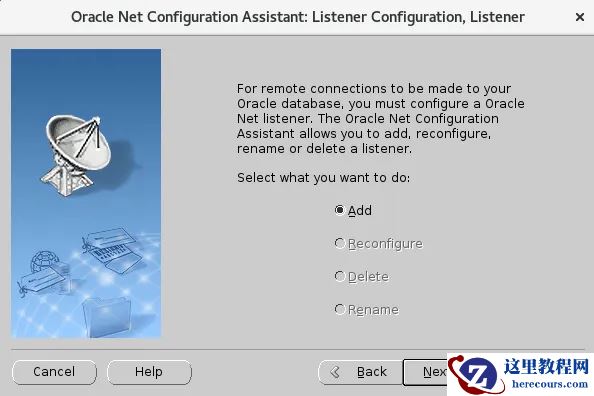

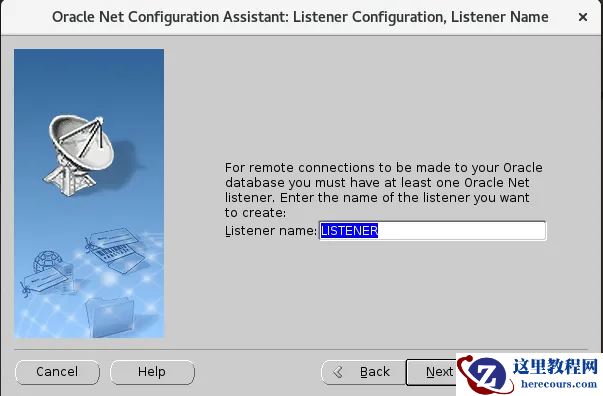

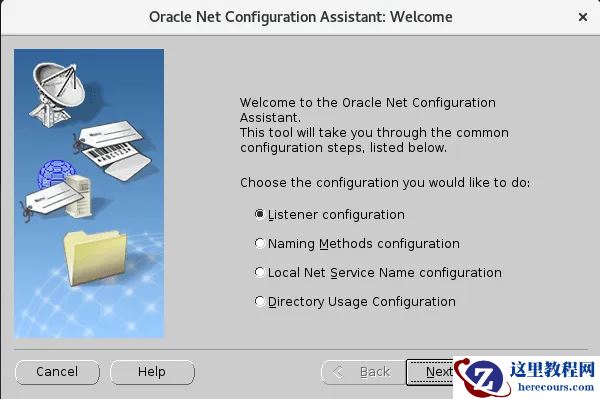

3、使用netca创建监听
检查监听状态
[oracle@26aidb01 ~]$ lsnrctl status
LSNRCTL for Linux: Version 23.26.1.0.0 - Production on 29-JAN-2026 02:23:00
Copyright (c) 1991, 2026, Oracle. All rights reserved.
Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=26aidb01)(PORT=1525)))
STATUS of the LISTENER
------------------------
Alias LISTENER
Version TNSLSNR for Linux: Version 23.26.1.0.0 - Production
Start Date 29-JAN-2026 02:19:16
Uptime 0 days 0 hr. 3 min. 44 sec
Trace Level off
Security ON: Local OS Authentication
SNMP OFF
Listener Parameter File /u01/app/oracle/product/26.23.1/db_1/network/admin/listener.ora
Listener Log File /u01/app/oracle/diag/tnslsnr/26aidb01/listener/alert/log.xml
Listening Endpoints Summary...
(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=26aidb01)(PORT=1525)))
(DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1525)))
Services Summary...
Service "48945b67d121c623e063399b5e6478e6" has 1 instance(s).
Instance "cdbxf", status READY, has 1 handler(s) for this service...
Service "4982a3bcc60deb79e0637438a8c06483" has 1 instance(s).
Instance "cdbxf", status READY, has 1 handler(s) for this service...
Service "cdbxf" has 1 instance(s).
Instance "cdbxf", status READY, has 1 handler(s) for this service...
Service "cdbxfXDB" has 1 instance(s).
Instance "cdbxf", status READY, has 1 handler(s) for this service...
Service "xfpdb" has 1 instance(s).
Instance "cdbxf", status READY, has 1 handler(s) for this service...
The command completed successfully
[oracle@26aidb01 ~]$
